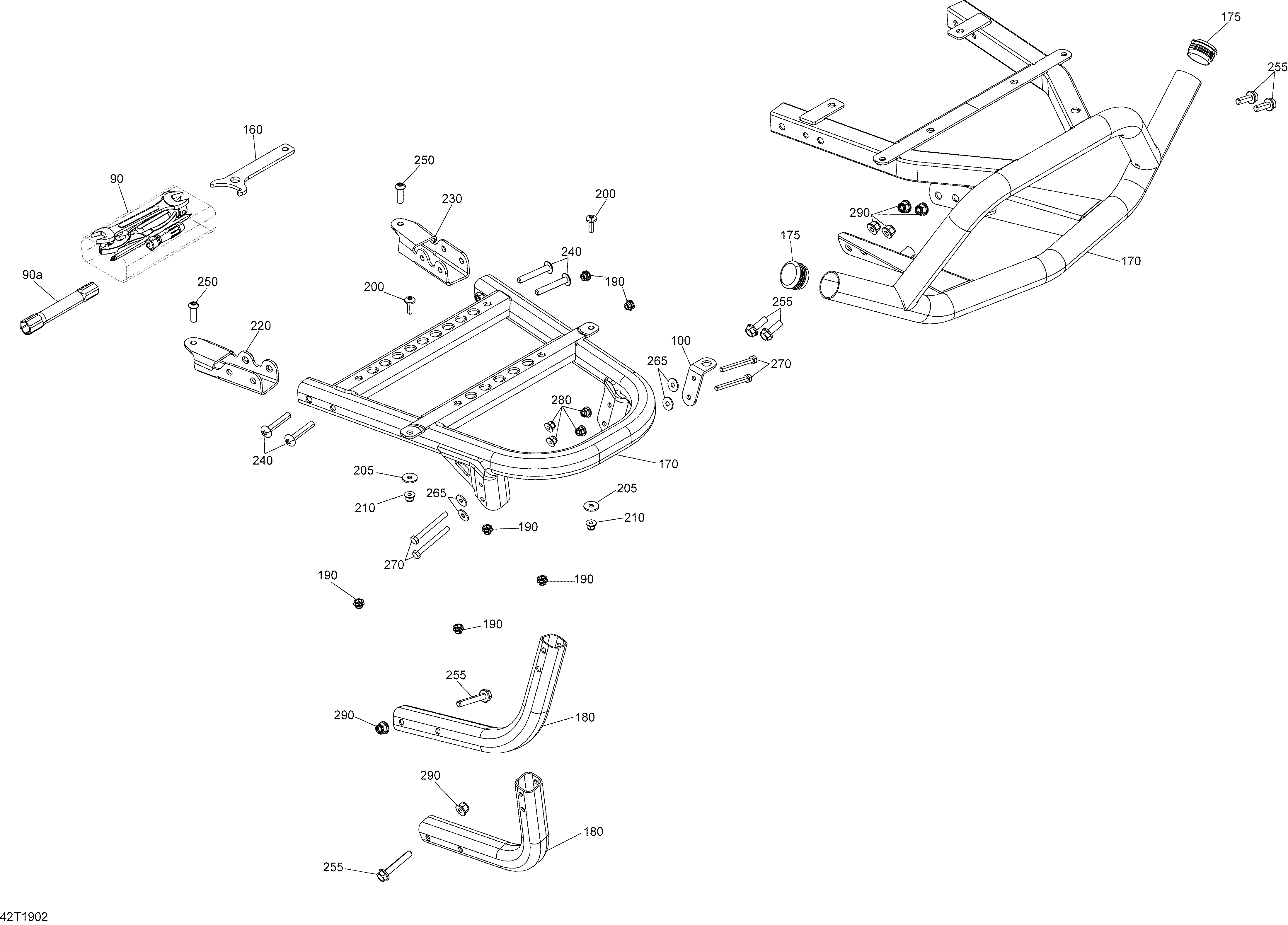

09- Rear Cargo Box - 1000R EFI для BRP 003 - Renegade 1000R EFI - North America - 2019
-
№АртикулНазвание
-
90704700168 Tool Kit. Includes 90 to 90aTool Kit. Includes 90 to 90a
-
90A529000085 Socket Wrench 14/16MMSocket Wrench 14/16MM
-
100705005837 Flag Support. Package STDFlag Support. Package STD
-
100705005837 Flag Support. Package XXC - Deep BlackFlag Support. Package XXC - Deep Black
-
100705011387 Flag Support. Package XXC - Timeless Black. Includes 100 to 100aFlag Support. Package XXC - Timeless Black. Includes 100 to 100a
-
100a705005837 Flag Support. Package XXC - Timeless BlackFlag Support. Package XXC - Timeless Black
-
170715004150 Rear Bumper Kit. Package STDRear Bumper Kit. Package STD
-
170715004683 Paint Sunburst Yellow Rear Bumper Kit. Package XMR - Carbon BlackPaint Sunburst Yellow Rear Bumper Kit. Package XMR - Carbon Black
-
170715004157 Paint Red Can-Am Rear Bumper Kit. Package XMR - Liquid GoldPaint Red Can-Am Rear Bumper Kit. Package XMR - Liquid Gold
-
170715004150 Rear Bumper Kit. Package XXC - Deep BlackRear Bumper Kit. Package XXC - Deep Black
-
170715004154 Paint Black Rear Bumper Kit. Package XXC - Timeless BlackPaint Black Rear Bumper Kit. Package XXC - Timeless Black
-
175705202455 Cap. Package XMRCap. Package XMR
-
180705004981 Rear Tube. Package XXC - Deep BlackRear Tube. Package XXC - Deep Black
-
180705004981 Rear Tube. Package STDRear Tube. Package STD
-
180705011053 Rear Tube. Package XXC - Timeless Black. Includes 180 to 180aRear Tube. Package XXC - Timeless Black. Includes 180 to 180a
-
180a705004981 Rear Tube. Package XXC - Timeless BlackRear Tube. Package XXC - Timeless Black
-
190250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
200250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
205224061201 Flat WasherFlat Washer
-
210233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
220705004977 LH Front BracketLH Front Bracket
-
230705004978 RH Front BracketRH Front Bracket
-
240250000844 Torx Screw M8 X 50 S.GRIPTorx Screw M8 X 50 S.GRIP
-
250250000757 Screw-Torx Button Head M8 X 25 S.GrScrew-Torx Button Head M8 X 25 S.Gr
-
255207685044 Hex. Flanged Screw M8 X 50Hex. Flanged Screw M8 X 50
-
265234062410 Flat Washer 6 mm. Package XXC - Deep BlackFlat Washer 6 mm. Package XXC - Deep Black
-
265234062670 Flat Washer, Stainless. Package XXC - Timeless BlackFlat Washer, Stainless. Package XXC - Timeless Black
-
265234062410 Flat Washer 6 mm. Package STDFlat Washer 6 mm. Package STD
-
270207066044 Hex. Screw M6 X 60. Package XXC - Deep BlackHex. Screw M6 X 60. Package XXC - Deep Black
-
270250000778 Screw-Hex.Flange M6 X 60. Package XXC - Timeless BlackScrew-Hex.Flange M6 X 60. Package XXC - Timeless Black
-
270207066044 Hex. Screw M6 X 60. Package STDHex. Screw M6 X 60. Package STD
-
280233261414 Hex. Flanged Elastic Nut M6 x 1.0. Package XXC - Deep BlackHex. Flanged Elastic Nut M6 x 1.0. Package XXC - Deep Black
-
280233261494 Hex. Elastic Flanged Nut M6. Package XXC - Timeless BlackHex. Elastic Flanged Nut M6. Package XXC - Timeless Black
-
280233261414 Hex. Flanged Elastic Nut M6 x 1.0. Package STDHex. Flanged Elastic Nut M6 x 1.0. Package STD
-
290233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
290233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
