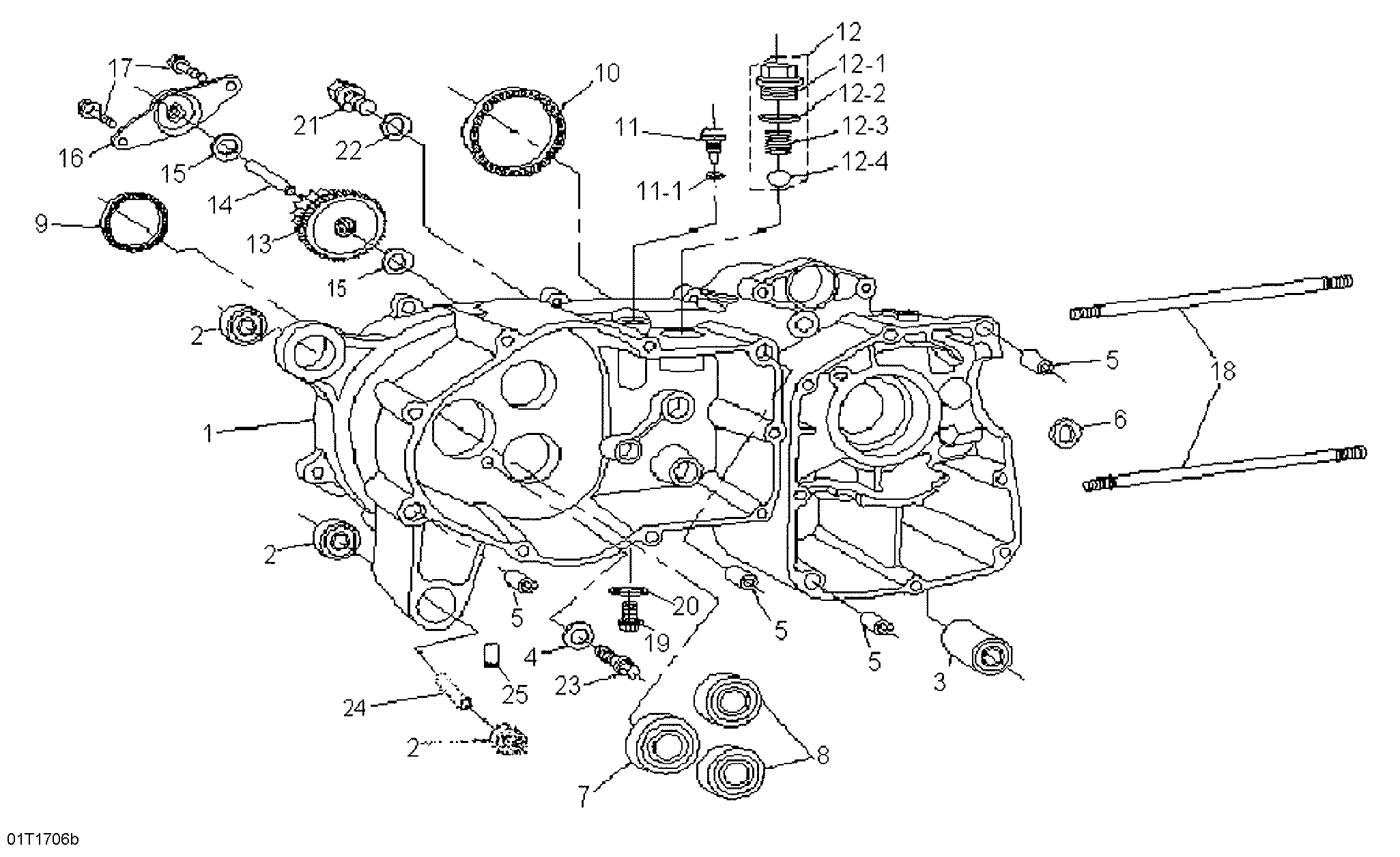

01- Crankcase, Left для BRP 3- DS 90 X - 2019
-
№АртикулНазвание
-
1V11200CJF040LL LH CrankcaseLH Crankcase
-
2V112034DM000 Rubber BushingRubber Bushing
-
3V11103CJF010 Rubber BushingRubber Bushing
-
4A941010618010 Plain Washer, 6 X 18 X 1Plain Washer, 6 X 18 X 1
-
5A9430110140 Dowel PinDowel Pin
-
6V91302CJF020 O-RingO-Ring
-
7A9610060030 Radial Ball Bearing, 6003Radial Ball Bearing, 6003
-
8V961006201310 Ball BearingBall Bearing
-
9V912034DM000 O-RingO-Ring
-
10V91202CJF000 O-RingO-Ring
-
11V156514DM00 Oil Level GaugeOil Level Gauge
-
12V213154DM000 Gear Fixed Ass'yGear Fixed Ass'y
-
13V28100CJF000 Idle Gear Ass'yIdle Gear Ass'y
-
14V28102CJF000 Shaft Idle GearShaft Idle Gear
-
15V941011016010 Washer FlatWasher Flat
-
16V28105CJF000 Plate Idle GearPlate Idle Gear
-
17A9600006010 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
18V9100106196 Stud Bolt M6 X 196 DS70Stud Bolt M6 X 196 DS70
-
19V928000801212M Hex. Flanged Screw, MagneticHex. Flanged Screw, Magnetic
-
20A941010816020 Washer PlainWasher Plain
-
21V9602812016LL Hexagonal Flange BoltHexagonal Flange Bolt
-
22V941011220020 Washer FlatWasher Flat
-
23V9600006008 Hexagonal Flanged ScrewHexagonal Flanged Screw
-
24V44135CJF000 SpacerSpacer
-
25V17687DGF000 Drain TubeDrain Tube
