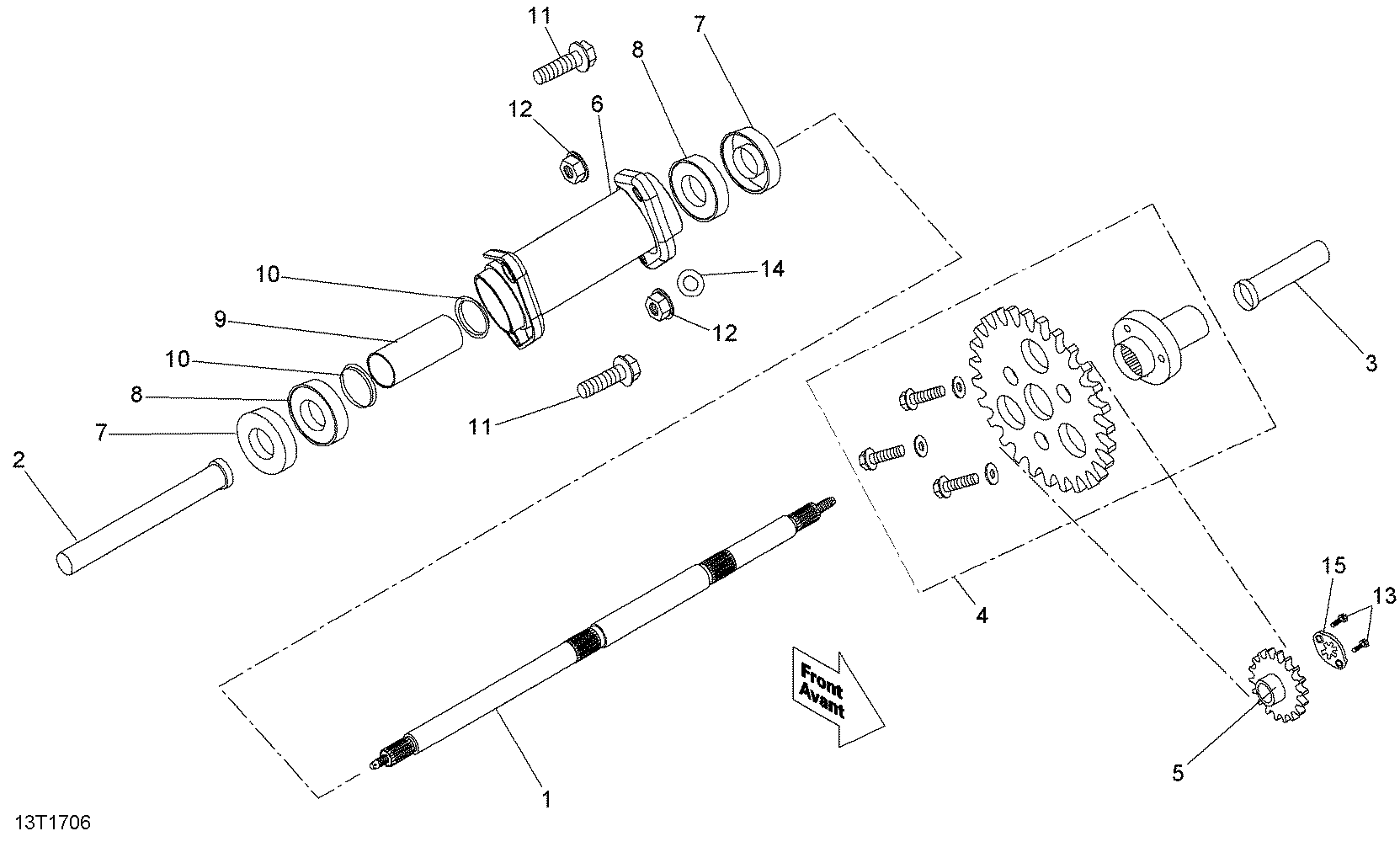

08- Drive System, Rear для BRP 3- DS 90 X - 2019
-
№АртикулНазвание
-
1V23511DGF06H Rear Wheel AxleRear Wheel Axle
-
2V44150DGF05HLL Spacer Collar 19.6CMSpacer Collar 19.6CM
-
3V44160DGF04HLL Spacer Collar 24.7CMSpacer Collar 24.7CM
-
4V15239DGF00HLL Cam Chain Sprocket 40TCam Chain Sprocket 40T
-
5V15237DGF010 Cam Chain Sprocket 16TCam Chain Sprocket 16T
-
6V52350MAA100BK Rear Wheel Axle Seat Ass'yRear Wheel Axle Seat Ass'y
-
7V91203MAA000 Oil SealOil Seal
-
8A961006006ZZ Radial Ball Bearing, 6006ZZRadial Ball Bearing, 6006ZZ
-
9V45620MAA000 Spacer TubeSpacer Tube
-
10V51312MAA010 SpacerSpacer
-
11V960001202801LL Hexagonal Flanged BoltHexagonal Flanged Bolt
-
12A9035012000 Hexagonal Nut M12Hexagonal Nut M12
-
13V9200006010 ScrewScrew
-
14V941011326020 WasherWasher
-
15V128114DM00 Fixing PlateFixing Plate
