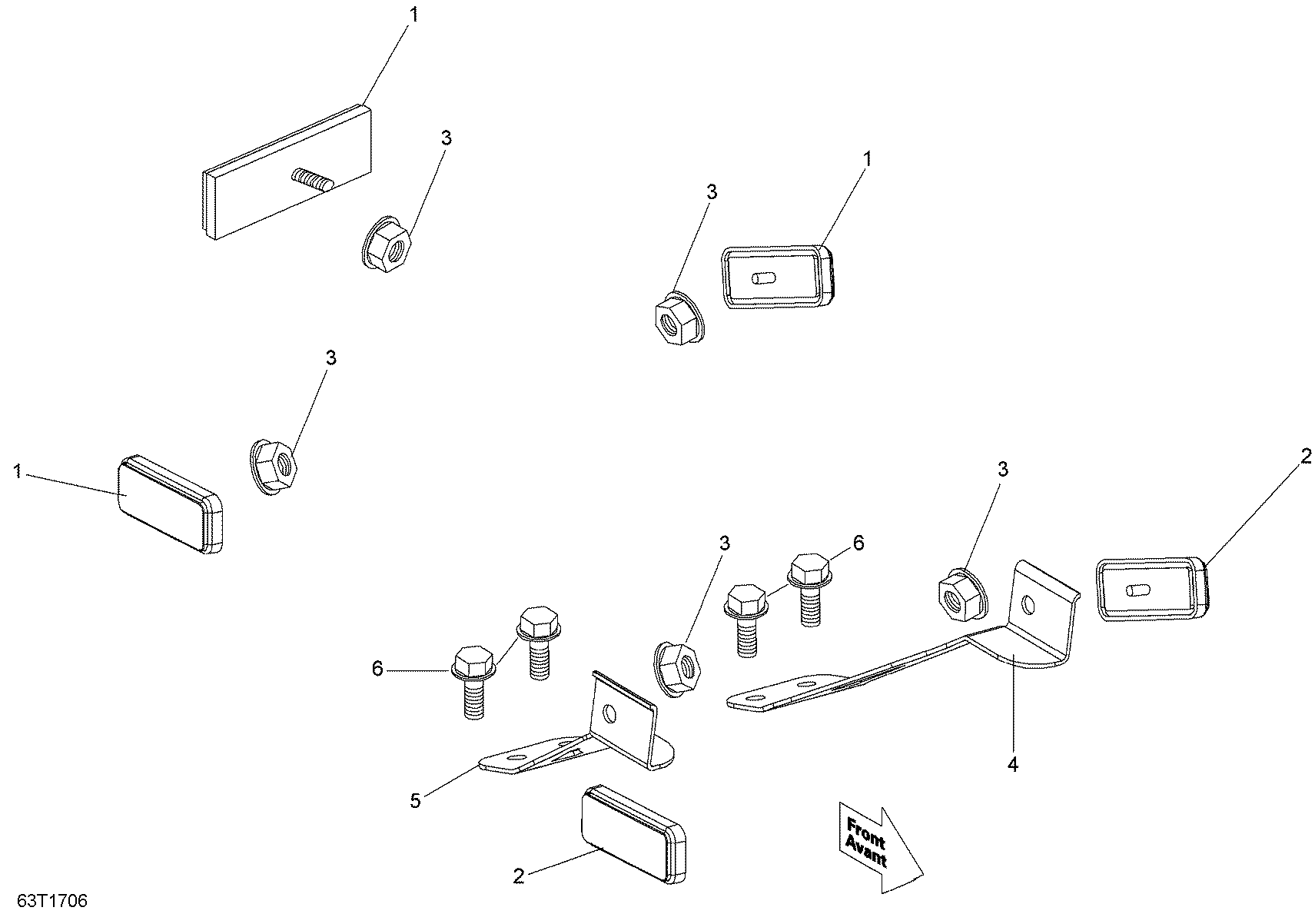

10- Headlights And Reflectors для BRP 3- DS 90 X - 2019
-
№АртикулНазвание
-
1V64501MAA010LL Reflector, RedReflector, Red
-
2V64502DGF040LL Reflector, YellowReflector, Yellow
-
3232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
4V50292DGF02H LH Front Reflector BracketLH Front Reflector Bracket
-
5V50295DGF02H RH Front Reflector BracketRH Front Reflector Bracket
-
6207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
7V64503DGF00H White Reflector. Not IllustratedWhite Reflector. Not Illustrated
