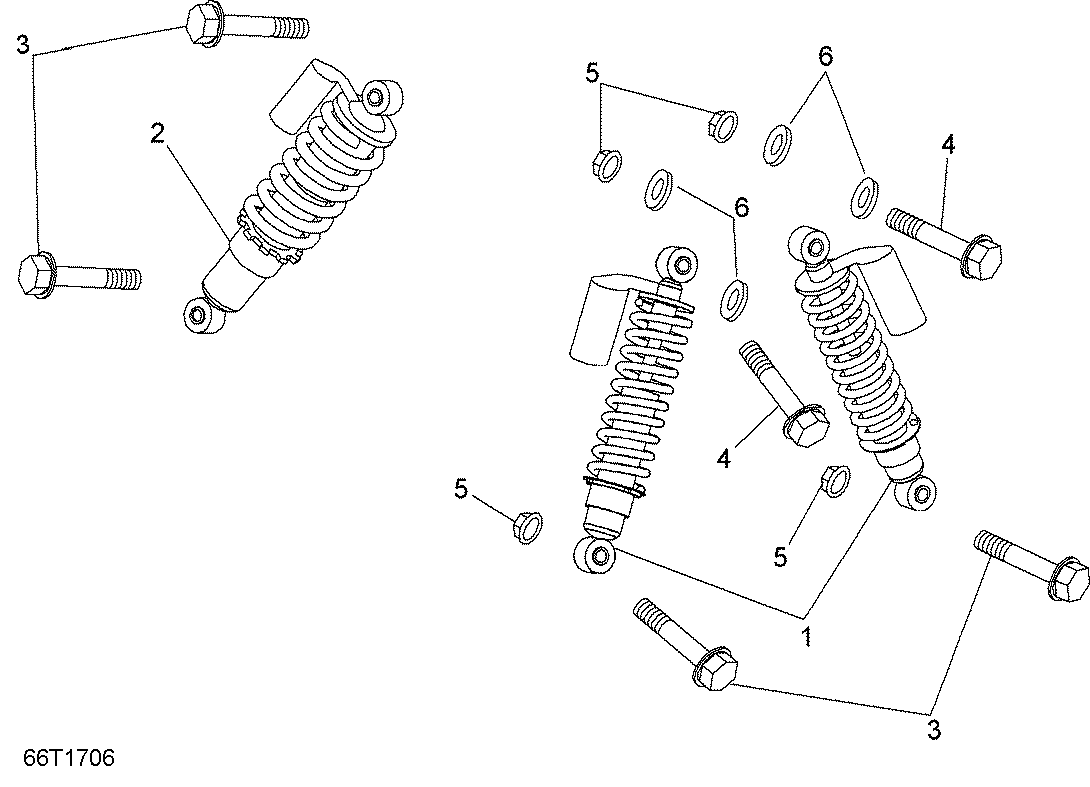

07- Shocks для BRP 3- DS 90 X - 2019
-
№АртикулНазвание
-
1V52500DGF03HLL Shock Absorber FrontShock Absorber Front
-
2V52400DGF04HLL Shock Absorber RearShock Absorber Rear
-
3V9600010040LL Hexagonal Flanged BoltHexagonal Flanged Bolt
-
4207605544 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
5232501416 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
6V941011121020LL Flat WasherFlat Washer
