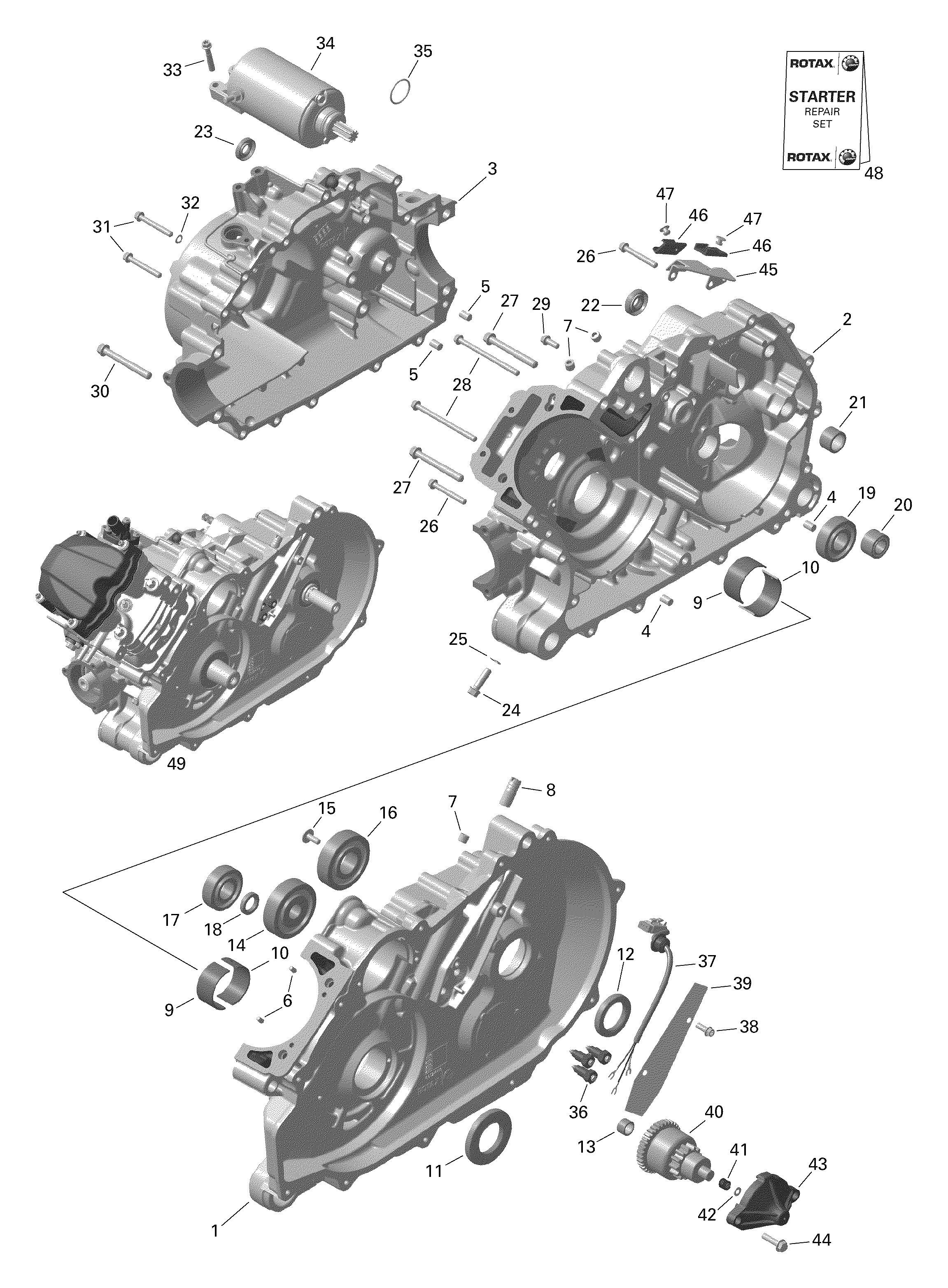

01- Engine - Crankcase - 450 - 6X6 для BRP 004 - Outlander T MAX 6X6 - 450 EFI - T Regulation - 2020
-
№АртикулНазвание
-
1420686325 Housing Ass'y. Includes 1 to 22Housing Ass'y. Includes 1 to 22
-
4420632010 Center Pin 8 X 12Center Pin 8 X 12
-
5420632010 Center Pin 8 X 12Center Pin 8 X 12
-
6420929650 Drive Pin 5 X 10Drive Pin 5 X 10
-
7420641323 Plug Screw M10 X 1Plug Screw M10 X 1
-
8420256332 Hose NippleHose Nipple
-
9420233960 Plain BearingPlain Bearing
-
10420233965 Plain BearingPlain Bearing
-
11420630152 Oil SealOil Seal
-
12420950089 Oil SealOil Seal
-
13420232482 Needle BushingNeedle Bushing
-
14420632290 Ball BearingBall Bearing
-
15420241529 Torx Screw M6 X 16Torx Screw M6 X 16
-
16420932825 Ball BearingBall Bearing
-
17420932433 Ball Bearing 6204Ball Bearing 6204
-
18420250130 Oil SealOil Seal
-
19420932433 Ball Bearing 6204Ball Bearing 6204
-
20420232085 Needle BushingNeedle Bushing
-
21420832240 Needle BushingNeedle Bushing
-
22420250450 Oil SealOil Seal
-
23420650315 Oil SealOil Seal
-
24420440372 Flanged Torx Screw M8 X 25Flanged Torx Screw M8 X 25
-
25420950141 Sealing RingSealing Ring
-
26420440324 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
27420440402 Flanged Torx Screw M8 X 65Flanged Torx Screw M8 X 65
-
28420641228 Flanged Torx Screw M6 X 85Flanged Torx Screw M6 X 85
-
29420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
30420440402 Flanged Torx Screw M8 X 65Flanged Torx Screw M8 X 65
-
31420440324 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
32420230415 Seal WasherSeal Washer
-
33420440274 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
34420684283 Electric Starter. Includes 34 to 35Electric Starter. Includes 34 to 35
-
36420241856 Position SwitchPosition Switch
-
37420265831 Wiring HarnessWiring Harness
-
38420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
39420251290 Cover SheetCover Sheet
-
40420684058 Starter Drive Ass'yStarter Drive Ass'y
-
41420938204 SpringSpring
-
42420927574 Washer 5.3Washer 5.3
-
43420610891 Reduction Cover GearReduction Cover Gear
-
44420240034 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
45420251491 Retaining PlateRetaining Plate
-
46420260590 Connector BracketConnector Bracket
-
47420243010 Blind RivetBlind Rivet
-
48420685125 Brush KitBrush Kit
-
49420042712 Engine Long Block, 450 EFIEngine Long Block, 450 EFI
