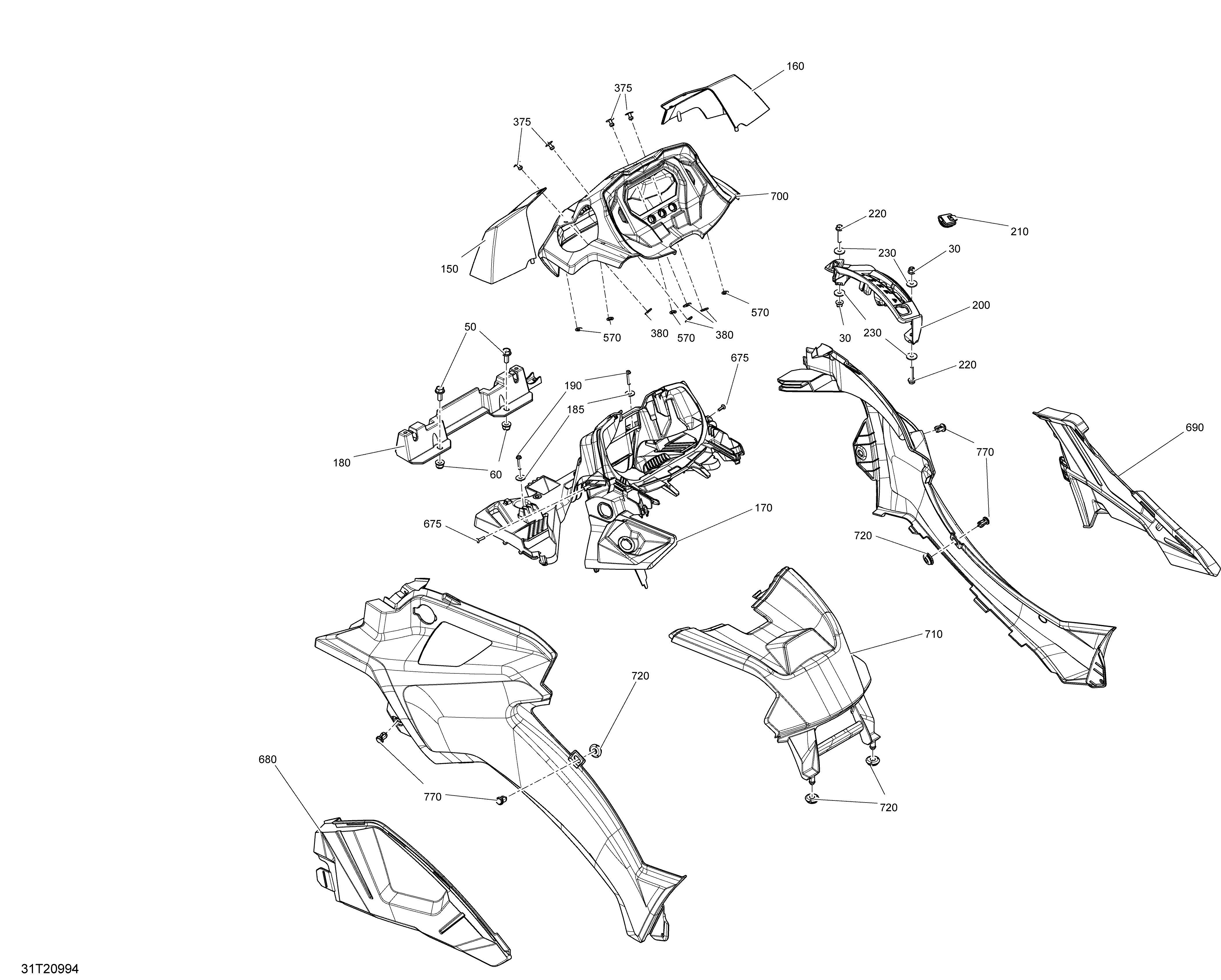

09- Body - Middle Section - Squadron Green для BRP 004 - Outlander T MAX 6X6 - 450 EFI - T Regulation - 2020
-
№АртикулНазвание
-
30233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
50207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
60233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
150705006134 LH Air DeflectorLH Air Deflector
-
160705006135 RH Air DeflectorRH Air Deflector
-
170715003984 Dash Support KitDash Support Kit
-
180705010406 Console Support InsertConsole Support Insert
-
185234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
190241152540 Hex. Flanged Screw K50 X 2.24 X 25Hex. Flanged Screw K50 X 2.24 X 25
-
200715006169 Shifter GateShifter Gate
-
210705005003 Shiftgate TrimShiftgate Trim
-
220207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
230224061201 Flat WasherFlat Washer
-
375293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
380517124300 WasherWasher
-
570732610072 Push NutPush Nut
-
675250000723 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
680705014060 LH Central PanelLH Central Panel
-
690705003444 Engine CoverEngine Cover
-
700705012572 Gauge Support. Includes 700 to 700aGauge Support. Includes 700 to 700a
-
710715005837 Dash KitDash Kit
-
720705003264 GrommetGrommet
-
770293150230 Tuflok Plastic RivetTuflok Plastic Rivet
