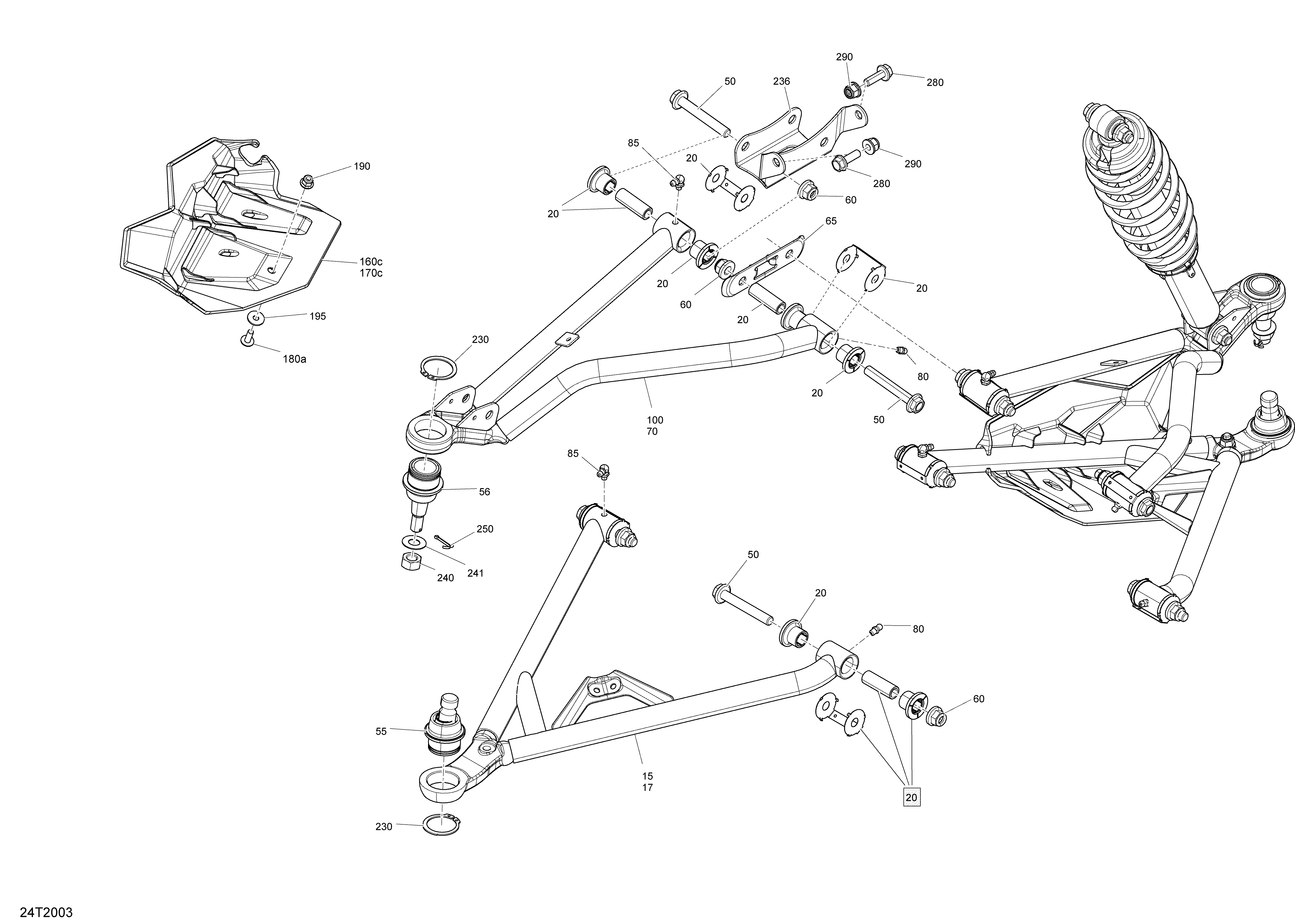

07- Front Suspension для BRP 004 - Outlander T MAX 6X6 - 450 EFI - T Regulation - 2020
-
№АртикулНазвание
-
15706202869 Black, LH Lower ArmBlack, LH Lower Arm
-
17706202870 Black, RH Lower ArmBlack, RH Lower Arm
-
20703500875 Bushing KitBushing Kit
-
50207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
55706202045 Ball JointBall Joint
-
56706202044 Ball JointBall Joint
-
60233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
65706200998 Front Suspension Cross PlateFront Suspension Cross Plate
-
70706201877 Black, RH Upper ArmBlack, RH Upper Arm
-
80408200700 Grease FittingGrease Fitting
-
85293550056 Grease Fitting 90°Grease Fitting 90°
-
100706201876 Black, LH Upper ArmBlack, LH Upper Arm
-
160c706202808 LH Joint ProtectorLH Joint Protector
-
170c706202809 RH Joint ProtectorRH Joint Protector
-
180a250000755 Torx Screw M6 X 16Torx Screw M6 X 16
-
190233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
195234062670 Flat Washer, StainlessFlat Washer, Stainless
-
230293370035 CirclipCirclip
-
236705203247 Upper Front HolderUpper Front Holder
-
240250100099 Nut M12Nut M12
-
241250200086 Flat WasherFlat Washer
-
250211400017 Cotter PinCotter Pin
-
280207682534 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
290233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
