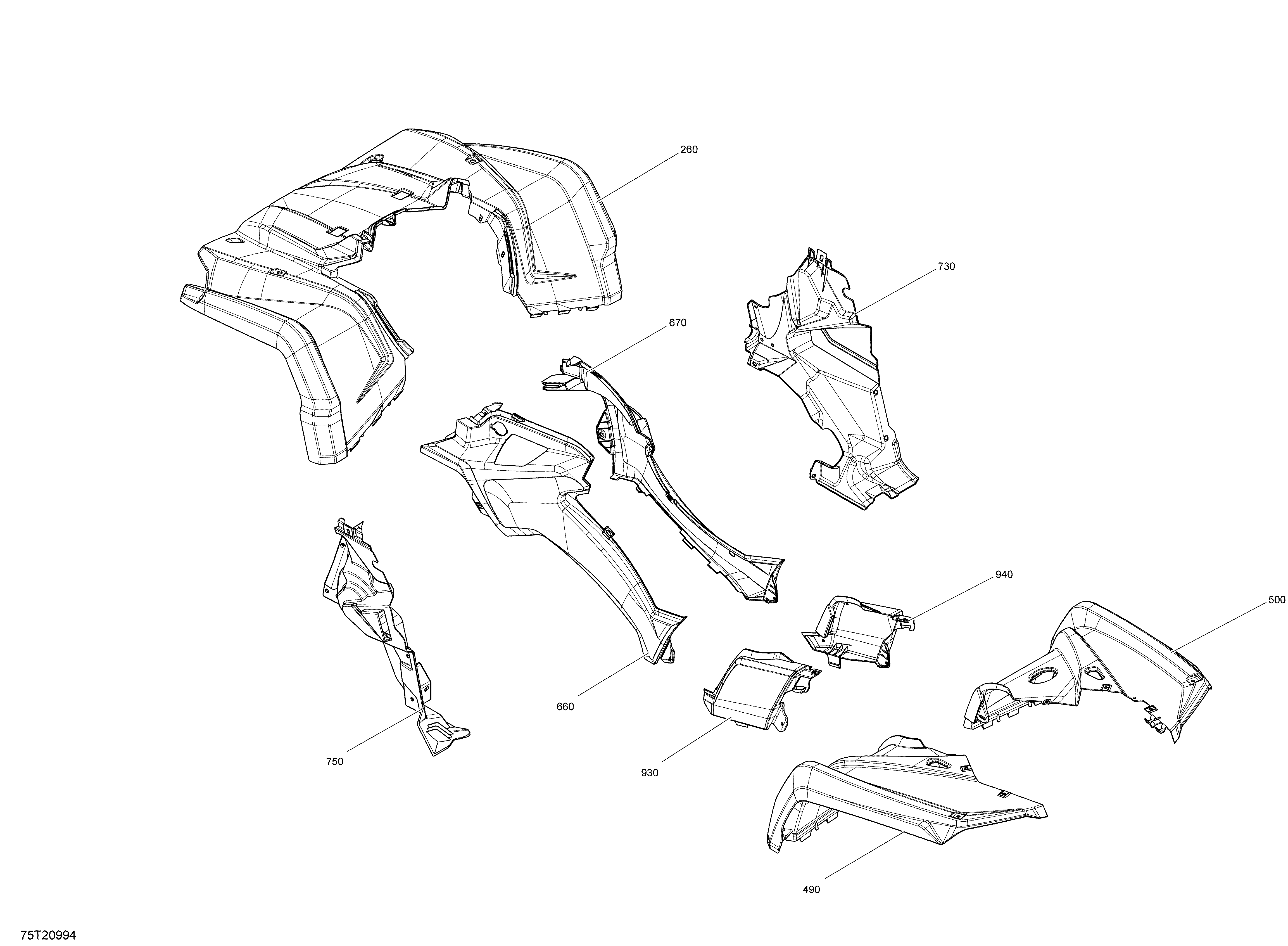

09- Fender Kit - Squadron Green для BRP 004 - Outlander T MAX 6X6 - 450 EFI - T Regulation - 2020
-
№АртикулНазвание
-
260715006459 Squadron Green, Frond Fender KitSquadron Green, Frond Fender Kit
-
490715006163 Squadron Green, Rear LH Fender KitSquadron Green, Rear LH Fender Kit
-
500715006461 Squadron Green, Rear RH Fender KitSquadron Green, Rear RH Fender Kit
-
660705009760 Squadron Green, LH Lateral PanelSquadron Green, LH Lateral Panel
-
670705009764 Squadron Green, RH Lateral PanelSquadron Green, RH Lateral Panel
-
730705010714 RH Inner FenderRH Inner Fender
-
750705012338 LH Inner FenderLH Inner Fender
-
930715001897 LH Extension PanelLH Extension Panel
-
940705004348 RH Extension PanelRH Extension Panel
