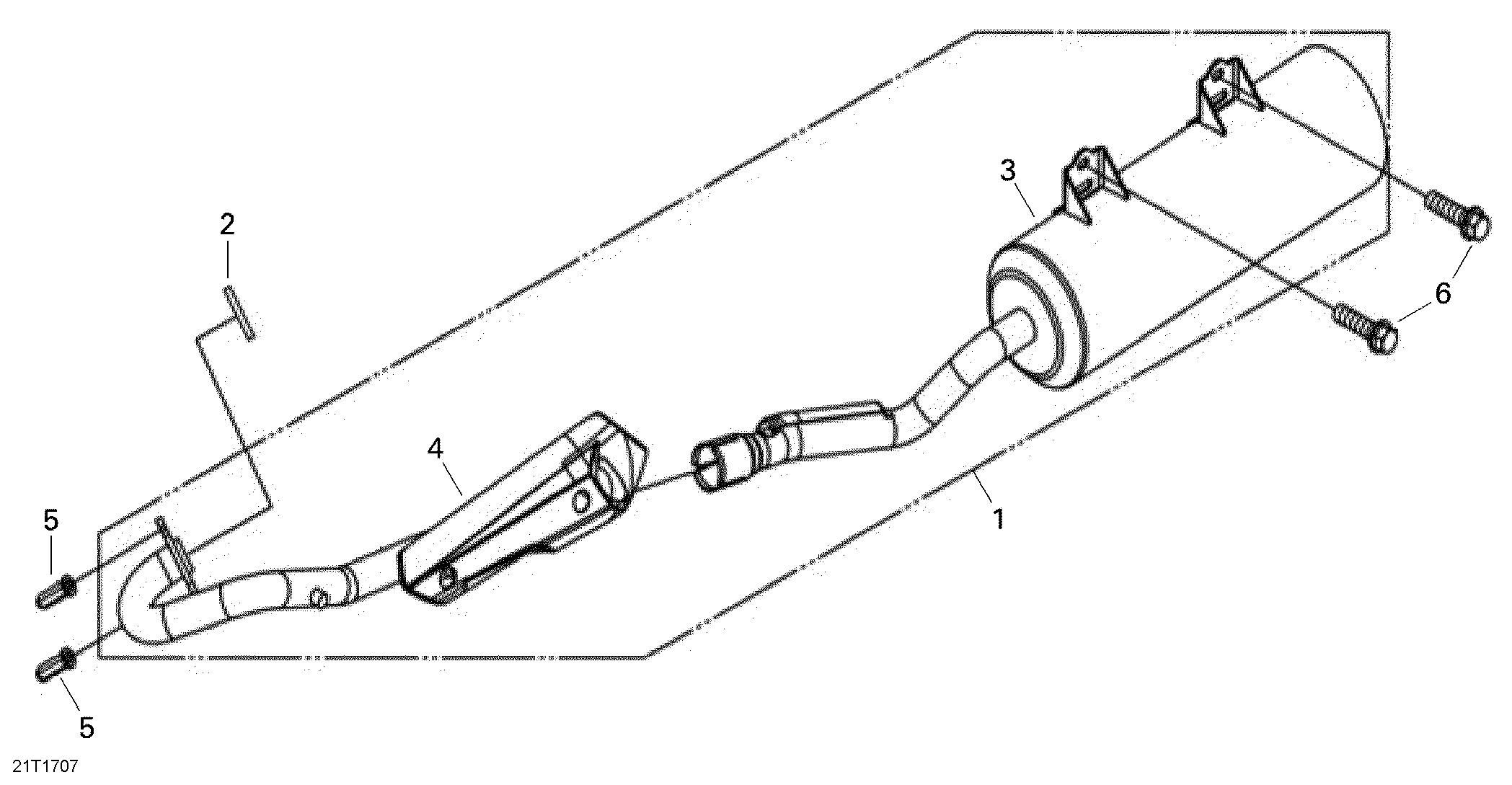

01- Exhaust System International для BRP 004 - DS 250 - 2020
-
№АртикулНазвание
-
2S18291H9A000 Exhaust Gasket. INTExhaust Gasket. INT
-
3S18310RCB300 Muffler Ass'y. INTMuffler Ass'y. INT
-
4S1832ARB1000 Exhaust Pipe. INTExhaust Pipe. INT
-
5S90043RFS000 Cap Nut. INTCap Nut. INT
-
6S958010801607 Flanged Bolt M8 X 16. INTFlanged Bolt M8 X 16. INT
-
7S18317RB1000 Exhaust Protector. INTExhaust Protector. INT
-
8S18319HMA300 Exhaust Gasket. INTExhaust Gasket. INT
-
9S18321RB1000 Muffler Clamp 37MM. INTMuffler Clamp 37MM. INT
-
10S90103V02000 Bolt 6 x 12. INTBolt 6 x 12. INT
-
11S90107V02000 Washer. INTWasher. INT
