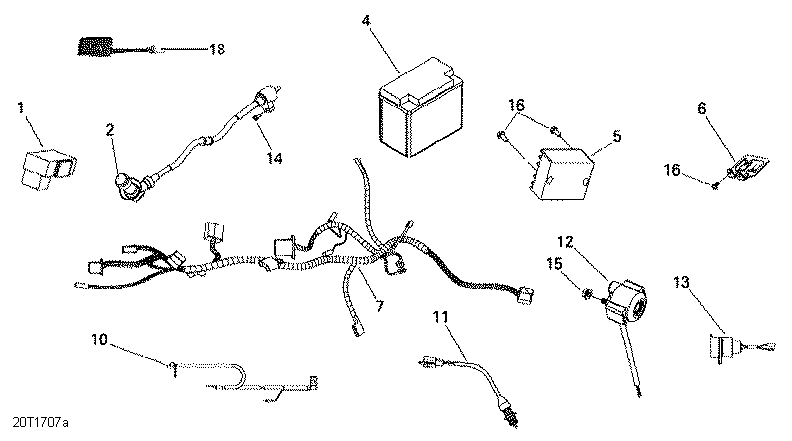

10- Electrical Components International для BRP 004 - DS 250 - 2020
-
№АртикулНазвание
-
1S30400RCB000 CDI Unit Ass'y. INTCDI Unit Ass'y. INT
-
2S3051ARB1010 Ignition Coil. INTIgnition Coil. INT
-
4715900031 Battery 12 Amp. INTBattery 12 Amp. INT
-
5S31600RCA000 Rectifier. INTRectifier. INT
-
6S31601RCA000 Connector Bracket. INTConnector Bracket. INT
-
7S32100RCB900 Harness Ass'y. INTHarness Ass'y. INT
-
10S32412RB1000 Ground Cable. INTGround Cable. INT
-
11S35350RCA000 Rear Stop Switch Assy. INTRear Stop Switch Assy. INT
-
12S3585ARCA000 Starter Solenoid. INTStarter Solenoid. INT
-
13S38600RA1000 DC Power Outlet, 12 Volts. INTDC Power Outlet, 12 Volts. INT
-
14S90112GK8000 Flanged Bolt M5 X 22. INTFlanged Bolt M5 X 22. INT
-
15S9405006070 Flanged Nut 6 mm. INTFlanged Nut 6 mm. INT
-
16S958010601607 Flanged Bolt M6 X 16. INTFlanged Bolt M6 X 16. INT
-
18S37270RCA000 Coolant Temperature Control Unit. INTCoolant Temperature Control Unit. INT
