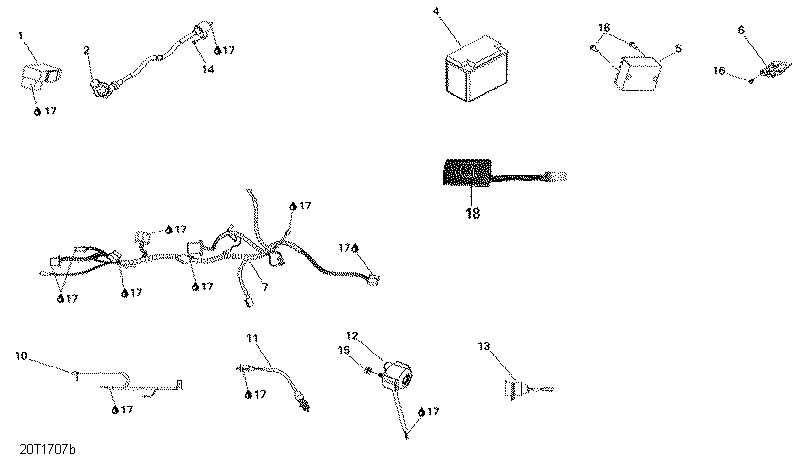

10- Electrical Components North America для BRP 004 - DS 250 - 2020
-
№АртикулНазвание
-
1S30400RCB000 CDI Unit Ass'y. North AmericaCDI Unit Ass'y. North America
-
2S3051ARB1010 Ignition Coil. North AmericaIgnition Coil. North America
-
4715900031 Battery 12 Amp. North AmericaBattery 12 Amp. North America
-
5S31600RCA000 Rectifier. North AmericaRectifier. North America
-
6S31601RCA000 Connector Bracket. North AmericaConnector Bracket. North America
-
7S32100RCB900 Harness Ass'y. North AmericaHarness Ass'y. North America
-
10S32412RB1000 Ground Cable. North AmericaGround Cable. North America
-
11S35350RCA000 Rear Stop Switch Assy. North AmericaRear Stop Switch Assy. North America
-
12S3585ARCA000 Starter Solenoid. North AmericaStarter Solenoid. North America
-
13S38600RA1000 DC Power Outlet, 12 Volts. North AmericaDC Power Outlet, 12 Volts. North America
-
14S90112GK8000 Flanged Bolt M5 X 22. North AmericaFlanged Bolt M5 X 22. North America
-
15S9405006070 Flanged Nut 6 mm. North AmericaFlanged Nut 6 mm. North America
-
16S958010601607 Flanged Bolt M6 X 16. North AmericaFlanged Bolt M6 X 16. North America
-
18S37270RCA000 Coolant Temperature Control Unit. North AmericaCoolant Temperature Control Unit. North America
