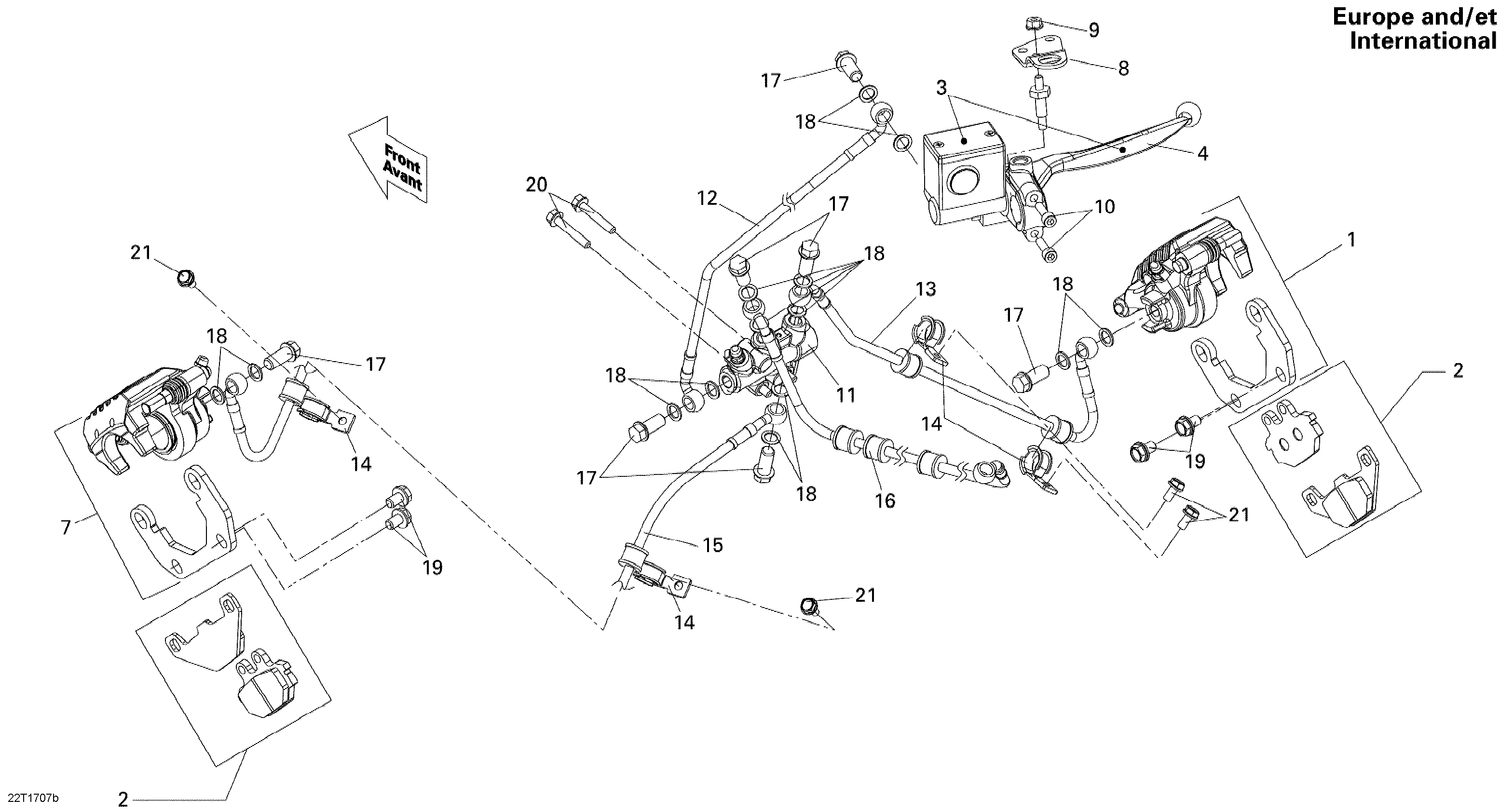

06- Front Brake Europe, International для BRP 004 - DS 250 - 2020
-
№АртикулНазвание
-
1S45100RCA000 RH Front Brake Caliper Ass'yRH Front Brake Caliper Ass'y
-
2S4511ARA1000 Front Brake Pad KitFront Brake Pad Kit
-
3S45500RCA000 Master Cylinder Ass'y. Includes 3 to 6, EuropeMaster Cylinder Ass'y. Includes 3 to 6, Europe
-
3S45500RCB000 Front Master Cylinder. Includes 3 to 6, InternationalFront Master Cylinder. Includes 3 to 6, International
-
4S45518RA1000 Arm LeverArm Lever
-
5S35350KBN900 Rear Stop Switch. Not Shown, EuropeRear Stop Switch. Not Shown, Europe
-
6S35342RA1000 Front Stop Switch. Not Shown, EuropeFront Stop Switch. Not Shown, Europe
-
6S35101RB1000 Stop Switch. Not Shown, InternationalStop Switch. Not Shown, International
-
7S45200RCA000 LH Front Brake Caliper Ass'yLH Front Brake Caliper Ass'y
-
8S53178RCA000 Parking Stay. EuropeParking Stay. Europe
-
9S9405006070 Flanged Nut 6 mmFlanged Nut 6 mm
-
10S967000602507 Socket Bolt M6 X 25Socket Bolt M6 X 25
-
11S46200RA1000 Pressure Control Valve BPressure Control Valve B
-
12S46201RCA000 Brake Hose. EuropeBrake Hose. Europe
-
12S46201RCB000 Brake Hose. InternationalBrake Hose. International
-
13S46203RCA000 RH Front Caliper HoseRH Front Caliper Hose
-
14S45156H3C000 Hose ClampHose Clamp
-
15S46204RCA000 LH Front Caliper HoseLH Front Caliper Hose
-
16S46207RCA000 Control Valve HoseControl Valve Hose
-
17S90145M9Q000 Banjo BoltBanjo Bolt
-
18S90545M9Q000 WasherWasher
-
19S958010801607 Flanged Bolt M8 X 16Flanged Bolt M8 X 16
-
20S958010604007 Flanged Bolt M6 X 40Flanged Bolt M6 X 40
-
21S958010601207 Flanged Bolt M6 X 12Flanged Bolt M6 X 12
