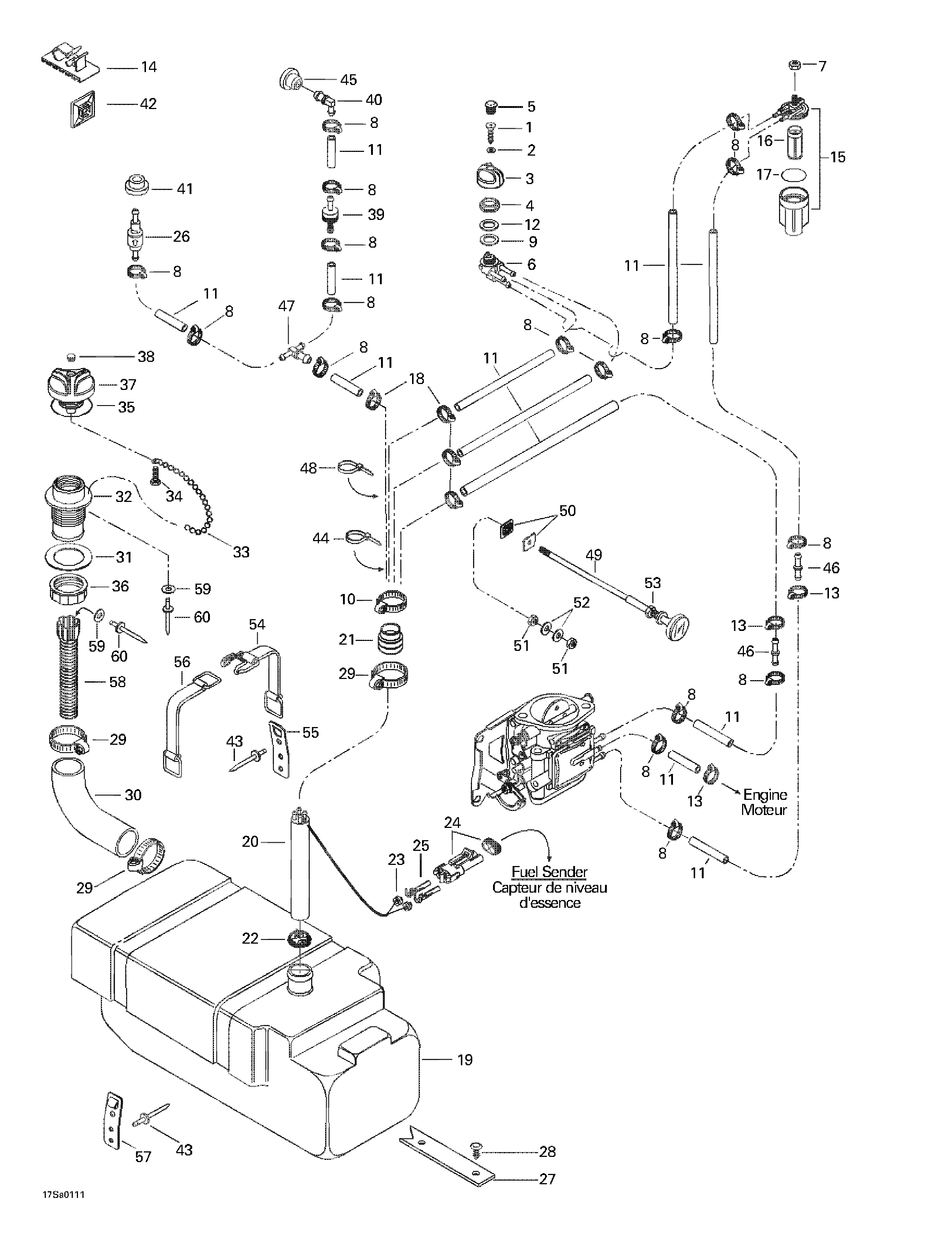

02- Fuel System для BRP GTS, 5551 - 2001
-
№АртикулНазвание
-
1208640860 Phillips Screw M4 x 8Phillips Screw M4 x 8
-
2234040600 Flat Washer 4 mmFlat Washer 4 mm
-
3275500299 Fuel Valve KnobFuel Valve Knob
-
4212100009 Hex. Plastic NutHex. Plastic Nut
-
5275500241 Plug-Cap Fuel ValvePlug-Cap Fuel Valve
-
6275500098 Fuel ValveFuel Valve
-
7232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
8293650042 Oetiker ClampOetiker Clamp
-
9293250004 Valve GasketValve Gasket
-
10293650035 Tridon ClampTridon Clamp
-
11275500139 Hose 6 mm (Meter)Hose 6 mm (Meter)
-
12293250005 GasketGasket
-
13293650038 Tridon ClampTridon Clamp
-
14293750005 Tie-ClampTie-Clamp
-
15275500088 Fuel Filter Ass'y. Includes 15 - 17.Fuel Filter Ass'y. Includes 15 - 17.
-
16275500089 Fuel FilterFuel Filter
-
17275500090 O-RingO-Ring
-
18293650038 Tridon ClampTridon Clamp
-
19275500183 Fuel TankFuel Tank
-
20275500473 Baffle Ass'y. Includes 20 - 25.Baffle Ass'y. Includes 20 - 25.
-
21275500111 Tube AdapterTube Adapter
-
22275500397 Fuel FilterFuel Filter
-
23278000218 Wire SealWire Seal
-
24278000220 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
25278000223 Female TerminalFemale Terminal
-
26275500479 Pressure Relief ValvePressure Relief Valve
-
27293830033 Pad RubberPad Rubber
-
28293730006 Dart BlackDart Black
-
29293650023 Tridon ClampTridon Clamp
-
30275500211 Filler Neck HoseFiller Neck Hose
-
31293250029 GasketGasket
-
32275500247 Filler NeckFiller Neck
-
33275500015 ChainChain
-
34241140060 Hex. Flanged ScrewHex. Flanged Screw
-
35293250075 GasketGasket
-
36211100012 Nut Neck Filler FuelNut Neck Filler Fuel
-
37275500388 Fuel Tank Cap Ass'y. Includes 37 - 38.Fuel Tank Cap Ass'y. Includes 37 - 38.
-
38293000075 Snap CapSnap Cap
-
39275500398 Check ValveCheck Valve
-
40293710001 Elbow Fitting 90 DegElbow Fitting 90 Deg
-
41293720029 GrommetGrommet
-
42293750015 Tie Rap MountTie Rap Mount
-
43293150037 Rivet 3/16Rivet 3/16
-
44293750008 Tie Rap 350 mmTie Rap 350 mm
-
45570135100 GrommetGrommet
-
46293710039 Straight FittingStraight Fitting
-
47293710024 > Fitting> Fitting
-
48414115200 Tie RapTie Rap
-
49270000324 Choke Cable. Includes 49 - 53.Choke Cable. Includes 49 - 53.
-
50291000457 Choke PlateChoke Plate
-
51232160600 Hex. Jam Nut M6Hex. Jam Nut M6
-
52234061600 Flat Washer 6 mmFlat Washer 6 mm
-
53211100030 NutNut
-
54293850025 Fuel Tank Strap (with Hook). Includes 54 - 55.Fuel Tank Strap (with Hook). Includes 54 - 55.
-
55293850024 Strap ClipStrap Clip
-
56293850026 Fuel Tank Strap. Includes 56 - 57.Fuel Tank Strap. Includes 56 - 57.
-
57293850024 Strap ClipStrap Clip
-
58275500316 Filler neck (Inner)Filler neck (Inner)
-
59234032600 Flat Washer 3 mmFlat Washer 3 mm
-
60293150032 Pop Rivet 1/8Pop Rivet 1/8
