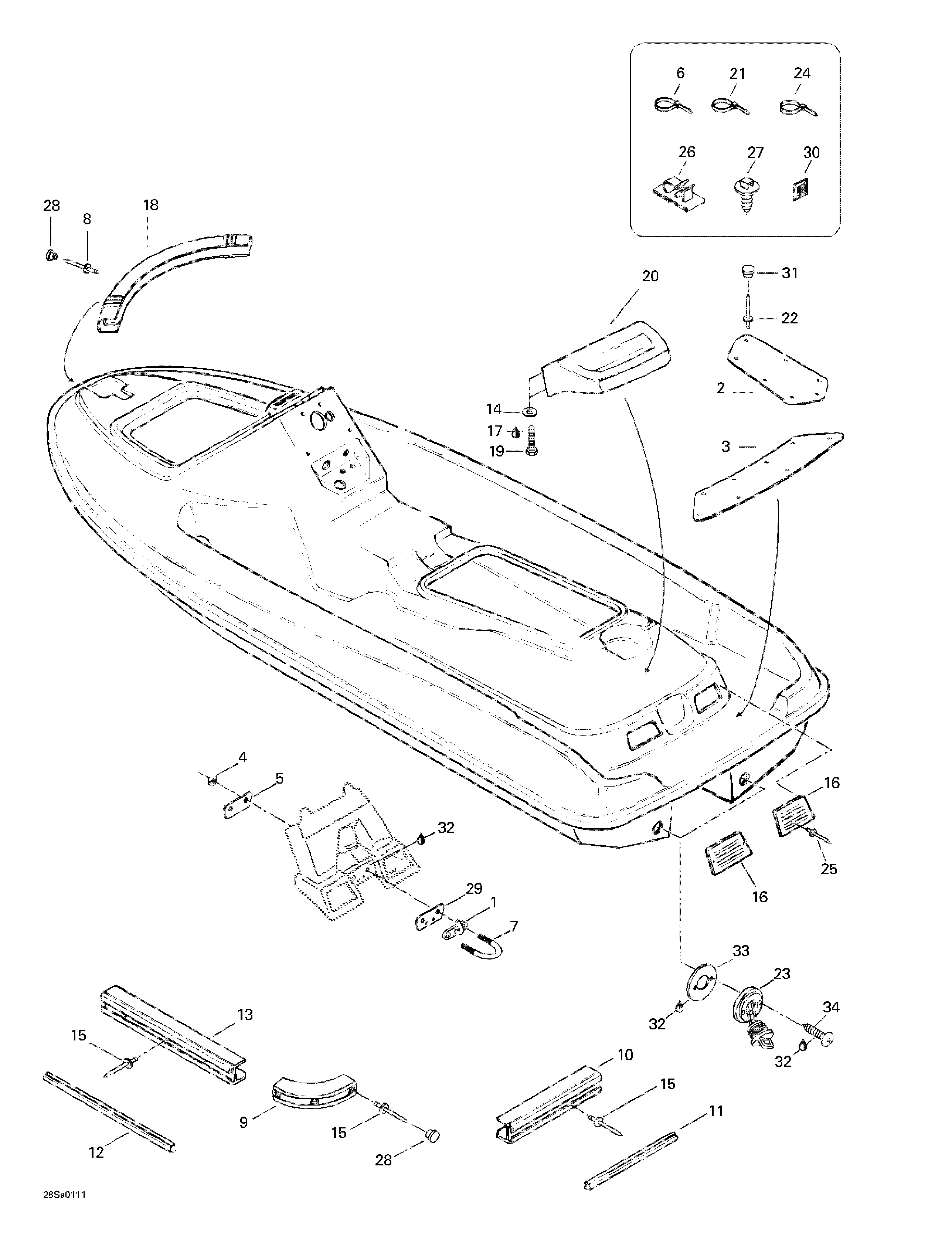

09- Body, Rear View для BRP GTS, 5551 - 2001
-
№АртикулНазвание
-
1291001232 Ski HookSki Hook
-
2291000523 R.H. Carpet (Violet)R.H. Carpet (Violet)
-
291000524 LH Carpet (Violet)LH Carpet (Violet)
-
3291000525 Rear Carpet (Violet)Rear Carpet (Violet)
-
4232581650 Elastic Stop Nut M8Elastic Stop Nut M8
-
5291000307 Retainer PlateRetainer Plate
-
6414115200 Tie RapTie Rap
-
7292000063 > Clamp> Clamp
-
8293150013 Pop Rivet 3/16 x 1.190Pop Rivet 3/16 x 1.190
-
9291000394 Bumper Corner (Violet)Bumper Corner (Violet)
-
10291000508 Rear Bumper (Violet)Rear Bumper (Violet)
-
11291000625 Rear Bumper Trim (Violet)Rear Bumper Trim (Violet)
-
12291000623 Side Bumper Trim (Violet)Side Bumper Trim (Violet)
-
13291000507 Side Bumper (Violet)Side Bumper (Violet)
-
14234062600 Flat Washer 6 mmFlat Washer 6 mm
-
15293150014 Pop Rivet 3/16 x 0.940Pop Rivet 3/16 x 0.940
-
16291000528 Rear Intake Grill (Violet)Rear Intake Grill (Violet)
-
17293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
18291000506 Nose Bumper (Violet)Nose Bumper (Violet)
-
19207162060 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
20295500162 Grab Handle (Violet)Grab Handle (Violet)
-
21293750008 Tie RapTie Rap
-
22293150036 Pop Rivet 1/8x.765Pop Rivet 1/8x.765
-
23292000187 Drain PlugDrain Plug
-
24293750002 Locking Tie 142 mmLocking Tie 142 mm
-
414115200 Tie RapTie Rap
-
25293150010 RivetRivet
-
26293750005 Tie ClampTie Clamp
-
27293730018 Mount DartMount Dart
-
28291000421 Bumper Plug (Violet)Bumper Plug (Violet)
-
29291000426 Finition PlateFinition Plate
-
30293750015 Tie Rap MountTie Rap Mount
-
31293000023 Snap Cap (Violet)Snap Cap (Violet)
-
32296000309 SiliconeSealant,AdchemClear4511SiliconeSealant,AdchemClear4511
-
33293250030 Gasket (Plug Drain)Gasket (Plug Drain)
-
34211000021 Phillips Screw 10-14 x 5/8Phillips Screw 10-14 x 5/8
