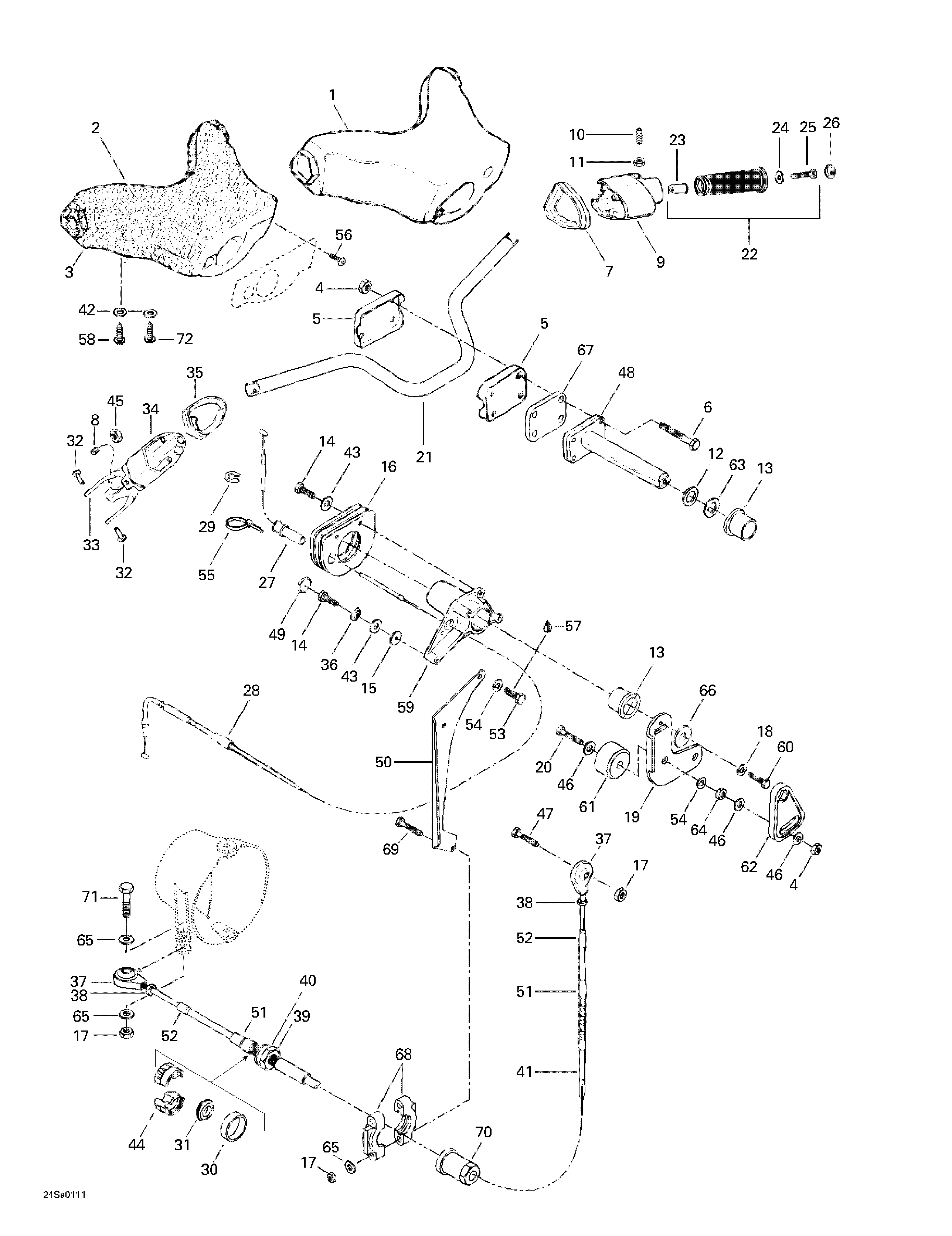

07- Steering System для BRP GTS, 5551 - 2001
-
№АртикулНазвание
-
1277000260 Steering CoverSteering Cover
-
2277000145 Top FoamTop Foam
-
3277000146 Bottom FoamBottom Foam
-
4232581650 Elastic Stop Nut M8Elastic Stop Nut M8
-
5277000142 Steering ClampSteering Clamp
-
6207085560 Hex. Screw M8 x 55Hex. Screw M8 x 55
-
7277000341 L.H. AdapterL.H. Adapter
-
8206561060 Set Screw M6 x 10Set Screw M6 x 10
-
9277000221 L.H. Housing Ass'y. Includes 9 - 11.L.H. Housing Ass'y. Includes 9 - 11.
-
10216561060 Set Screw M6 x 10Set Screw M6 x 10
-
11232160600 Hex. Jam Nut M6Hex. Jam Nut M6
-
12211200008 Spring WasherSpring Washer
-
13293900002 BushingBushing
-
14207182560 Hex. Screw M8 x 25Hex. Screw M8 x 25
-
15277000100 Plastic WasherPlastic Washer
-
16277000091 Collar (Black)Collar (Black)
-
17232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
18234181601 Lock Washer 8 mmLock Washer 8 mm
-
19277000493 Steering Stem ArmSteering Stem Arm
-
20207084560 Hex. Screw M8 x 45Hex. Screw M8 x 45
-
21277000824 Handle BarHandle Bar
-
22295500692 Handle Grip Kit. Includes 22 - 26.Handle Grip Kit. Includes 22 - 26.
-
24234062600 Flat Washer 6 mmFlat Washer 6 mm
-
25250000002 Hex. Screw M6 x 30 (Scotch Grip)Hex. Screw M6 x 30 (Scotch Grip)
-
26277000310 CapCap
-
27293720014 GrommetGrommet
-
28277000710 Throttle CableThrottle Cable
-
29293370002 CirclipCirclip
-
30211100010 Retainer RingRetainer Ring
-
31211100009 Rubber WasherRubber Washer
-
32277000381 PinPin
-
33277000472 Throttle HandleThrottle Handle
-
34277000222 Throttle Handle HousingThrottle Handle Housing
-
35277000084 Throttle AdapterThrottle Adapter
-
36277000096 Retaining WasherRetaining Washer
-
37277000153 Ball JointBall Joint
-
38212100005 Hex. Nut 10-32Hex. Nut 10-32
-
39211100011 Hex. Jam Nut 1/2-20Hex. Jam Nut 1/2-20
-
40211200006 Flat WasherFlat Washer
-
41271000436 Steering CableSteering Cable
-
42234051600 Flat Washer 5 mmFlat Washer 5 mm
-
43234082600 Flat Washer 8 mmFlat Washer 8 mm
-
44277000168 Half RingHalf Ring
-
45232160600 Hex. Jam Nut M6Hex. Jam Nut M6
-
46234081600 Flat Washer 8 mmFlat Washer 8 mm
-
47207063060 Hex. Screw M6 x 30Hex. Screw M6 x 30
-
48277000223 Steering StemSteering Stem
-
49210000019 Snap CapSnap Cap
-
50277000457 Cable SupportCable Support
-
51277000473 Large BootLarge Boot
-
52277000466 Small BootSmall Boot
-
53207181660 Hex. Screw M8 x 16Hex. Screw M8 x 16
-
54234181601 Lock Washer 8 mmLock Washer 8 mm
-
55293750002 Tie Rap 130 mmTie Rap 130 mm
-
56209631360 Tapping Phillips Screw 3.5 x 13Tapping Phillips Screw 3.5 x 13
-
57293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
58211000021 Phillips Screw 10-14 x 5/8Phillips Screw 10-14 x 5/8
-
59277000115400 Steering SupportSteering Support
-
60207182560 Hex. Screw M8 x 25Hex. Screw M8 x 25
-
61277000097 Stopper BushingStopper Bushing
-
62277000201 Lock PlateLock Plate
-
63293350006 ShimShim
-
64232081600 Hex. Nut M8Hex. Nut M8
-
65234061600 Flat Washer 6 mmFlat Washer 6 mm
-
66211200001 WasherWasher
-
67277000436 SpacerSpacer
-
68277000162 Thrust-SupportThrust-Support
-
69207766060 Bolt-Carriage M6 x 60Bolt-Carriage M6 x 60
-
70277000167 Adjustable KnobAdjustable Knob
-
71207064060 Screw Hex. M6 x 40Screw Hex. M6 x 40
-
72211000037 Phillips Screw 10-14 x 7/8Phillips Screw 10-14 x 7/8
