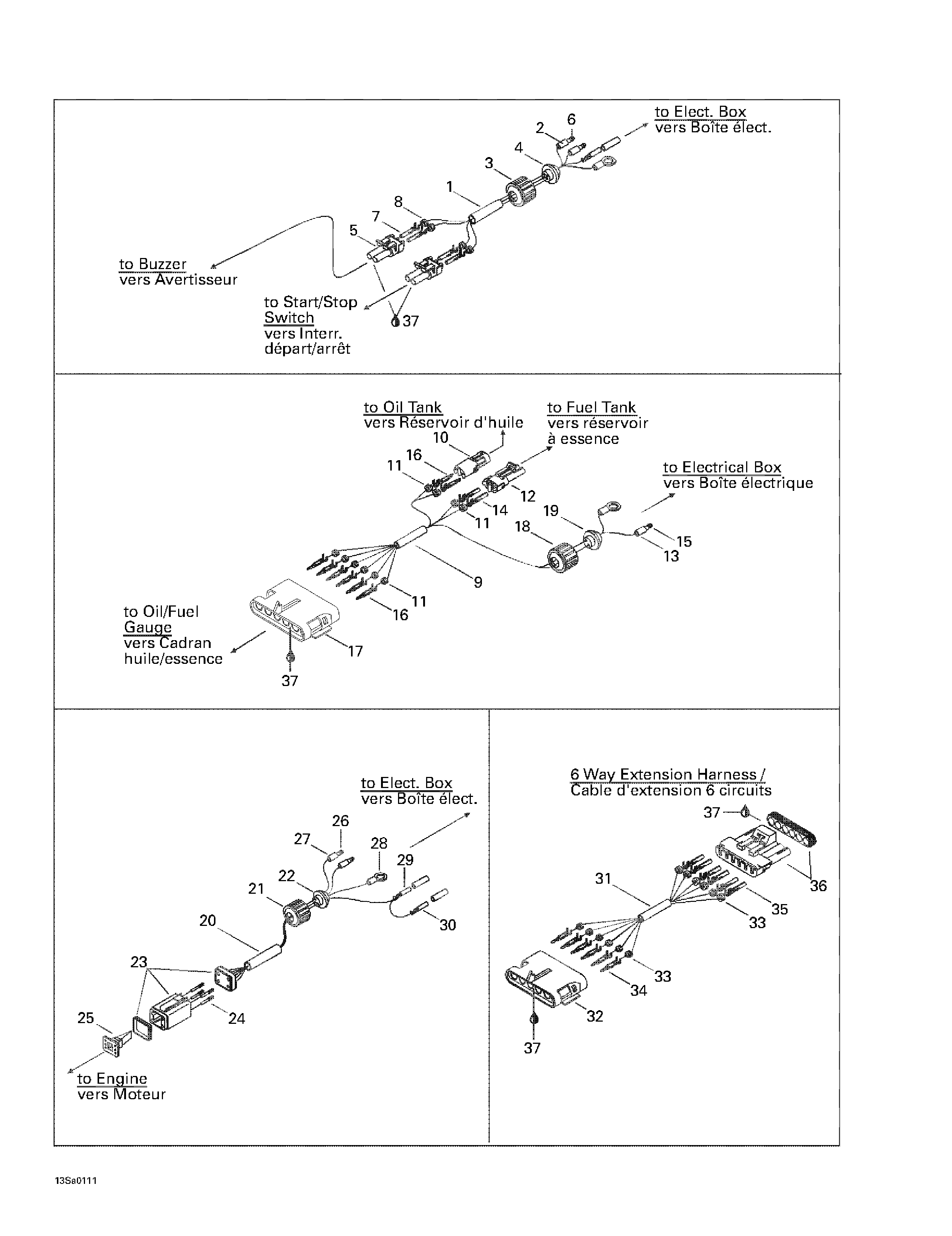

10- Electrical Harness для BRP GTS, 5551 - 2001
-
№АртикулНазвание
-
1278000420 Buzzer-On/Off Switch Harness. Includes 1 - 8.Buzzer-On/Off Switch Harness. Includes 1 - 8.
-
2278000231 Insulating Sheath (Male Terminal)Insulating Sheath (Male Terminal)
-
3278000100 Electric Box CapElectric Box Cap
-
4570026800 Grommet (4 Circuits) (Red)Grommet (4 Circuits) (Red)
-
5278000220 Male Housing (2 Circuits)(Packard)Male Housing (2 Circuits)(Packard)
-
6278000230 Male Terminal (20 Gauge)(AMP)Male Terminal (20 Gauge)(AMP)
-
7278000223 Female Terminal (18 Gauge)(Packard)Female Terminal (18 Gauge)(Packard)
-
8278000218 Wire Seal (16-18 Gauge) (Green)(Packard)Wire Seal (16-18 Gauge) (Green)(Packard)
-
9278000494 Gauge Harness (6 Circuits). Includes 9 - 19.Gauge Harness (6 Circuits). Includes 9 - 19.
-
10278000217 Female Housing (2 Circuits)(Packard)Female Housing (2 Circuits)(Packard)
-
11278000218 Wire Seal (16-18 Gauge) (Green)(Packard)Wire Seal (16-18 Gauge) (Green)(Packard)
-
12278000220 Male Housing (2 Circuits)(Packard)Male Housing (2 Circuits)(Packard)
-
13278000231 Insulating Sheath (Male Terminal)Insulating Sheath (Male Terminal)
-
14278000223 Female Terminal (18 Gauge)(Packard)Female Terminal (18 Gauge)(Packard)
-
15278000230 Male Terminal (20 Gauge)(AMP)Male Terminal (20 Gauge)(AMP)
-
16278000222 Male Terminal (18 Gauge)(Packard)Male Terminal (18 Gauge)(Packard)
-
17278000156 Female Housing (6 Circuits)(Packard)Female Housing (6 Circuits)(Packard)
-
18278000100 Electric Box CapElectric Box Cap
-
19293720025 Grommet (2 Circuits) (Gray)Grommet (2 Circuits) (Gray)
-
20278000472 Engine Harness. Includes 20 - 30.Engine Harness. Includes 20 - 30.
-
21278000100 Electrical Box CapElectrical Box Cap
-
22570026800 Grommet (4 Circuits) (Red)Grommet (4 Circuits) (Red)
-
23278000739 Male Housing (4 Circuits) (Deutsch)Male Housing (4 Circuits) (Deutsch)
-
24278000632 Female Terminal (16-18 Gauge) (Deutsch)Female Terminal (16-18 Gauge) (Deutsch)
-
25278000738 Male Secondary Lock (4 Circuits) (Deutsch)Male Secondary Lock (4 Circuits) (Deutsch)
-
26278000230 Male Terminal (20 Gauge)(AMP)Male Terminal (20 Gauge)(AMP)
-
27278001008 Insulating Sheath (Male Terminal)Insulating Sheath (Male Terminal)
-
28278000300 Open Barrel(AMP)Open Barrel(AMP)
-
29278001009 Female Terminal (14-18 Gauge)(AMP)Female Terminal (14-18 Gauge)(AMP)
-
30278000228 Female Terminal (12-18 Gauge)(AMP)Female Terminal (12-18 Gauge)(AMP)
-
31278000495 6 Circuits Harness. Includes 31 - 35.6 Circuits Harness. Includes 31 - 35.
-
32278000156 Female Housing (6 Circuits)(Packard)Female Housing (6 Circuits)(Packard)
-
33278000218 Wire Seal (16-18 Gauge) (Green)(Packard)Wire Seal (16-18 Gauge) (Green)(Packard)
-
34278000222 Male Terminal (18 Gauge)(Packard)Male Terminal (18 Gauge)(Packard)
-
35278000223 Female Terminal (18 Gauge)(Packard)Female Terminal (18 Gauge)(Packard)
-
36278000221 Male Terminal Housing (6 Circuits)Male Terminal Housing (6 Circuits)
-
37293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
