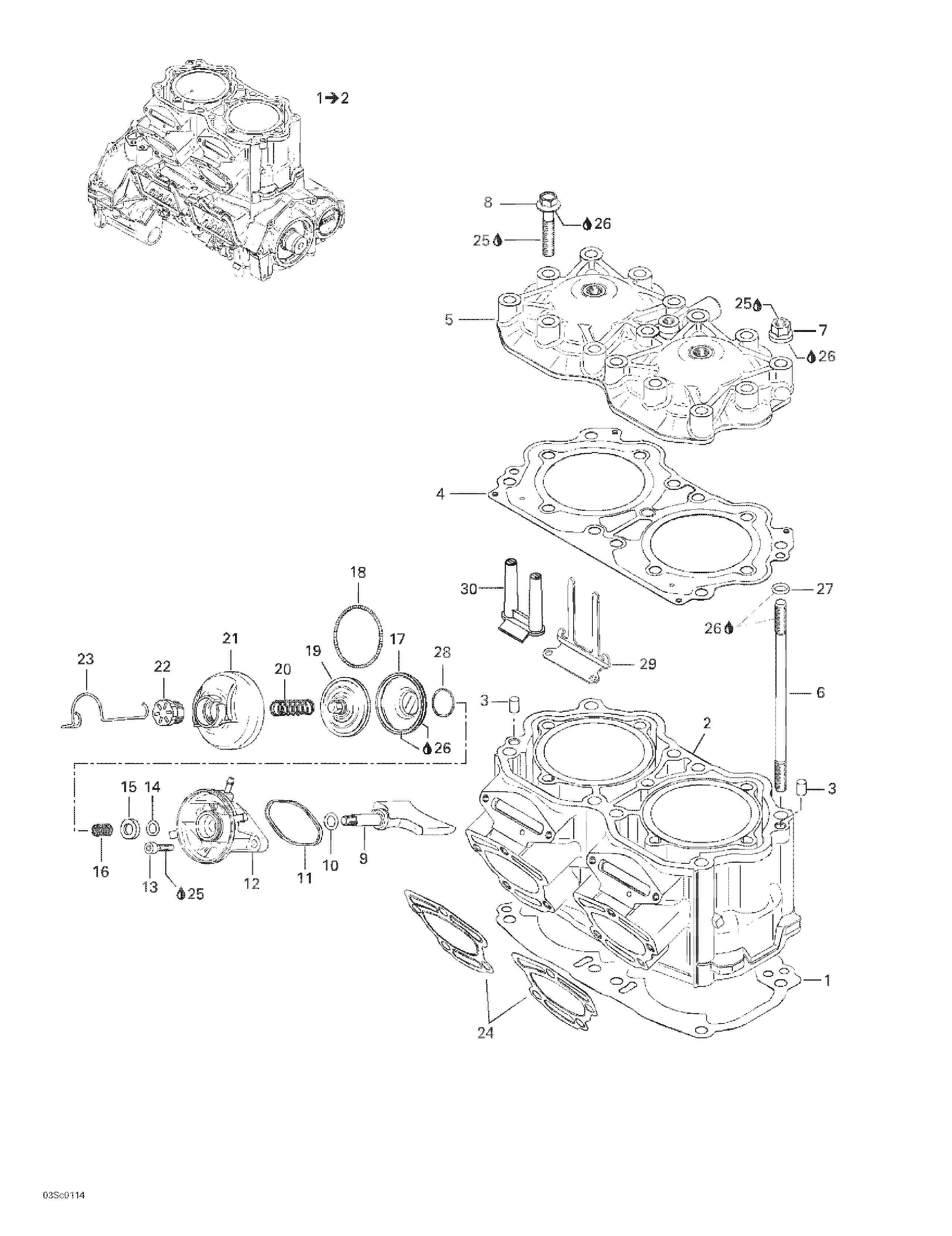

01- Crankshaft, Piston And Cylinder для BRP RX X, 5589 - 2001
-
№АртикулНазвание
-
1270000542 Short Block Ass'y. Includes 1 - 2.Short Block Ass'y. Includes 1 - 2.
-
1290931900 Cylinder GasketCylinder Gasket
-
2270000541 Cylinder with Sleeve (Silver)Cylinder with Sleeve (Silver)
-
3290632010 Pin 8 x 12Pin 8 x 12
-
4290931702 Cylinder Head GasketCylinder Head Gasket
-
5290923921 Cylinder Head (Silver)Cylinder Head (Silver)
-
6290640232 Stud M10 x 200Stud M10 x 200
-
7290842863 Stud Nut M10Stud Nut M10
-
8290841708 Hex. Flanged Screw M10 x 60Hex. Flanged Screw M10 x 60
-
9290854410 Exhaust PistonExhaust Piston
-
10290931765 O RingO Ring
-
11290931670 Rubber GasketRubber Gasket
-
12290854435 Valve HousingValve Housing
-
13205062560 Socket Head Screw M6 x 25Socket Head Screw M6 x 25
-
14290931765 O RingO Ring
-
15290926220 Support RingSupport Ring
-
16290838260 SpringSpring
-
17290260723 BellowsBellows
-
18290239048 Hose SpringHose Spring
-
19290854445 Exhaust ValveExhaust Valve
-
20290939137 Compression SpringCompression Spring
-
21290911555 Valve CoverValve Cover
-
22290241222 Adjustment ScrewAdjustment Screw
-
23290838083 Spring ClipSpring Clip
-
24290931653 GasketGasket
-
25293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
26413707000 Molykote 111Molykote 111
-
27290850460 O-RingO-Ring
-
28420838253 Clamp SpringClamp Spring
-
29278001662 Ground PlateGround Plate
-
30278001512 InsulatorInsulator
