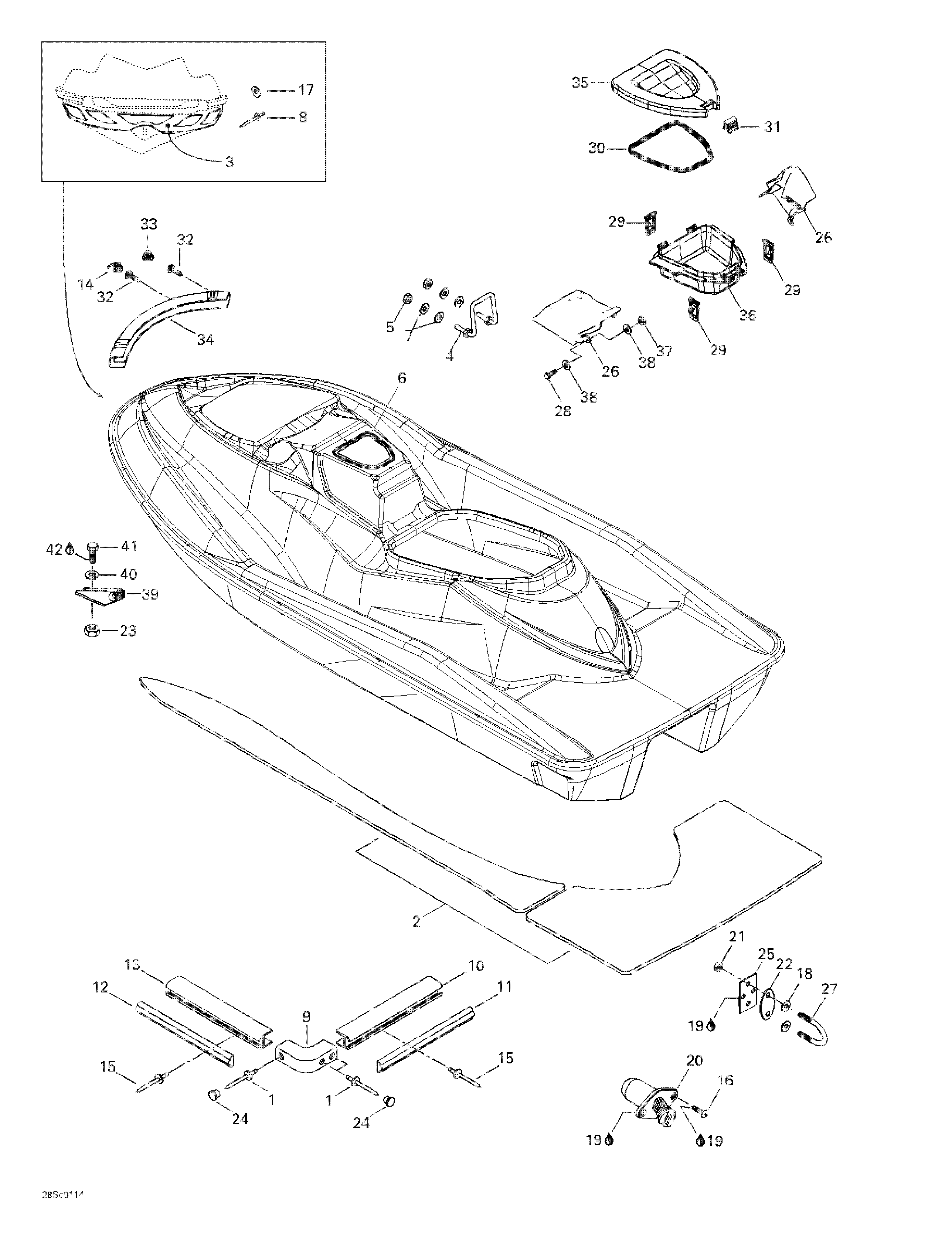

09- Body And Accessories для BRP RX X, 5589 - 2001
-
№АртикулНазвание
-
1293150013 Pop Rivet 3/16Pop Rivet 3/16
-
4291001436 ''U'' Clamp''U'' Clamp
-
5232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
6293250099 GasketGasket
-
7234062600 Washer 6 mmWasher 6 mm
-
8293150013 Rivet (3/16'')Rivet (3/16'')
-
9291001505 Bumper Corner (Black)Bumper Corner (Black)
-
10291001483 Rear Bumper (Black)Rear Bumper (Black)
-
11291001537 Rear Bumper Trim (Yellow)Rear Bumper Trim (Yellow)
-
12291001536 Side Bumper Trim (Yellow)Side Bumper Trim (Yellow)
-
13291001481 Side Bumper (Black)Side Bumper (Black)
-
14291001040 Bumper Plug (Black)Bumper Plug (Black)
-
15293150005 Pop Rivet 3/16Pop Rivet 3/16
-
16211000021 Screw Self tappingScrew Self tapping
-
17234052600 Flat Washer 5 mmFlat Washer 5 mm
-
18293050001 WasherWasher
-
19296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
20292000685 Drain PlugDrain Plug
-
21232581650 Elastic Stop Nut M8Elastic Stop Nut M8
-
22291001386 Finition Plate (Black)Finition Plate (Black)
-
23232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
24291000339 Bumper Plug (Black)Bumper Plug (Black)
-
25291001387 Retainer PlateRetainer Plate
-
26291001649 Grill RH (Black)Grill RH (Black)
-
289100051 Grill LH (Black)Grill LH (Black)
-
27292000011 > Clamp> Clamp
-
28207063060 Hex Screw M6 x 30Hex Screw M6 x 30
-
29269500820 Latch RetainerLatch Retainer
-
30293250100 GasketGasket
-
31269500719 LatchLatch
-
32211000037 Screw 10-14 x 7/8Screw 10-14 x 7/8
-
33291001519 Bumper Plug (Black)Bumper Plug (Black)
-
34291001035 Nose Bumper (Black)Nose Bumper (Black)
-
35269500928 Box DoorBox Door
-
36269500717 Gloves BoxGloves Box
-
37232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
38234062600 Flat Washer M6Flat Washer M6
-
39291001013 Spring Support (Storage Cover)Spring Support (Storage Cover)
-
40234161601 Lock Washer 6 mmLock Washer 6 mm
-
41207162560 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
42293800060 Loctite 243, 10mlLoctite 243, 10ml
