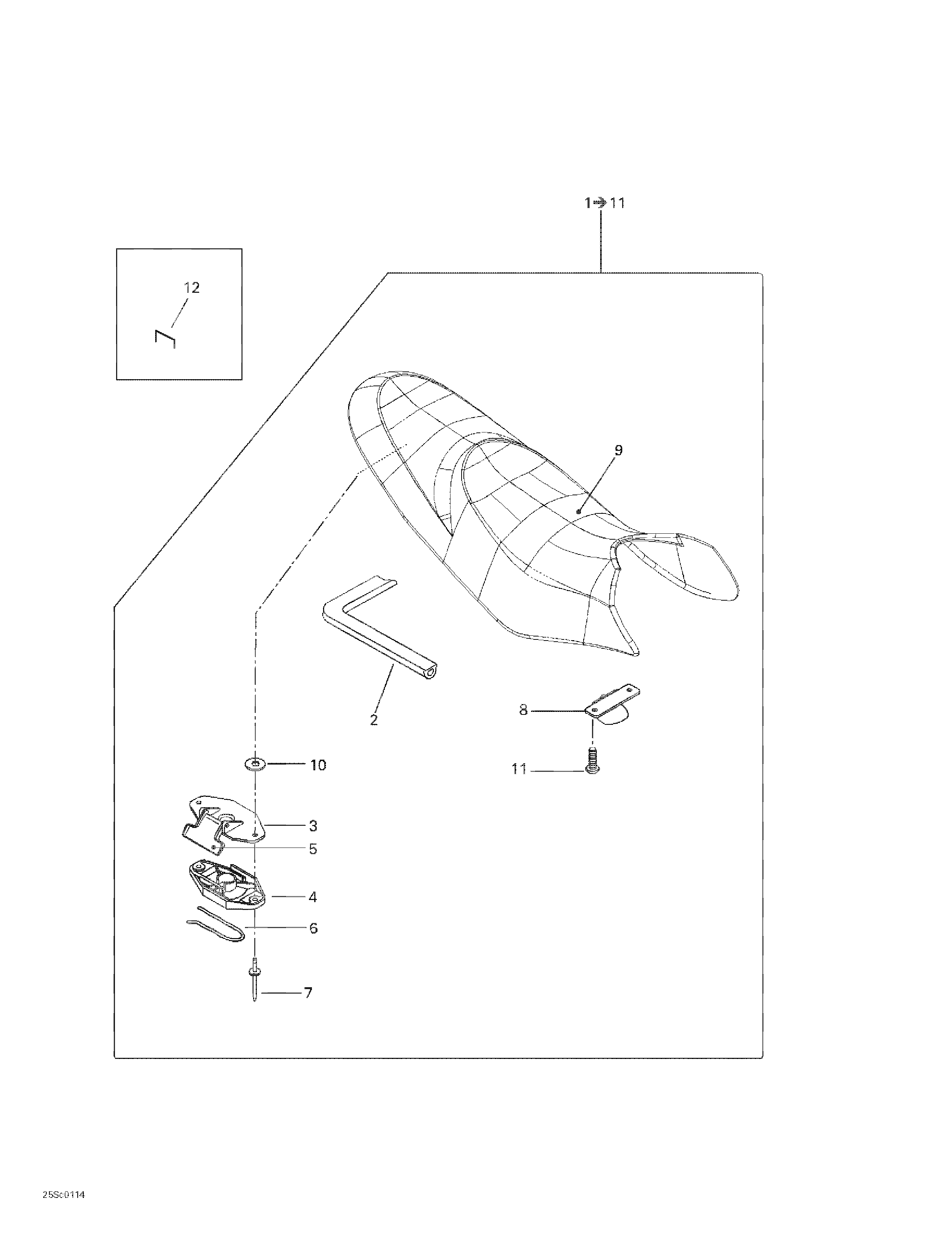

09- Seat для BRP RX X, 5589 - 2001
-
№АртикулНазвание
-
1269000578 Seat Ass'y. Includes 1 - 11.Seat Ass'y. Includes 1 - 11.
-
2293200062 SealSeal
-
3269700020 Latch CoverLatch Cover
-
4269000015 Latch BaseLatch Base
-
5269000016 Latch LeverLatch Lever
-
6269700017 Latch SpringLatch Spring
-
7293150074 Pop Rivet 1/4''Pop Rivet 1/4''
-
8291001485 Seat HookSeat Hook
-
10234061600 Flat Washer 6 mmFlat Washer 6 mm
-
11205961060 Hex Screw M6 x 10Hex Screw M6 x 10
-
12293730025 Staple 1/4''Staple 1/4''
