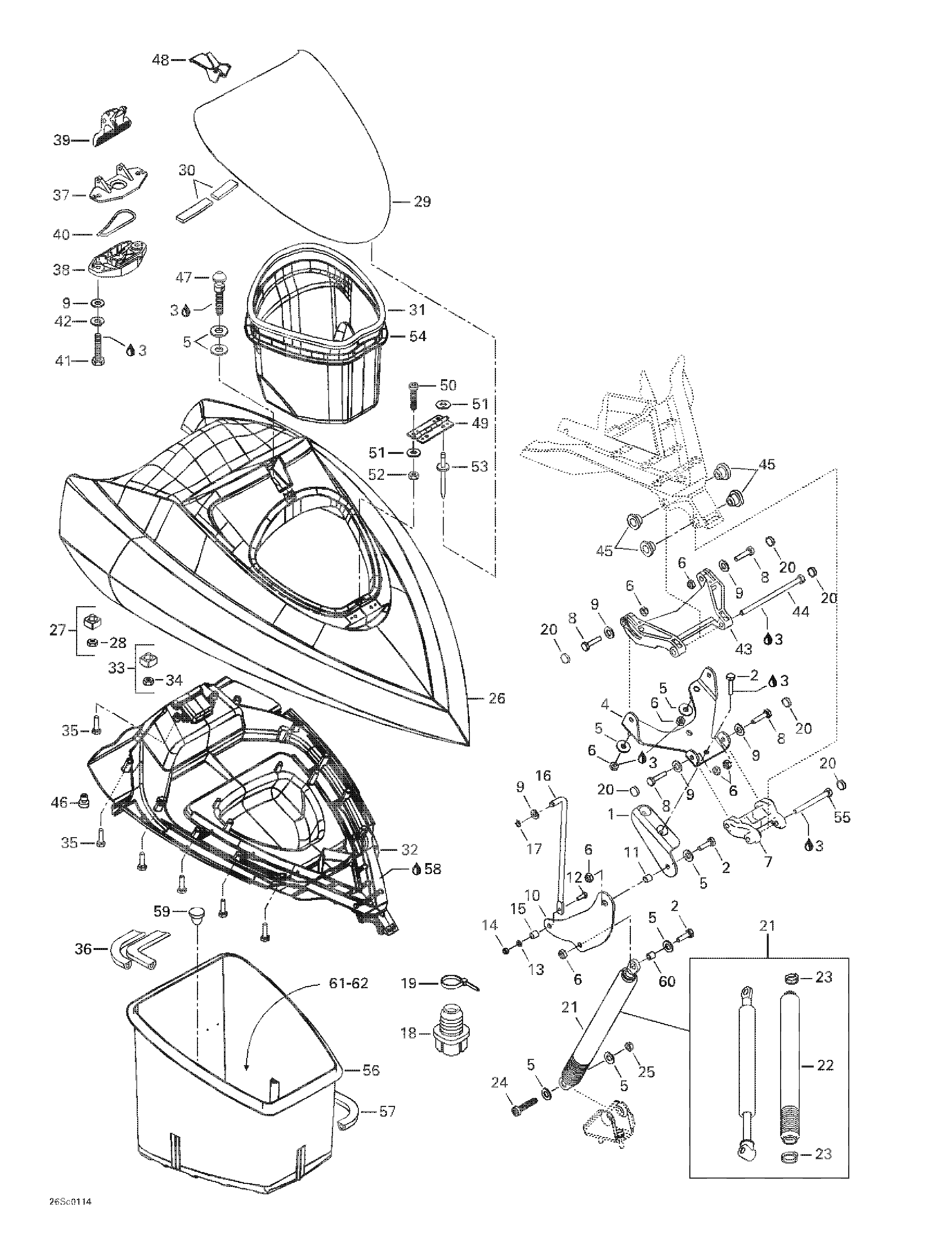

09- Front Storage Compartment для BRP RX X, 5589 - 2001
-
№АртикулНазвание
-
1269500846 Lever SupportLever Support
-
2207162060 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
3293800060 Loctite 243, 10mlLoctite 243, 10ml
-
4269500708 Pivot SupportPivot Support
-
5234062600 Flat Washer 6 mmFlat Washer 6 mm
-
6232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
7269500704 Front ArmFront Arm
-
8211000022 Hex Screw Special M6 X 25Hex Screw Special M6 X 25
-
9234061600 Flat Washer 6 mmFlat Washer 6 mm
-
10269500840 LeverLever
-
11291000536 SpacerSpacer
-
12207141660 Hex Screw M4 x 16Hex Screw M4 x 16
-
13234041600 Flat Washer 4 mmFlat Washer 4 mm
-
14232541600 Elastic Stop Nut M4Elastic Stop Nut M4
-
15269500841 SpacerSpacer
-
16269500842 RodRod
-
17293370005 Circlip 6 mmCirclip 6 mm
-
18293720063 Cable GrommetCable Grommet
-
19414115200 Tie RapTie Rap
-
20414436900 Snap Cap (Black)Snap Cap (Black)
-
21269500843 Gaz Shock Ass'y. Includes 21 - 23.Gaz Shock Ass'y. Includes 21 - 23.
-
22269500845 BellowBellow
-
23293750001 Tie Rap 94mmTie Rap 94mm
-
24205564560 Socket Head Screw M6 x 45 (Scotch Grip)Socket Head Screw M6 x 45 (Scotch Grip)
-
25232361600 Nut M6Nut M6
-
26289100040 Cover. Includes 26 - 28.Cover. Includes 26 - 28.
-
27269500252 Nut Housing Ass'y. Includes 27 - 28.Nut Housing Ass'y. Includes 27 - 28.
-
28232061600 Nut M6Nut M6
-
29289100022 Access CoverAccess Cover
-
30293200003 Tray SealTray Seal
-
31293200017 Neoprene SealNeoprene Seal
-
32269500702 Lower Strorage CoverLower Strorage Cover
-
33269500252 Nut Housing Ass'y. Includes 33 - 34.Nut Housing Ass'y. Includes 33 - 34.
-
34232061600 Nut M6Nut M6
-
35241141360 Hex. Flanged Screw K40 X 13Hex. Flanged Screw K40 X 13
-
36293200017 Neoprene SealNeoprene Seal
-
37269700020 Latch CoverLatch Cover
-
38269000015 Latch BaseLatch Base
-
39269000016 Latch LeverLatch Lever
-
40269700017 Latch SpringLatch Spring
-
41207063060 Hex. Screw M6 x 30Hex. Screw M6 x 30
-
42234161601 Lock Washer 6 mmLock Washer 6 mm
-
43269500705 Rear ArmRear Arm
-
44230060060 Hex. Screw M6 x 100Hex. Screw M6 x 100
-
45269500706 SleeveSleeve
-
46293830005 Rubber PlugRubber Plug
-
47291001242 Latch StudLatch Stud
-
48269500530 LatchLatch
-
49269500338 HingeHinge
-
50205451660 Socket Head Screw M5 x 16Socket Head Screw M5 x 16
-
51234052600 Flat Washer 5 mmFlat Washer 5 mm
-
52232551600 Elastic Stop Nut M5Elastic Stop Nut M5
-
53204000081 Rivet 3/16Rivet 3/16
-
54269501121 Gloves BoxGloves Box
-
55207066060 Hex. Screw M6 x 60Hex. Screw M6 x 60
-
56269500691 Strorage TrayStrorage Tray
-
57293200020 Seal TraySeal Tray
-
58413708300 Glue Tube, Loctite 454, 20gGlue Tube, Loctite 454, 20g
-
59293830005 Rubber PlugRubber Plug
-
62289100037 Number Plate DecalNumber Plate Decal
