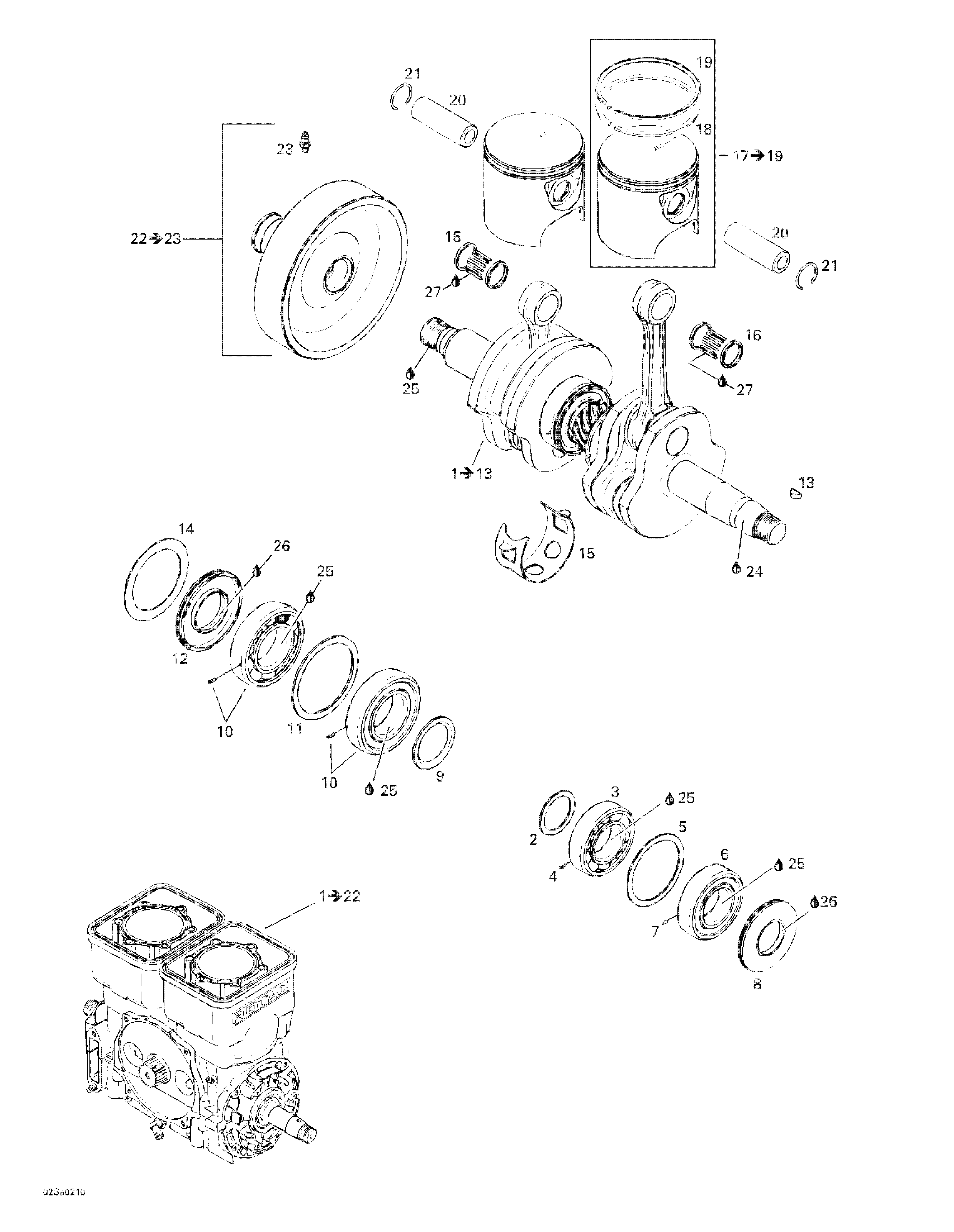

01- Crankshaft And Pistons для BRP GTI LE, 5560/5561/6117 - 2002
-
№АртикулНазвание
-
1290071703 Short Block Ass'y (Silver). Includes 1 - 22.Short Block Ass'y (Silver). Includes 1 - 22.
-
1290887867 Crankshaft Ass'y. Includes 1 - 13.Crankshaft Ass'y. Includes 1 - 13.
-
2290827447 Distance RingDistance Ring
-
3420832538 Ball Bearing 6206 Ass'y. Includes 3 - 4.Ball Bearing 6206 Ass'y. Includes 3 - 4.
-
4420929972 Dowel PinDowel Pin
-
5420827050 Retaining DiskRetaining Disk
-
6420832538 Ball Bearing 6206. Includes 6 - 7.Ball Bearing 6206. Includes 6 - 7.
-
7420929972 Dowel PinDowel Pin
-
8290830749 Oil SealOil Seal
-
9420827760 Distance RingDistance Ring
-
10420832574 Ball Bearing Ass'yBall Bearing Ass'y
-
11420927710 Retaining DiskRetaining Disk
-
12290831952 Oil SealOil Seal
-
13420246055 Woodruff KeyWoodruff Key
-
14290926060 Retaining ShimRetaining Shim
-
15290926070 Retaining RingRetaining Ring
-
16290832420 Needle BearingNeedle Bearing
-
17290887670 Piston with 2 Rings, 81.90 mm. Includes 17 - 19.Piston with 2 Rings, 81.90 mm. Includes 17 - 19.
-
290887671 Piston with 2 Rings, 82.15 mmPiston with 2 Rings, 82.15 mm
-
290887672 Piston with 2 Rings, 82.40 mmPiston with 2 Rings, 82.40 mm
-
18290815080 Rectangular Ring 82.00 mmRectangular Ring 82.00 mm
-
290815081 Rectangular Ring 82.25 mmRectangular Ring 82.25 mm
-
290815082 Rectangular Ring 82.50 mmRectangular Ring 82.50 mm
-
19290815070 Semi-Trapez Ring 82.00 mmSemi-Trapez Ring 82.00 mm
-
290815071 Semi-Trapez Ring 82.25 mmSemi-Trapez Ring 82.25 mm
-
290815072 Semi-Trapez Ring 82.50 mmSemi-Trapez Ring 82.50 mm
-
20290916402 Piston PinPiston Pin
-
21420845100 CirclipCirclip
-
22290958012 Flywheel Clutch Ass'y. Includes 22 - 23.Flywheel Clutch Ass'y. Includes 22 - 23.
-
23290499113 Grease FittingGrease Fitting
-
24293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
25293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
26413707000 Molykote 111Molykote 111
-
27413802900 Injection Oil (12 x 1 Liter)Injection Oil (12 x 1 Liter)
-
28290886319 Engine Gasket Set (Not Shown)Engine Gasket Set (Not Shown)
-
29290886318 Cylinder Gasket Set (Not Shown)Cylinder Gasket Set (Not Shown)
