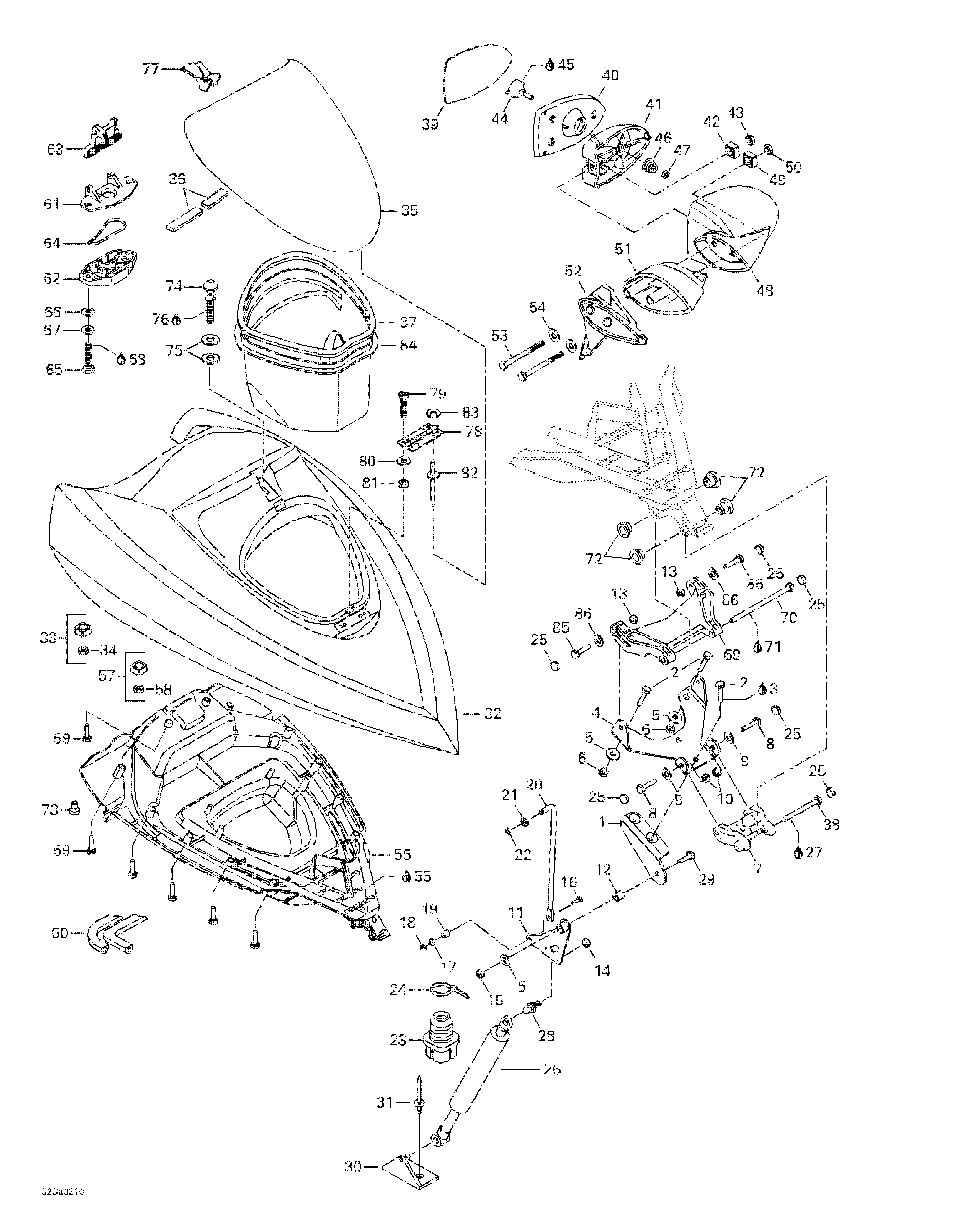

09- Front Storage Compartment для BRP GTI LE, 5560/5561/6117 - 2002
-
№АртикулНазвание
-
1269500846 Support LeverSupport Lever
-
2207162060 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
3293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
4269500703 Pivot SupportPivot Support
-
5234062600 Flat Washer 6 mmFlat Washer 6 mm
-
6232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
7269500704 Front ArmFront Arm
-
8211000022 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
9234061600 Flat Washer 6 mmFlat Washer 6 mm
-
10232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
11269501020 LeverLever
-
12269501022 SpacerSpacer
-
13232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
14232581650 Elastic Stop Nut M8Elastic Stop Nut M8
-
15232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
16207141660 Hex. Screw M4 x 16Hex. Screw M4 x 16
-
17234041600 Flat Washer 4 mmFlat Washer 4 mm
-
18232541600 Elastic Stop Nut M4Elastic Stop Nut M4
-
19269500841 SpacerSpacer
-
20269500842 RodRod
-
21234061600 Flat Washer 6 mmFlat Washer 6 mm
-
22293370005 Circlip 6 mmCirclip 6 mm
-
23293720070 Cable GrommetCable Grommet
-
24414115200 Tie RapTie Rap
-
25414436900 Snap Cap (Black)Snap Cap (Black)
-
26269500988 Gaz ShockGaz Shock
-
27293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
28250300016 Ball StudBall Stud
-
29207163060 Hex. Screw M6 x 30Hex. Screw M6 x 30
-
30291001618 Shock SupportShock Support
-
31293150037 RivetRivet
-
32269501056 Cover (Earthen Clay met.). Includes 32 - 34.Cover (Earthen Clay met.). Includes 32 - 34.
-
33269500252 Nut Housing Ass'y. Includes 33 - 34.Nut Housing Ass'y. Includes 33 - 34.
-
34232061600 Nut M6Nut M6
-
35269501063 Access Cover (Earthen Clay met.). Includes 35 - 37.Access Cover (Earthen Clay met.). Includes 35 - 37.
-
36293200003 Tray Seal (Meter)Tray Seal (Meter)
-
37293200017 Neoprene Seal (Meter)Neoprene Seal (Meter)
-
38207066060 Hex. Screw M6 x 60Hex. Screw M6 x 60
-
39269500687 R.H. MirrorR.H. Mirror
-
269500788 LH MirrorLH Mirror
-
40269500697 Frame MirrorFrame Mirror
-
41269500807 Housing SupportHousing Support
-
42269500813 Nut Housing Ass'y. Includes 42 - 43.Nut Housing Ass'y. Includes 42 - 43.
-
43232581650 Elastic Stop Nut M8Elastic Stop Nut M8
-
44269500079 Mirror Ball JointMirror Ball Joint
-
45293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
46269500453 Mirror SpringMirror Spring
-
47232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
48269501071 R.H. Mirror Shell (Earthen Clay met.). Includes 48 - 50.R.H. Mirror Shell (Earthen Clay met.). Includes 48 - 50.
-
269501073 LH Mirror Shell (Earthen Clay met.)LH Mirror Shell (Earthen Clay met.)
-
49269500813 Nut Housing Ass'y. Includes 49 - 50.Nut Housing Ass'y. Includes 49 - 50.
-
50232581650 Elastic Stop Nut M8Elastic Stop Nut M8
-
51269501075 R.H. Mirror Support (Earthen Clay met.)R.H. Mirror Support (Earthen Clay met.)
-
269501077 LH Mirror Support (Earthen Clay met.)LH Mirror Support (Earthen Clay met.)
-
52269500792 R.H. Spacer (Black)R.H. Spacer (Black)
-
269500793 LH Spacer (Black)LH Spacer (Black)
-
53230082060 Hex. Screw M8 x 120Hex. Screw M8 x 120
-
54234082600 Flat Washer 8 mmFlat Washer 8 mm
-
55413708300 Glue Tube, Loctite 454, 20 gGlue Tube, Loctite 454, 20 g
-
56269500702 Lower Strorage CoverLower Strorage Cover
-
57269500252 Nut Housing Ass'y. Includes 57 - 58.Nut Housing Ass'y. Includes 57 - 58.
-
58232061600 Hex. Nut M6Hex. Nut M6
-
59241141360 Hex. Flanged Screw K40 x 13Hex. Flanged Screw K40 x 13
-
60293200017 Neoprene Seal (Meter)Neoprene Seal (Meter)
-
61269700076 Latch CoverLatch Cover
-
62269000015 Latch BaseLatch Base
-
63269700077 Latch LeverLatch Lever
-
64269700017 Latch SpringLatch Spring
-
65207063060 Hex. Screw M6 x 30Hex. Screw M6 x 30
-
66234061600 Flat Washer 6 mmFlat Washer 6 mm
-
67234161601 Lock Washer 6 mmLock Washer 6 mm
-
68293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
69269500705 Rear ArmRear Arm
-
70230060060 Hex. Screw M6 x 100Hex. Screw M6 x 100
-
71293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
72269500706 SleeveSleeve
-
73293830005 Rubber PlugRubber Plug
-
74291001242 Latch StudLatch Stud
-
75234062600 Flat Washer 6 mmFlat Washer 6 mm
-
76293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
77269501125 LatchLatch
-
78269500338 HingeHinge
-
79205451660 Socket Head Screw M5 x 16Socket Head Screw M5 x 16
-
80234052600 Flat Washer 5 mmFlat Washer 5 mm
-
81232551600 Elastic Stop Nut M5Elastic Stop Nut M5
-
82204000081 Pop Rivet 3/16''Pop Rivet 3/16''
-
83234052600 Flat Washer 5 mmFlat Washer 5 mm
-
84269501121 Gloves BoxGloves Box
-
85211000022 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
86234061600 Flat Washer 6 mmFlat Washer 6 mm
