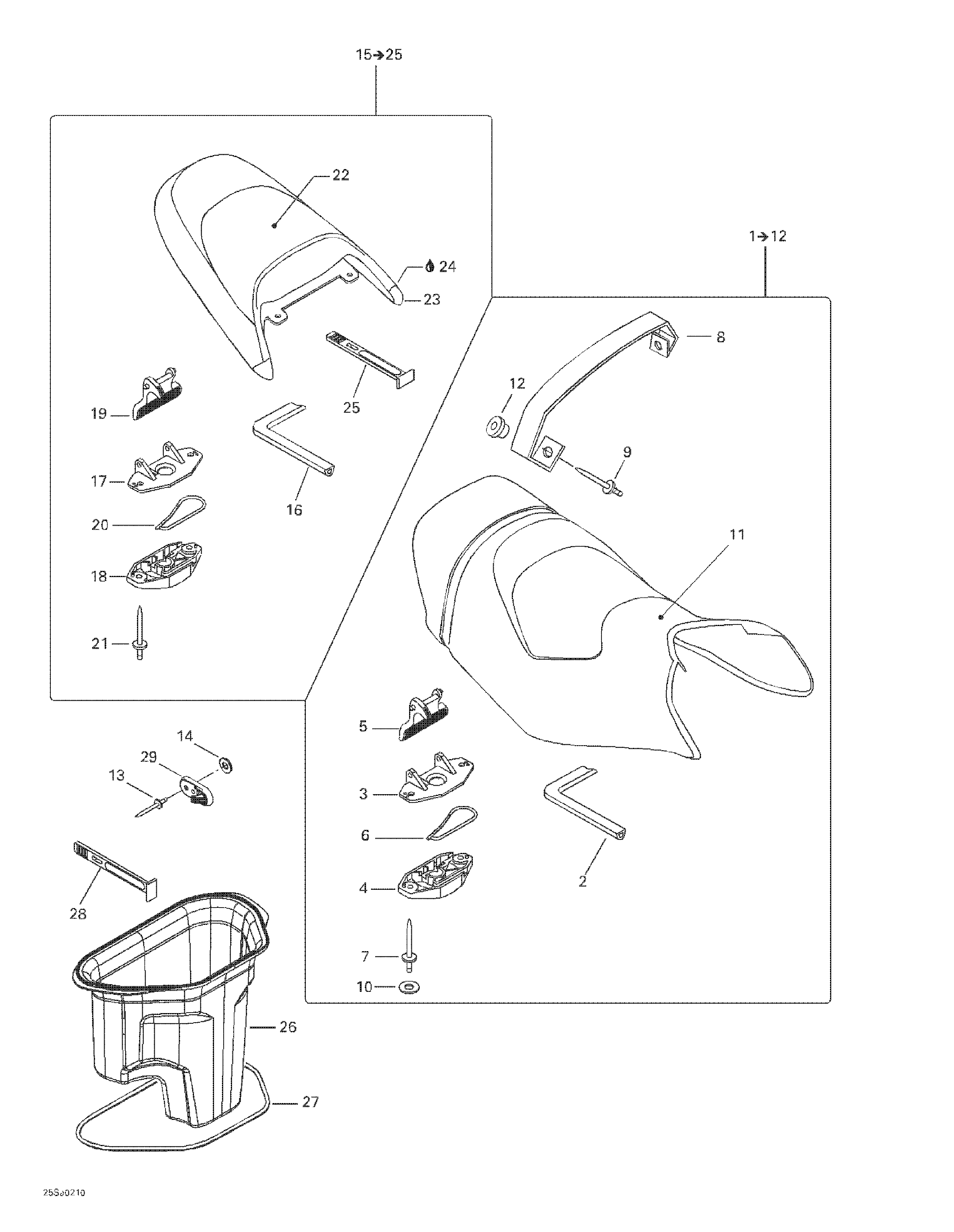

09- Seat для BRP GTI LE, 5560/5561/6117 - 2002
-
№АртикулНазвание
-
1269000779 Seat Ass'y (Earthen Clay). Includes 1 - 12.Seat Ass'y (Earthen Clay). Includes 1 - 12.
-
2293200062 Seal (Meter)Seal (Meter)
-
3269700076 Latch CoverLatch Cover
-
4269000015 Latch BaseLatch Base
-
5269700077 Latch LeverLatch Lever
-
6269700017 Latch SpringLatch Spring
-
7293150074 Pop Rivet 1/4''Pop Rivet 1/4''
-
8269000781 Seat Strap (Earthen Clay)Seat Strap (Earthen Clay)
-
9293150078 Pop RivetPop Rivet
-
10234061600 Flat Washer 6 mmFlat Washer 6 mm
-
11269000918 Cover and Foam (Earthen Clay)Cover and Foam (Earthen Clay)
-
12293720067 GrommetGrommet
-
13293150039 Rivet 3/16''Rivet 3/16''
-
14234052600 Flat Washer 5 mmFlat Washer 5 mm
-
15269000775 Rear Seat (Earthen Clay). Includes 15 - 25.Rear Seat (Earthen Clay). Includes 15 - 25.
-
16293200062 Seal (Meter)Seal (Meter)
-
17269700076 Latch CoverLatch Cover
-
18269000015 Latch BaseLatch Base
-
19269700077 Latch LeverLatch Lever
-
20269700017 Latch SpringLatch Spring
-
21293150074 Pop Rivet 1/4''Pop Rivet 1/4''
-
22269000920 Rear Seat Cover (Earthen Clay)Rear Seat Cover (Earthen Clay)
-
23269000777 R.H. Seat Corner (Earthen Clay)R.H. Seat Corner (Earthen Clay)
-
269000778 LH Seat Corner (Earthen Clay)LH Seat Corner (Earthen Clay)
-
24413705800 Loctite 414, 29.5 ccLoctite 414, 29.5 cc
-
25269500408 StrapStrap
-
26269500990 Rear TrayRear Tray
-
27293250008 GasketGasket
-
28269500408 StrapStrap
-
29269500521 HookHook
-
30293730005 StapleStaple
