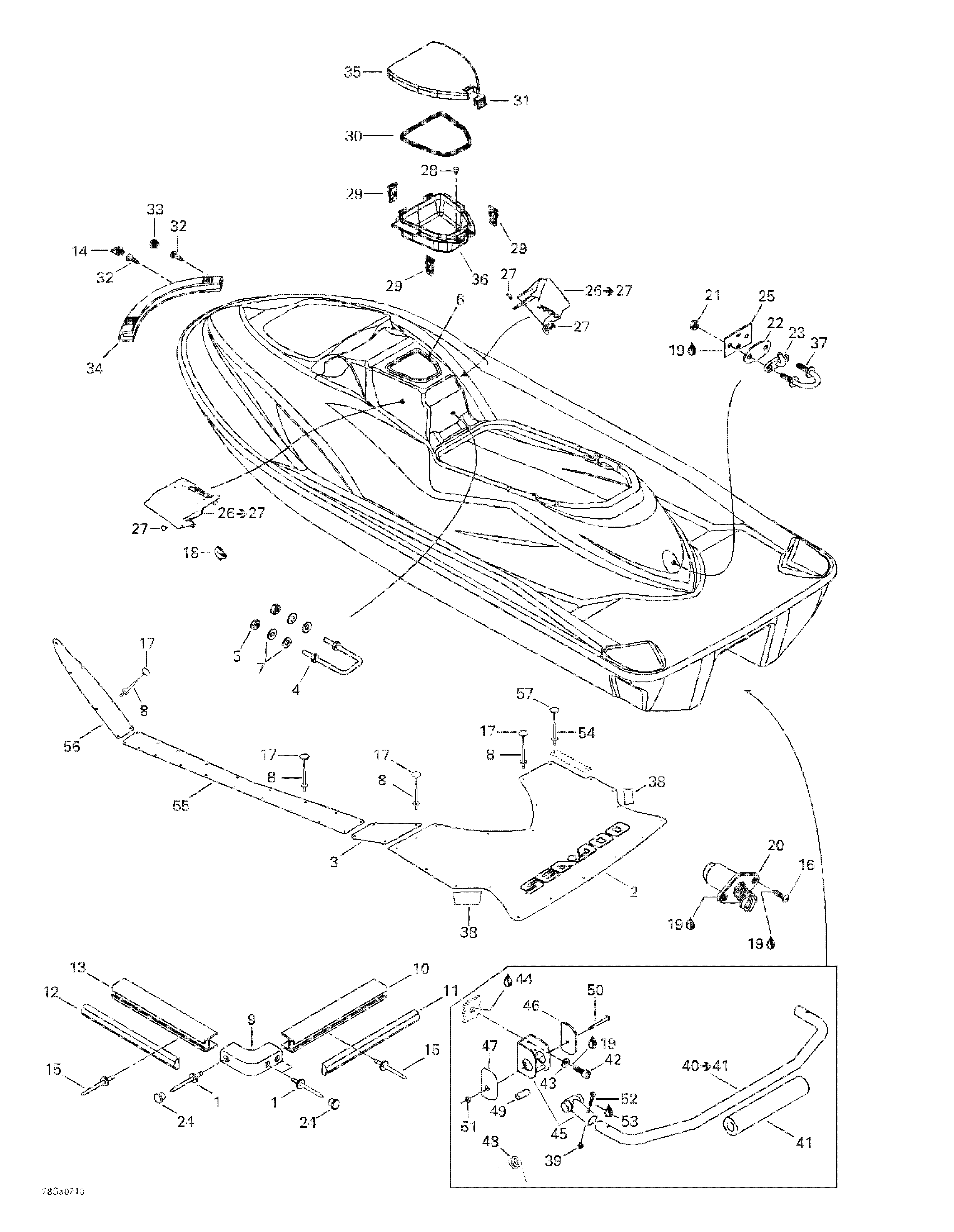

09- Body, Rear View для BRP GTI LE, 5560/5561/6117 - 2002
-
№АртикулНазвание
-
1293150013 Pop Rivet 3/16''Pop Rivet 3/16''
-
2291001679 Rear Carpet (Indigo Blue)Rear Carpet (Indigo Blue)
-
3291001737 R.H. Rear Carpet (Indigo Blue)R.H. Rear Carpet (Indigo Blue)
-
291001738 LH Rear Carpet (Indigo Blue)LH Rear Carpet (Indigo Blue)
-
4291001527 U ClampU Clamp
-
5232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
6293250099 GasketGasket
-
7234062600 Flat Washer 6 mmFlat Washer 6 mm
-
8293150036 Pop Rivet 1/8''Pop Rivet 1/8''
-
9291001349 Bumper Corner (Indigo Blue)Bumper Corner (Indigo Blue)
-
10291001673 Rear Bumper (Indigo Blue)Rear Bumper (Indigo Blue)
-
11291001674 Rear Bumper Trim (Indigo Blue)Rear Bumper Trim (Indigo Blue)
-
12291001672 Side Bumper Trim (Indigo Blue)Side Bumper Trim (Indigo Blue)
-
13291001671 Side Bumper (Indigo Blue)Side Bumper (Indigo Blue)
-
14293000059 Bumper Plug (Indigo Blue)Bumper Plug (Indigo Blue)
-
15293150005 Pop Rivet 3/16''Pop Rivet 3/16''
-
16211000021 Phillips ScrewPhillips Screw
-
17293000053 Snap Cap (Indigo Blue)Snap Cap (Indigo Blue)
-
18291001730 SpacerSpacer
-
19296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
20292000685 Drain PlugDrain Plug
-
21232581650 Elastic Stop Nut M8Elastic Stop Nut M8
-
22291001680 Finition Plate (Indigo Blue)Finition Plate (Indigo Blue)
-
23291001232 HookHook
-
24293000048 Bumper Plug (Indigo Blue)Bumper Plug (Indigo Blue)
-
25291001387 Retainer PlateRetainer Plate
-
26291001681 R.H. Grill Ass'y (Indigo Blue). Includes 26 - 27.R.H. Grill Ass'y (Indigo Blue). Includes 26 - 27.
-
291001683 LH Grill Ass'y (Indigo Blue)LH Grill Ass'y (Indigo Blue)
-
27293730010 Dart (Black)Dart (Black)
-
28293830005 Rubber PlugRubber Plug
-
29269500820 Retainer LatchRetainer Latch
-
30269501129 GasketGasket
-
31269500719 LatchLatch
-
32211000037 Phillips Screw 10-14 x 7/8''Phillips Screw 10-14 x 7/8''
-
33291001541 Bumper Plug (Indigo Blue)Bumper Plug (Indigo Blue)
-
34291000862 Nose Bumper (Indigo Blue)Nose Bumper (Indigo Blue)
-
35269500928 Box DoorBox Door
-
36269500717 Gloves BoxGloves Box
-
37292000011 U-ClampU-Clamp
-
38291001588 Anti-Skid (White)Anti-Skid (White)
-
39232361600 Nut M6Nut M6
-
40291001691 Stair Tube. Includes 40 - 41.Stair Tube. Includes 40 - 41.
-
41292000593 Protector TubeProtector Tube
-
42250000076 Socket Head Screw M6 x 25 (Scotch Grip)Socket Head Screw M6 x 25 (Scotch Grip)
-
43234061600 Flat Washer 6 mmFlat Washer 6 mm
-
44293800066 Sealant, Loctite 5900, 300 mlSealant, Loctite 5900, 300 ml
-
45292000539 Support Ass'ySupport Ass'y
-
46292000540 R.H. Support CapR.H. Support Cap
-
47292000548 LH Support CapLH Support Cap
-
48292000541 Recall SpringRecall Spring
-
50211000186 Phillips ScrewPhillips Screw
-
51212000005 Nut 1/4 - 20Nut 1/4 - 20
-
52205063560 Socket Head Screw M6 x 35Socket Head Screw M6 x 35
-
53293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
54293150016 Pop Rivet 3/16''Pop Rivet 3/16''
-
55291001703 R.H. Center Carpet (Indigo Blue)R.H. Center Carpet (Indigo Blue)
-
291001704 LH Center Carpet (Indigo Blue)LH Center Carpet (Indigo Blue)
-
56291001739 R.H. Front Carpet (Indigo Blue)R.H. Front Carpet (Indigo Blue)
-
291001740 LH Rear Carpet (Indigo Blue)LH Rear Carpet (Indigo Blue)
-
57293000014 Snap Cap (Black)Snap Cap (Black)
