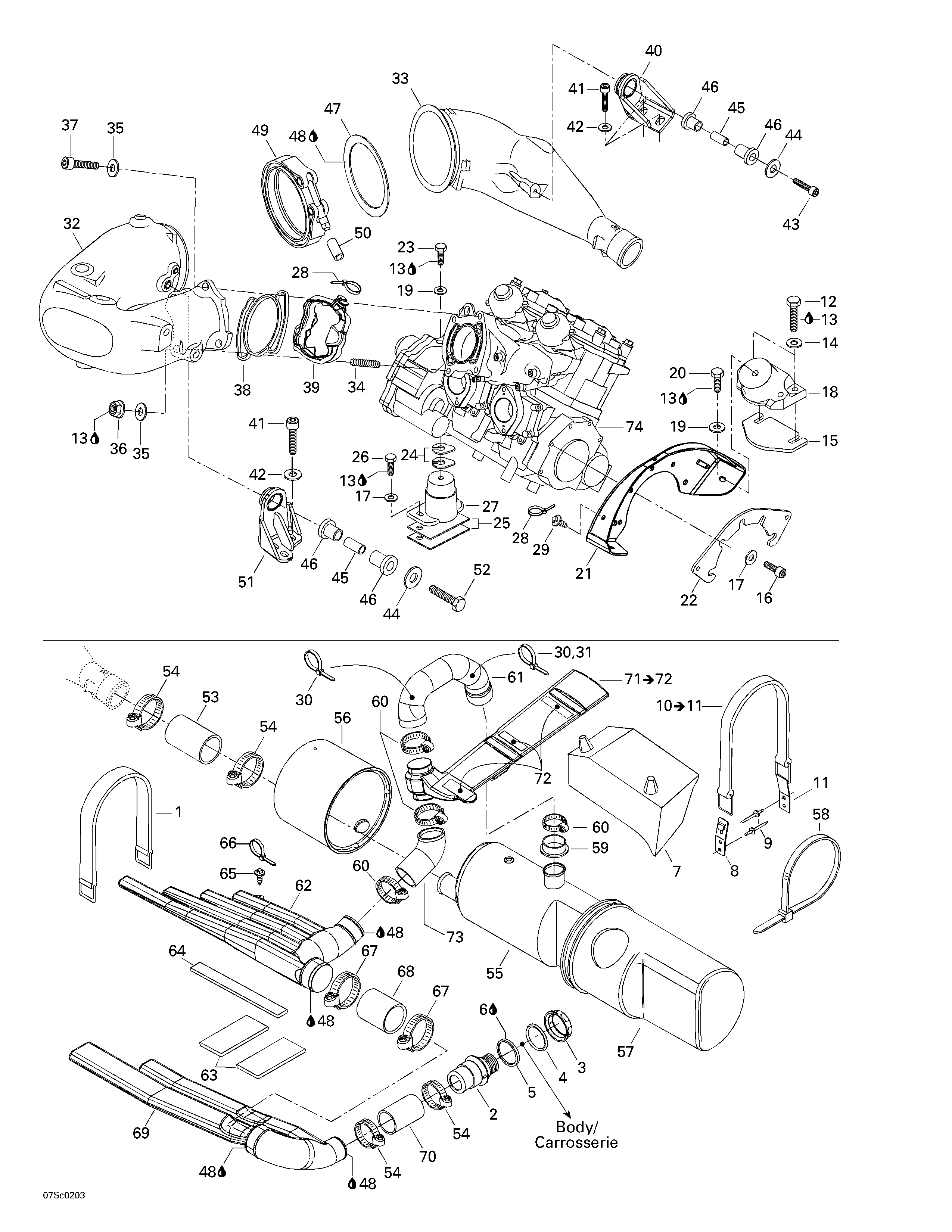

01- Engine Support And Muffler для BRP RX, 5579/5580/5581/5582 - 2002
-
№АртикулНазвание
-
1293850021 StrapStrap
-
2274000843 Exhaust OutletExhaust Outlet
-
3274000224 Nut M72Nut M72
-
4274000225 Stabilizing WasherStabilizing Washer
-
5293250041 GasketGasket
-
6296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
7292000782 Resonator SupportResonator Support
-
8293850024 Strap ClipStrap Clip
-
9293150037 Rivet Avdel 3/16''Rivet Avdel 3/16''
-
10293850026 Strap. Includes 10 - 11.Strap. Includes 10 - 11.
-
11293850024 Strap ClipStrap Clip
-
12207184060 Hex. Screw M8 x 40Hex. Screw M8 x 40
-
13293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
14234081600 Flat Washer 8 mmFlat Washer 8 mm
-
15270000122 Shim 0.3 mmShim 0.3 mm
-
270000123 Shim 1.3 mmShim 1.3 mm
-
16205582560 Socket Head Screw M8 x 25 (Scotch Grip)Socket Head Screw M8 x 25 (Scotch Grip)
-
17234081600 Flat Washer 8 mmFlat Washer 8 mm
-
18270000421 Rubber MountRubber Mount
-
19234082600 Flat Washer 8 mmFlat Washer 8 mm
-
20207181660 Hex. Screw M8 x 16Hex. Screw M8 x 16
-
21270000359 Engine Support (Black)Engine Support (Black)
-
22293250110 GasketGasket
-
23207182060 Hex. Screw M8 x 20Hex. Screw M8 x 20
-
24270000024 Shim 0.4 mmShim 0.4 mm
-
270000025 Shim 1.3 mmShim 1.3 mm
-
25270000122 Shim 0.3 mmShim 0.3 mm
-
270000123 Shim 1.3 mmShim 1.3 mm
-
26207184060 Hex. Screw M8 x 40Hex. Screw M8 x 40
-
27270000422 Rubber MountRubber Mount
-
28293750002 Tie Rap 130 mmTie Rap 130 mm
-
29293730018 Dart MountDart Mount
-
30293750008 Tie Rap 350 mmTie Rap 350 mm
-
31414115200 Tie RapTie Rap
-
32274000928 Head PipeHead Pipe
-
33274000871 Exhaust ConeExhaust Cone
-
34250300008 Stud M10 x 55Stud M10 x 55
-
35211200051 Flat WasherFlat Washer
-
36233101600 Hex. Flanged Nut M10Hex. Flanged Nut M10
-
37244003560 Socket Head Screw M10 x 35 (Scotch Grip)Socket Head Screw M10 x 35 (Scotch Grip)
-
38290931990 GasketGasket
-
39274000862 Pick-up EnveloppePick-up Enveloppe
-
40274000878 Pipe SupportPipe Support
-
41244083060 Socket Head Screw M8 x 30 (Scotch Grip)Socket Head Screw M8 x 30 (Scotch Grip)
-
42250200012 Flat Washer 8.4 mmFlat Washer 8.4 mm
-
43244004060 Socket Head Screw M10 x 40 (Scotch Grip)Socket Head Screw M10 x 40 (Scotch Grip)
-
44234002600 Flat Washer 10 mmFlat Washer 10 mm
-
45274000861 BushingBushing
-
46293830065 Bushing RubberBushing Rubber
-
47274000511 Sealing RingSealing Ring
-
48293800090 Sealant, Loctite 30542, 80 mlSealant, Loctite 30542, 80 ml
-
49274000510 ClampClamp
-
50275000007 Hose 8 mm (Meter)Hose 8 mm (Meter)
-
51274000890 Support Pipe (Black)Support Pipe (Black)
-
52245004060 Hex. Screw M10 x 40 (Scotch Grip)Hex. Screw M10 x 40 (Scotch Grip)
-
53274000530 Exhaust HoseExhaust Hose
-
54293650064 Tridon ClampTridon Clamp
-
55274000749 Muffler (Black)Muffler (Black)
-
56274000796 Muffler CoverMuffler Cover
-
57274000799 Muffler CoverMuffler Cover
-
58293750020 Tie Rap 838 mmTie Rap 838 mm
-
59274000766 Hose AdaptorHose Adaptor
-
60293650107 Tridon ClampTridon Clamp
-
61274000893 Exhaust HoseExhaust Hose
-
62274000700 L.H. Resonator (Upper)L.H. Resonator (Upper)
-
63274000752 Rubber PadRubber Pad
-
64274000785 Rubber PadRubber Pad
-
65293730018 Dart MountDart Mount
-
66414115200 Tie RapTie Rap
-
67204000079 Clamp TridonClamp Tridon
-
68274000726 Exhaust HoseExhaust Hose
-
69274000701 L.H. Resonator (Lower)L.H. Resonator (Lower)
-
70274000616 Exhaust HoseExhaust Hose
-
71274000902 Resonator Ass'y. Includes 71 - 72.Resonator Ass'y. Includes 71 - 72.
-
72274000752 Rubber PadRubber Pad
-
73274000894 Resonator HoseResonator Hose
-
74270000522 Rotax Engine 947Rotax Engine 947
