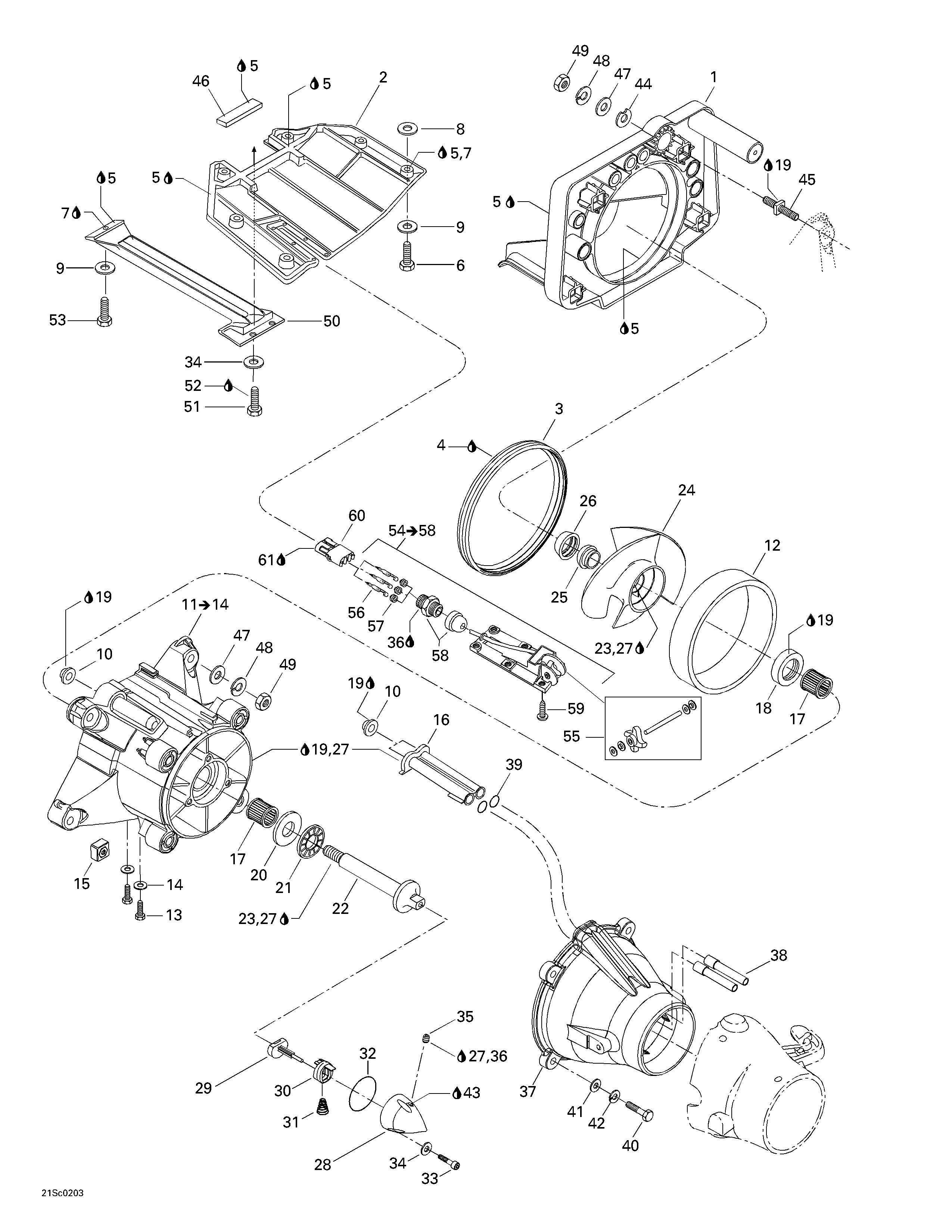

05- Drive And Propulsion System для BRP RX, 5579/5580/5581/5582 - 2002
-
№АртикулНазвание
-
1271001132 Pump SupportPump Support
-
2271001229 Riding Plate (Black)Riding Plate (Black)
-
3293200051 Neoprene SealNeoprene Seal
-
4413708300 Glue Tube, Loctite 454, 20 gGlue Tube, Loctite 454, 20 g
-
5293800066 Sealant, Loctite 5900, 300 mlSealant, Loctite 5900, 300 ml
-
6207383060 Hex. Screw M8 x 30 (Scotch Grip)Hex. Screw M8 x 30 (Scotch Grip)
-
7296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
8234002600 Flat Washer 10 mmFlat Washer 10 mm
-
9234081600 Flat Washer 8 mmFlat Washer 8 mm
-
10293250084 O-RingO-Ring
-
11271001346 Impeller Housing Ass'y. Includes 11 - 14.Impeller Housing Ass'y. Includes 11 - 14.
-
12271000653 Wear RingWear Ring
-
13250000040 Hex. Screw 10-14 x 3/8''Hex. Screw 10-14 x 3/8''
-
14234051600 Flat Washer 5 mmFlat Washer 5 mm
-
15211100033 Square Nut M8 x 1.25Square Nut M8 x 1.25
-
16271000785 Water OutletWater Outlet
-
17293350017 Needle BearingNeedle Bearing
-
18293200065 Double Lip SealDouble Lip Seal
-
19293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
20293350020 Thrust WasherThrust Washer
-
21293350022 Thrust BearingThrust Bearing
-
22271000965 Impeller ShaftImpeller Shaft
-
23293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
24271000920 Stainless Steel Impeller Ass'yStainless Steel Impeller Ass'y
-
25271000516 Impeller BootImpeller Boot
-
26271000517 RingRing
-
27293800041 Loctite, Primer NLoctite, Primer N
-
28271001250 Impeller CoverImpeller Cover
-
29271001124 Pusher Ass'yPusher Ass'y
-
30271001107 SliderSlider
-
31271001108 SpringSpring
-
32293300011 O-RingO-Ring
-
33205562560 Socket Head Screw M6 x 25 (Scotch Grip)Socket Head Screw M6 x 25 (Scotch Grip)
-
34234061600 Flat Washer 6 mmFlat Washer 6 mm
-
35211500001 Pipe Plug Socket 1/8-27 NPTPipe Plug Socket 1/8-27 NPT
-
36293800013 Loctite 56765, Pipe Sealant, 250 mlLoctite 56765, Pipe Sealant, 250 ml
-
37271001079 Venturi Ass'yVenturi Ass'y
-
38271001133 Siphon TubeSiphon Tube
-
39293300013 O-RingO-Ring
-
40207285060 Hex. Screw M8 x 50 (Scotch Grip)Hex. Screw M8 x 50 (Scotch Grip)
-
41234081600 Flat Washer 8 mmFlat Washer 8 mm
-
42234181601 Lock Washer 8 mmLock Washer 8 mm
-
43293600011 Synthetic OilSynthetic Oil
-
44272000053 ShimShim
-
45250300010 StudStud
-
46293200003 Seal (Meter)Seal (Meter)
-
47234002600 Flat Washer 10 mmFlat Washer 10 mm
-
48234101601 Lock Washer 10 mmLock Washer 10 mm
-
49232001600 Hex. Nut M10Hex. Nut M10
-
50271000763 Inlet GrateInlet Grate
-
51207161660 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
52293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
53207382560 Hex. Screw M8 x 25 (Scotch Grip)Hex. Screw M8 x 25 (Scotch Grip)
-
54278001595 Speed Sensor. Includes 54 - 58.Speed Sensor. Includes 54 - 58.
-
55295500108 Paddle Wheel KitPaddle Wheel Kit
-
56278000222 Male TerminalMale Terminal
-
57278000218 Wire SealWire Seal
-
58293710031 Electric ConnectorElectric Connector
-
59250000020 Phillips Screw M5 x 10 (Scotch Grip)Phillips Screw M5 x 10 (Scotch Grip)
-
60278000281 Female Housing (3 Circuits)Female Housing (3 Circuits)
-
61293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
