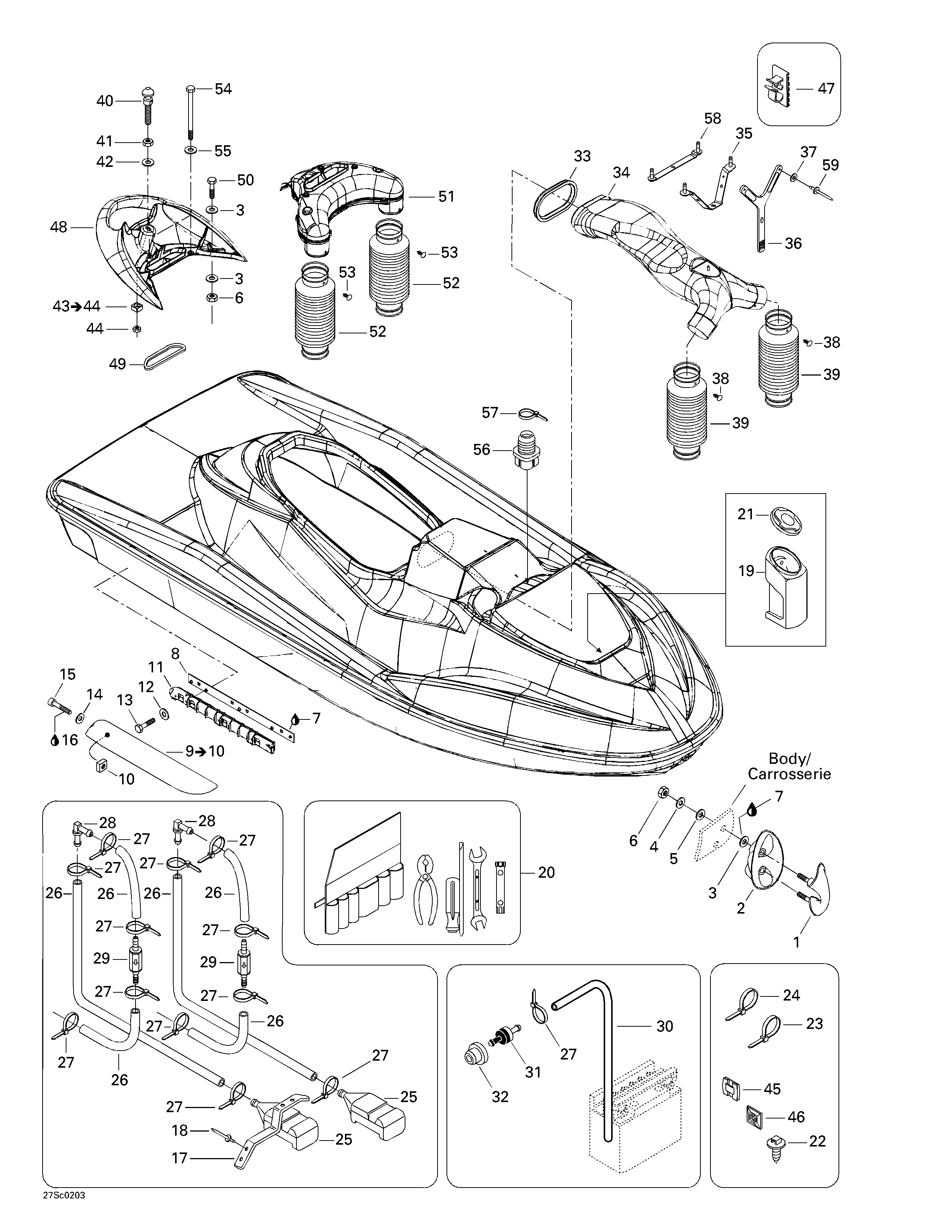

09- Body для BRP RX, 5579/5580/5581/5582 - 2002
-
№АртикулНазвание
-
1292000712 Bow Eye (Blue). RX (BLUE/BLEU).Bow Eye (Blue). RX (BLUE/BLEU).
-
292000708 Bow Eye (Black). RX (YELLOW/JAUNE).Bow Eye (Black). RX (YELLOW/JAUNE).
-
2292000638 Shell (Blue). RX (BLUE/BLEU).Shell (Blue). RX (BLUE/BLEU).
-
292000453 Shell (Black). RX (YELLOW/JAUNE).Shell (Black). RX (YELLOW/JAUNE).
-
3234081600 Flat Washer 8 mmFlat Washer 8 mm
-
4250200011 Flat Washer 8 mmFlat Washer 8 mm
-
5293830037 Rubber WasherRubber Washer
-
6232581650 Elastic Stop Nut M8Elastic Stop Nut M8
-
7296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
8293450210 R.H. Insert SponsonR.H. Insert Sponson
-
293450211 LH Insert SponsonLH Insert Sponson
-
9292000616 R.H. Sponson. Includes 9 - 10.R.H. Sponson. Includes 9 - 10.
-
292000617 LH SponsonLH Sponson
-
10232862600 Square Nut M6Square Nut M6
-
11292000627 R.H. Base SponsonR.H. Base Sponson
-
292000624 LH Base SponsonLH Base Sponson
-
12234061600 Flat Washer 6 mmFlat Washer 6 mm
-
13207363060 Hex. Screw M6 x 30 (Scotch Grip)Hex. Screw M6 x 30 (Scotch Grip)
-
14234061600 Flat Washer 6 mmFlat Washer 6 mm
-
15205065060 Socket Head Screw M6 x 50Socket Head Screw M6 x 50
-
16293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
17292000398 LH Spring ClipLH Spring Clip
-
18293150037 Rivet Avdel 3/16''Rivet Avdel 3/16''
-
19269500606 Extinguisher HousingExtinguisher Housing
-
20295500783 Tool KitTool Kit
-
21269500603 Extinguisher CoverExtinguisher Cover
-
22293730018 DartDart
-
23293750008 Tie Rap 350 mmTie Rap 350 mm
-
24414115200 Tie-RapTie-Rap
-
25292000688 Screen BailerScreen Bailer
-
26275000007 Hose 8 mm (Meter)Hose 8 mm (Meter)
-
27293750001 Tie Rap 94 mmTie Rap 94 mm
-
28293710057 Elbow Fitting 90 DegElbow Fitting 90 Deg
-
29276000093 Check ValveCheck Valve
-
30275500446 Hose 6 mm (Meter)Hose 6 mm (Meter)
-
31275500499 Check ValveCheck Valve
-
32293720029 GrommetGrommet
-
33291001424 Collector JointCollector Joint
-
34291001629 Front CollectorFront Collector
-
35291001614 Collector SupportCollector Support
-
36293850065 Rubber StrapRubber Strap
-
37234052600 Flat Washer 5 mmFlat Washer 5 mm
-
38293730024 Dard FastexDard Fastex
-
39291001777 Vent HoseVent Hose
-
40291000691 Latch StudLatch Stud
-
41232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
42234002600 Flat Washer 10 mmFlat Washer 10 mm
-
43271000598 Nut Housing. Includes 43 - 44.Nut Housing. Includes 43 - 44.
-
44232501600 Elastic Stop Nut M10Elastic Stop Nut M10
-
45293750024 Tie Rap MountTie Rap Mount
-
293750025 Tie Rap MountTie Rap Mount
-
46293750015 Tie Rap MountTie Rap Mount
-
47293750005 Tie ClampTie Clamp
-
48269000680 Grab HandleGrab Handle
-
49293200059 Baffle SealBaffle Seal
-
50207084560 Hex. Screw M8 x 45Hex. Screw M8 x 45
-
51291001417 Vent Tube Ass'yVent Tube Ass'y
-
52291001777 Hose VentHose Vent
-
53293730024 Dart FastexDart Fastex
-
54230262060 Hex. Screw M6 x 120 (Scotch Grip)Hex. Screw M6 x 120 (Scotch Grip)
-
55234062600 Flat Washer 6 mmFlat Washer 6 mm
-
56293720042 GrommetGrommet
-
57414115200 Tie RapTie Rap
-
58277001000 Steering SupportSteering Support
-
59293150043 Rivet 3/16''Rivet 3/16''
