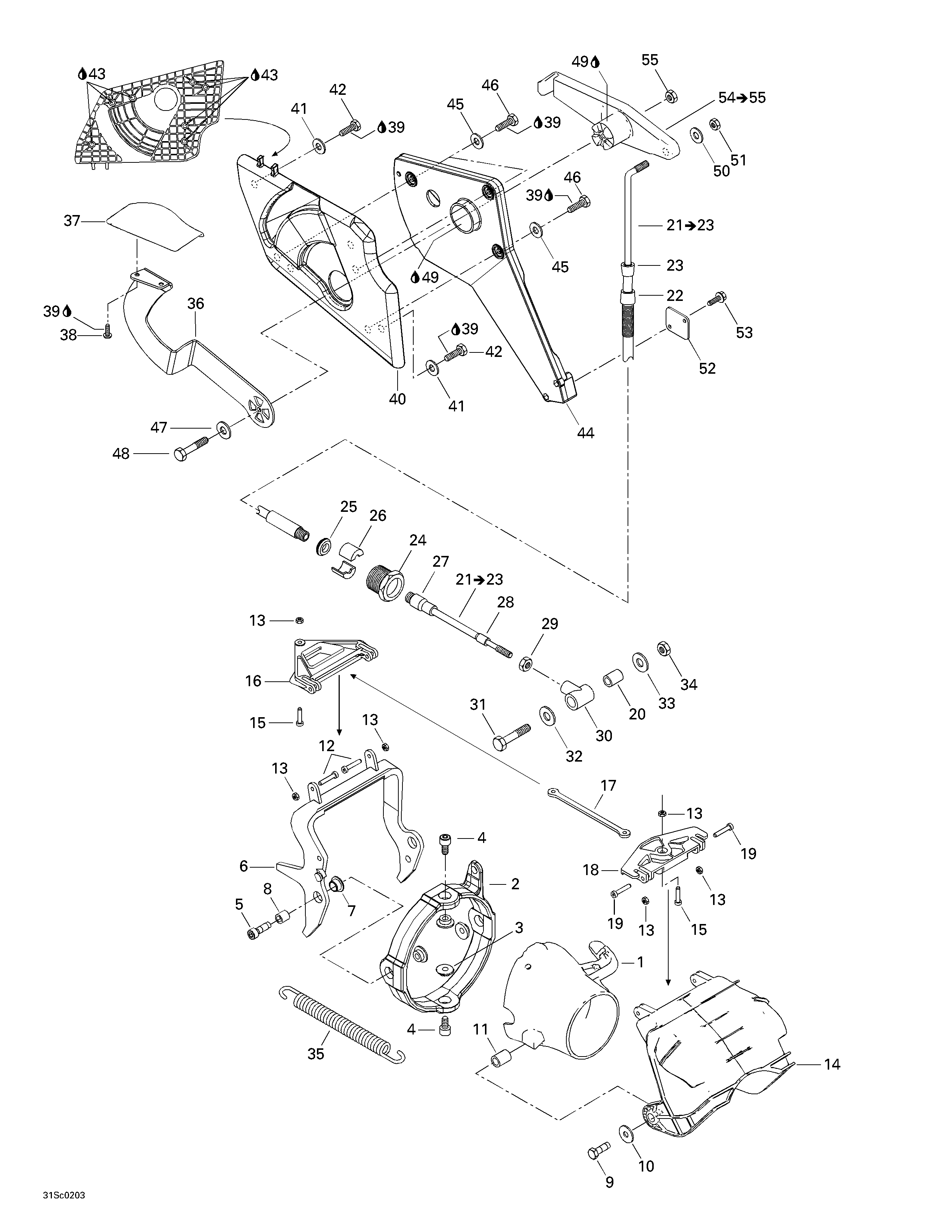

05- Reverse для BRP RX, 5579/5580/5581/5582 - 2002
-
№АртикулНазвание
-
1271001007 Steering Nozzle (Black)Steering Nozzle (Black)
-
2271001009 Trimming RingTrimming Ring
-
3293900007 Venturi BushingVenturi Bushing
-
4211000127 Socket Head Screw M8 x 10 (Scotch Grip)Socket Head Screw M8 x 10 (Scotch Grip)
-
5250000026 Pivot Screw M8 X 25Pivot Screw M8 X 25
-
6271001012 Arm BlackArm Black
-
7271000321 Bushing VenturiBushing Venturi
-
8271001039 SpacerSpacer
-
9207383060 Hex. Screw M8 x 30 (Scotch Grip)Hex. Screw M8 x 30 (Scotch Grip)
-
10234082600 Flat Washer 8 mmFlat Washer 8 mm
-
11277001066 SpacerSpacer
-
12250000018 Pivot ScrewPivot Screw
-
13232551600 Elastic Stop Nut M5Elastic Stop Nut M5
-
14271001317 Gate ReverseGate Reverse
-
15250000018 Pivot ScrewPivot Screw
-
16271001017 TriangleTriangle
-
17271001018 Connector RodConnector Rod
-
18271001312 Rod PivotRod Pivot
-
19250000023 Screw PivotScrew Pivot
-
20271001020 SpacerSpacer
-
21277000848 Reverse Cable. Includes 21 - 23.Reverse Cable. Includes 21 - 23.
-
22277000473 Boot (Large)Boot (Large)
-
23277000466 Boot (Small)Boot (Small)
-
24277000052 Lock CableLock Cable
-
25211100009 Rubber WasherRubber Washer
-
26277000055 Half RingHalf Ring
-
27277000473 Boot (Large)Boot (Large)
-
28277000466 Boot (Small)Boot (Small)
-
29212100005 Hex. NutHex. Nut
-
30277000854 JointJoint
-
31207063560 Hex. Screw M6 x 35Hex. Screw M6 x 35
-
32234062600 Flat Washer 6 mmFlat Washer 6 mm
-
33234061600 Flat Washer 6 mmFlat Washer 6 mm
-
34232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
35271001328 SpringSpring
-
36271000982 Handle LeverHandle Lever
-
37271000983 Reverse HandleReverse Handle
-
38208451260 Phillips Screw M5 x 12Phillips Screw M5 x 12
-
39293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
40271000984 Handle HousingHandle Housing
-
41234062600 Flat Washer 6 mmFlat Washer 6 mm
-
42207161260 Hex. Screw M6 x 12Hex. Screw M6 x 12
-
43296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
44271001358 Reverse Cable SupportReverse Cable Support
-
45234062600 Flat Washer 6 mmFlat Washer 6 mm
-
46207161660 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
47234061600 Flat Washer 6 mmFlat Washer 6 mm
-
48207161660 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
49293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
50234051600 Flat Washer 5 mmFlat Washer 5 mm
-
51212000006 Elastic Stop NutElastic Stop Nut
-
52277001058 BracketBracket
-
53207153060 Hex. Screw M5 x 30Hex. Screw M5 x 30
-
54271000986 Lever. Includes 54 - 55.Lever. Includes 54 - 55.
-
55232561600 Elastic Stop Nut M6Elastic Stop Nut M6
