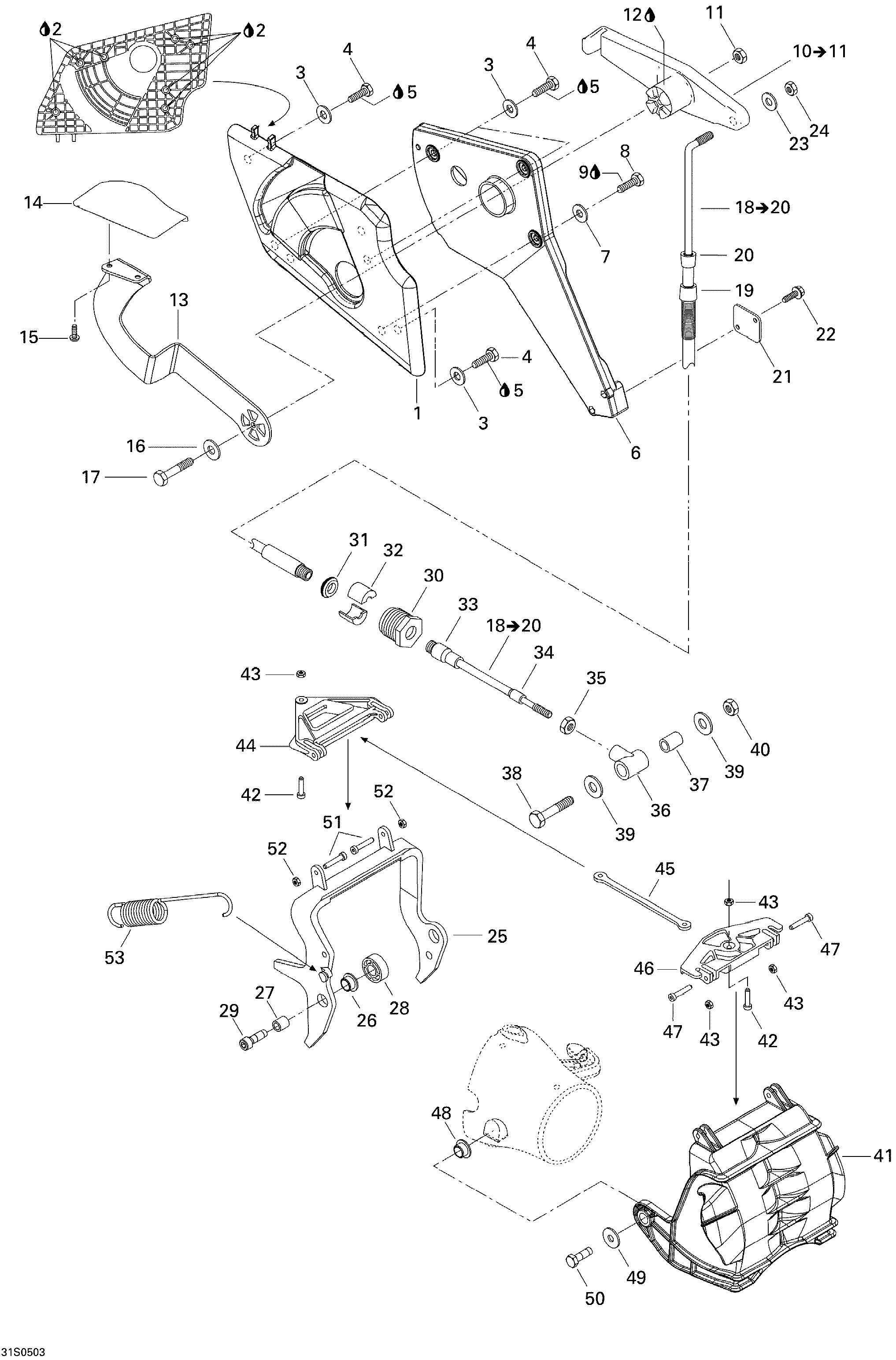

05- Reverse для BRP GTI RFI STD - 2005
-
№АртикулНазвание
-
1271000984 Handle HousingHandle Housing
-
2296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
3234062600 Flat Washer 6 mmFlat Washer 6 mm
-
4207161260 Hex Screw M6 X 12Hex Screw M6 X 12
-
5293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
6271001358 Reverse Cable SupportReverse Cable Support
-
7234062600 Flat Washer 6 mmFlat Washer 6 mm
-
8207161660 Hex Screw M6 X 16Hex Screw M6 X 16
-
9293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
10271000986 Lever Ass.. Includes 10 to 11Lever Ass.. Includes 10 to 11
-
11232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
12293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
13271000982 Handle LeverHandle Lever
-
14271000983 Reverse HandleReverse Handle
-
15250000020 Phillips Screw M5 X 10Phillips Screw M5 X 10
-
16234061600 Flat Washer 6 mmFlat Washer 6 mm
-
17207161660 Hex Screw M6 X 16Hex Screw M6 X 16
-
18277000944 Reverse Cable Ass.. Includes 18 to 20Reverse Cable Ass.. Includes 18 to 20
-
19277000473 Boot (Large)Boot (Large)
-
20277000466 Boot (Small)Boot (Small)
-
21277001058 BracketBracket
-
22207153060 Hex Flanged Screw M5 X 30Hex Flanged Screw M5 X 30
-
23234051600 Flat Washer 5 mmFlat Washer 5 mm
-
24212000006 Elastic Stop NutElastic Stop Nut
-
25271001012 Arm BlackArm Black
-
26271000321 Venturi BushingVenturi Bushing
-
27271001039 SpacerSpacer
-
28293900038 BushingBushing
-
29250000026 Pivot Screw M8 X 25Pivot Screw M8 X 25
-
30277000784 Steering Cable LockSteering Cable Lock
-
31211100009 Rubber WasherRubber Washer
-
32277000055 Half RingHalf Ring
-
33277000473 Boot (Large)Boot (Large)
-
34277000466 Boot (Small)Boot (Small)
-
35212100005 Hex NutHex Nut
-
36277001204 JointJoint
-
37271001020 SpacerSpacer
-
38207063560 Hex Screw M6 X 35Hex Screw M6 X 35
-
39234062600 Flat Washer 6 mmFlat Washer 6 mm
-
40232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
41271001317 Gate ReverseGate Reverse
-
42250000018 Pivot ScrewPivot Screw
-
43232551600 Hex Elastic Nut M5Hex Elastic Nut M5
-
44271001017 TriangleTriangle
-
45271001018 Connector RodConnector Rod
-
46271001312 Rod PivotRod Pivot
-
47250000023 Screw PivotScrew Pivot
-
48277001066 SpacerSpacer
-
49234082600 Flat Washer 8 mmFlat Washer 8 mm
-
50207383060 Hex Screw M8 X 30, Scotch GripHex Screw M8 X 30, Scotch Grip
-
51250000018 Pivot ScrewPivot Screw
-
52232551600 Hex Elastic Nut M5Hex Elastic Nut M5
-
53271001328 SpringSpring
