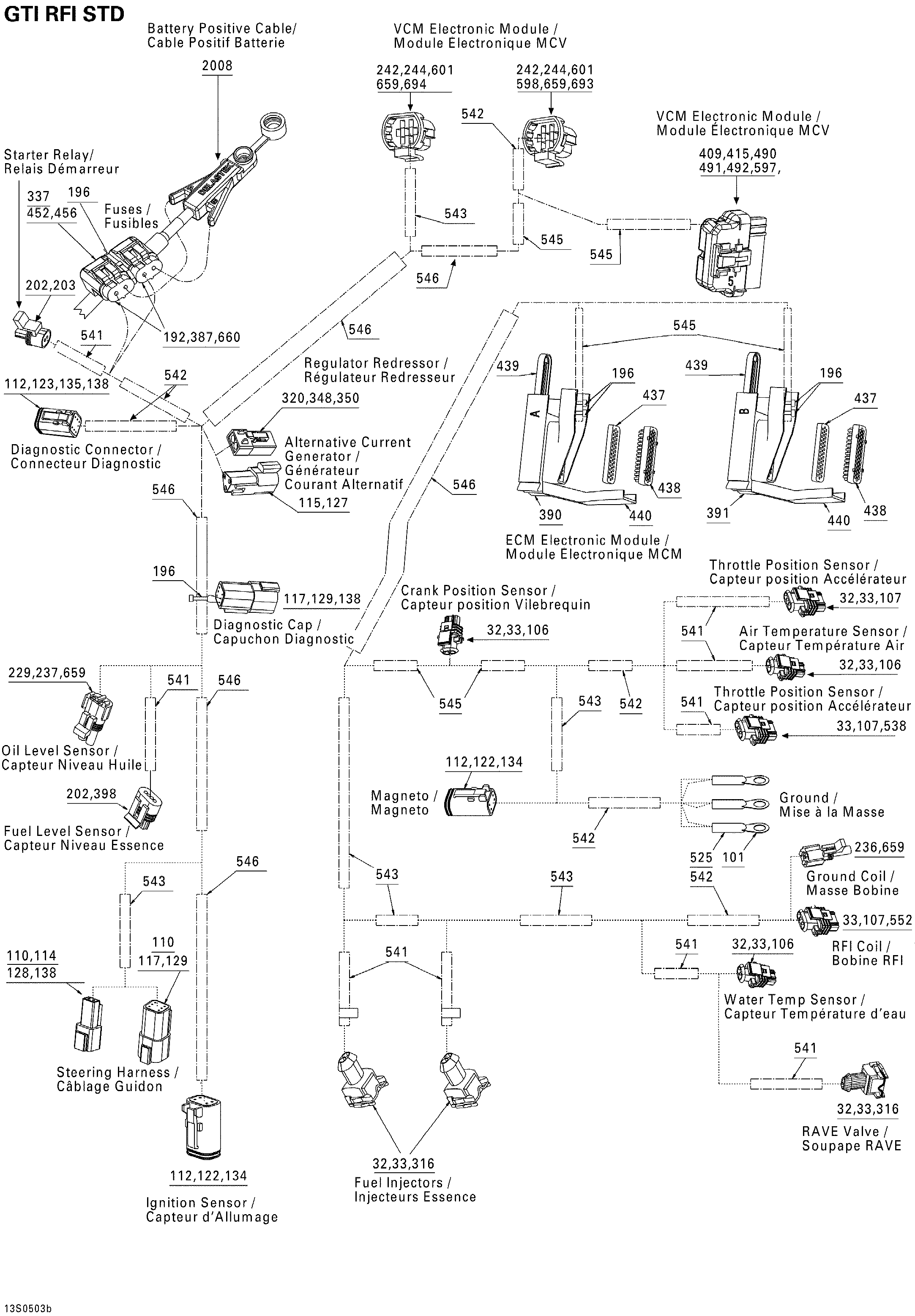

10- Electrical Harness STD для BRP GTI RFI STD - 2005
-
№АртикулНазвание
-
1278001990 Wiring Harness Ass'y. Includes 001 to 2010Wiring Harness Ass'y. Includes 001 to 2010
-
32278000998 Female TerminalFemale Terminal
-
33278000999 SealSeal
-
106278001005 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
107278000997 Male Connector, 3 CircuitsMale Connector, 3 Circuits
-
110278000631 Male TerminalMale Terminal
-
111515175823 Male TerminalMale Terminal
-
112278000632 Female TerminalFemale Terminal
-
113278001276 Female TerminalFemale Terminal
-
115409207000 Female Connector, 3 CircuitsFemale Connector, 3 Circuits
-
117270000137 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
118278001742 Female Connector, 8 CircuitsFemale Connector, 8 Circuits
-
120409207300 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
122278000739 Male Connector, 4 CircuitsMale Connector, 4 Circuits
-
123278000736 Male Connector, 6 CircuitsMale Connector, 6 Circuits
-
124278001743 Male Housing, 8 CircuitsMale Housing, 8 Circuits
-
127409207600 Secondary Lock, 3 CircuitsSecondary Lock, 3 Circuits
-
129278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
130515175276 Male Lock, 4 CircuitsMale Lock, 4 Circuits
-
132409207100 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
134278000738 Secondary Lock, 4 CircuitsSecondary Lock, 4 Circuits
-
135278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
136278001744 Secondary Lock, 8 CircuitsSecondary Lock, 8 Circuits
-
138293000052 Seal PlugSeal Plug
-
176409003200 Open BarrelOpen Barrel
-
192409003900 Fuse, 20 AmperesFuse, 20 Amperes
-
196293750002 Tie-rap 130 mmTie-rap 130 mm
-
202278001114 Female TerminalFemale Terminal
-
203278001113 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
229278000223 Female TerminalFemale Terminal
-
236278000219 Male Housing, 1 CircuitMale Housing, 1 Circuit
-
237278000220 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
238278000273 Male Connector, 3 CircuitsMale Connector, 3 Circuits
-
242278000218 Wire SealWire Seal
-
244278000216 Wire SealWire Seal
-
316278001003 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
320515175567 Female TerminalFemale Terminal
-
337710000113 Female TerminalFemale Terminal
-
348278001673 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
350278001671 Secondary Lock, 2 CircuitsSecondary Lock, 2 Circuits
-
387293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
388278001750 Female TerminalFemale Terminal
-
391278001751 Male Connector, 41 CircuitsMale Connector, 41 Circuits
-
398278001308 Male Connector, 4 CircuitsMale Connector, 4 Circuits
-
409515175812 Sealing PlugSealing Plug
-
415515175806 Female TerminalFemale Terminal
-
437515175886 Block SealBlock Seal
-
438515175883 HolderHolder
-
439515175884 Secondary LockSecondary Lock
-
440515175885 Protective CapProtective Cap
-
452710000342 Housing CoverHousing Cover
-
456278000805 CushionCushion
-
490710000394 Wire SealWire Seal
-
491710000395 Female Housing, 32 CircuitsFemale Housing, 32 Circuits
-
492710000396 Female HousingFemale Housing
-
501710000412 Female TerminalFemale Terminal
-
503710000414 Bloc Male, 6 CircuitsBloc Male, 6 Circuits
-
525710000482 Shrink TubingShrink Tubing
-
538278001210 Female TerminalFemale Terminal
-
552278001310 Female TerminalFemale Terminal
-
597515176055 Terminal SupportTerminal Support
-
598515176051 Female Housing, 7 CircuitsFemale Housing, 7 Circuits
-
601515176056 LatchLatch
-
643278001977 Female TerminalFemale Terminal
-
659278001065 Wire SealWire Seal
-
660278001987 Fuse HolderFuse Holder
-
693278002031 Terminal Femelle 16 - 18 Ga.Terminal Femelle 16 - 18 Ga.
-
694278002051 Pt Female HousingPt Female Housing
-
2007293720042 GrommetGrommet
-
2008278002026 Battery Positive CableBattery Positive Cable
-
2010278002082 Battery CableBattery Cable
