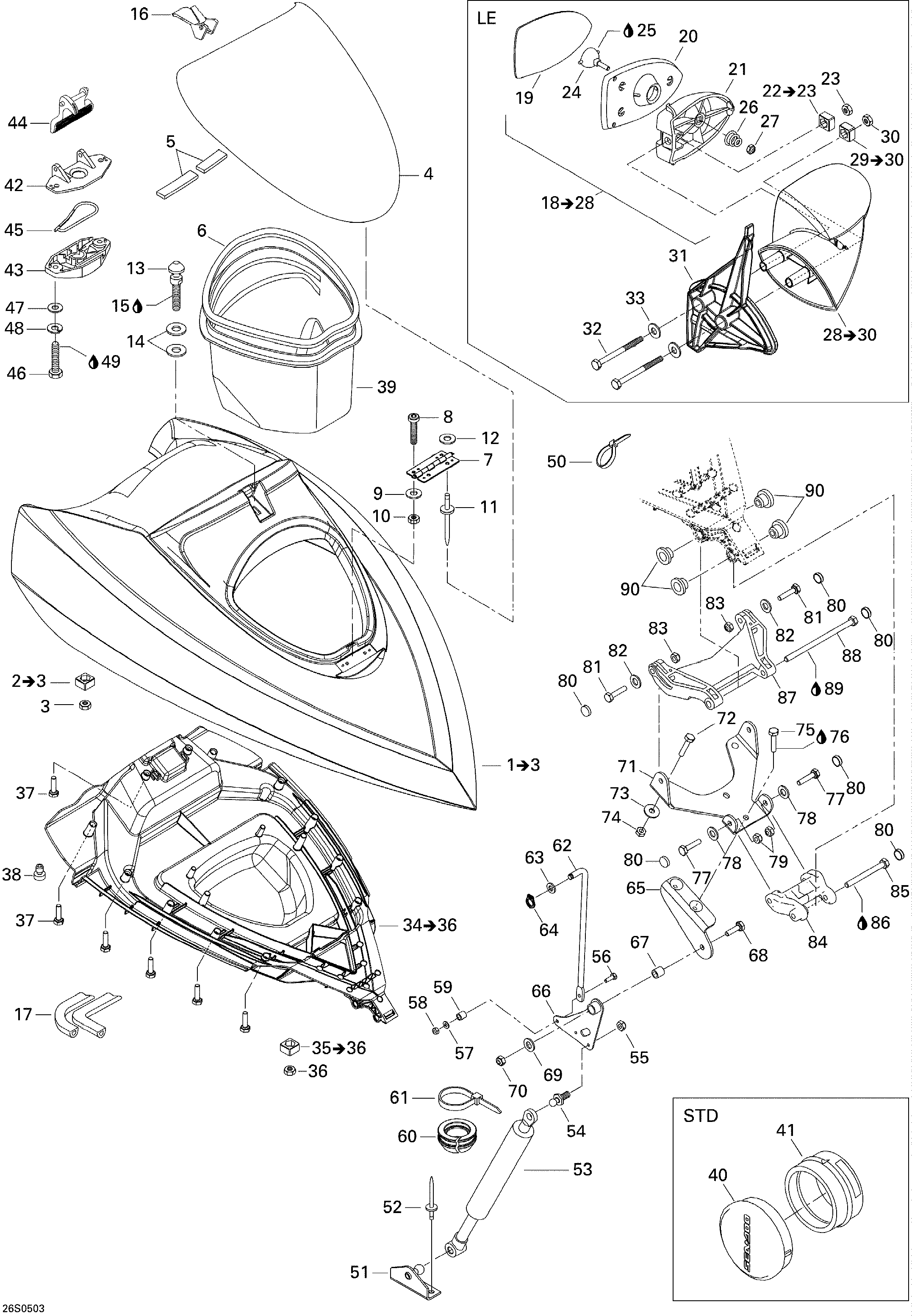

09- Front Storage Compartment STD для BRP GTI RFI STD - 2005
-
№АртикулНазвание
-
1269501380 Storage Cover Ass'y. STD, Includes 1 to 3Storage Cover Ass'y. STD, Includes 1 to 3
-
2269500252 Nut Housing Ass'y M6. Includes 2 to 3Nut Housing Ass'y M6. Includes 2 to 3
-
3232061600 Hex Nut M6Hex Nut M6
-
4269500337 Access Cover, Bright YellowAccess Cover, Bright Yellow
-
5293200003 GasketGasket
-
6293200093 Neoprene SealNeoprene Seal
-
7269500338 HingeHinge
-
8205451660 Socket Head Screw M5 X 16Socket Head Screw M5 X 16
-
9234052600 Flat Washer 5 mmFlat Washer 5 mm
-
10232551200 Elastic Stop Nut 5 mmElastic Stop Nut 5 mm
-
11204000081 Pop Rivet 3/16''Pop Rivet 3/16''
-
12234052600 Flat Washer 5 mmFlat Washer 5 mm
-
13291001242 Anchoring StudAnchoring Stud
-
14234062600 Flat Washer 6 mmFlat Washer 6 mm
-
15293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
16269501125 LatchLatch
-
17293200093 Neoprene SealNeoprene Seal
-
34269501420 Lower Cover Ass'y. Includes 34 to 36Lower Cover Ass'y. Includes 34 to 36
-
35269500252 Nut Housing Ass'y M6. Includes 35 to 36Nut Housing Ass'y M6. Includes 35 to 36
-
36232061600 Hex Nut M6Hex Nut M6
-
37241141360 Hex Flanged Screw K40 X 13Hex Flanged Screw K40 X 13
-
38293830005 Rubber PlugRubber Plug
-
39269501121 Glove BoxGlove Box
-
40293000068 Gauge Cap. STDGauge Cap. STD
-
41293720047 Gauge Support. STDGauge Support. STD
-
42269700076 Latch CoverLatch Cover
-
43269000015 Latch BaseLatch Base
-
44269700077 Latch LeverLatch Lever
-
45269700017 Latch SpringLatch Spring
-
46207063060 Hex Screw M6 X 30Hex Screw M6 X 30
-
47234061600 Flat Washer 6 mmFlat Washer 6 mm
-
48234161601 Lock Washer 6 mmLock Washer 6 mm
-
49293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
50293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
51291002124 Shock SupportShock Support
-
52293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
53269500988 Gaz ShockGaz Shock
-
54250300016 Ball StudBall Stud
-
55232581600 Hex Elastic Nut M8Hex Elastic Nut M8
-
56207141660 Hex Screw M4 X 16Hex Screw M4 X 16
-
57234041600 Flat Washer 4 mmFlat Washer 4 mm
-
58232541600 Elastic Stop Nut M4Elastic Stop Nut M4
-
59269500841 SpacerSpacer
-
60293720063 Cable GrommetCable Grommet
-
61414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
62269500842 RodRod
-
63234061600 Flat Washer 6 mmFlat Washer 6 mm
-
64293370005 Circlip 6 mmCirclip 6 mm
-
65269500846 Support LeverSupport Lever
-
66269501020 LeverLever
-
67269501022 SpacerSpacer
-
68207163060 Hex Screw M6 X 30Hex Screw M6 X 30
-
69234062600 Flat Washer 6 mmFlat Washer 6 mm
-
70232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
71269500703 Pivot SupportPivot Support
-
72207162060 Hex Screw M6 X 20Hex Screw M6 X 20
-
73234062600 Flat Washer 6 mmFlat Washer 6 mm
-
74232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
75207162060 Hex Screw M6 X 20Hex Screw M6 X 20
-
76293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
77211000022 Hex Special Screw M6 X 25Hex Special Screw M6 X 25
-
78234061600 Flat Washer 6 mmFlat Washer 6 mm
-
79232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
80414436900 Snap Cap, BlackSnap Cap, Black
-
81211000022 Hex Special Screw M6 X 25Hex Special Screw M6 X 25
-
82234061600 Flat Washer 6 mmFlat Washer 6 mm
-
83232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
84269500704 Front ArmFront Arm
-
85207066060 Hex Screw M6 X 60Hex Screw M6 X 60
-
86293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
87269500705 Rear ArmRear Arm
-
88230060060 Hex Screw M6 X 100Hex Screw M6 X 100
-
89293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
90269500706 SleeveSleeve
