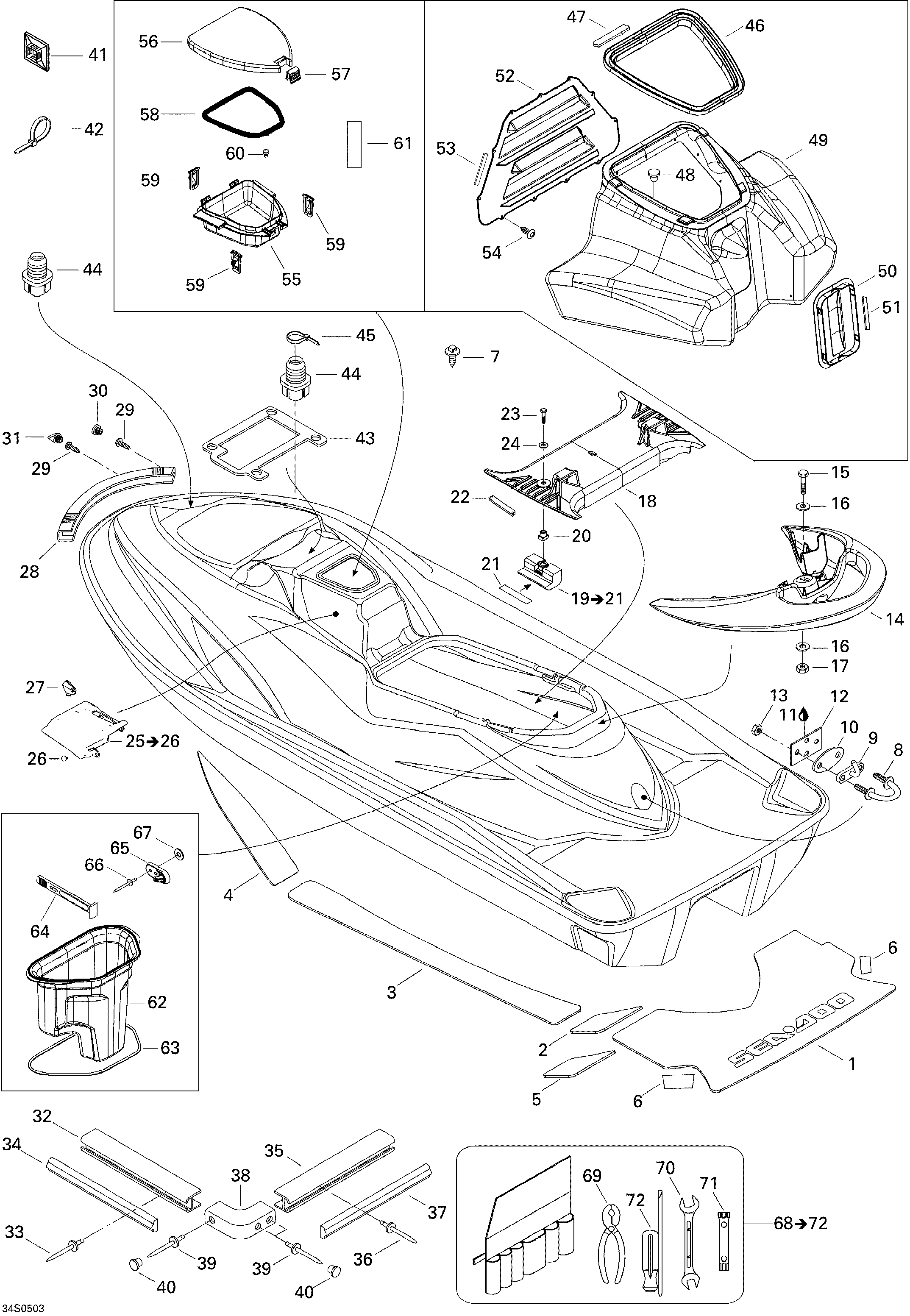

09- Body STD для BRP GTI RFI STD - 2005
-
№АртикулНазвание
-
1291002152 Rear Carpet. STDRear Carpet. STD
-
5291001665 RH Anti-Skid. STDRH Anti-Skid. STD
-
5291001666 LH Anti-Skid. STDLH Anti-Skid. STD
-
6291001919 Anti-skid, BlackAnti-skid, Black
-
7293730018 Mount DartMount Dart
-
8292000011 U-clampU-clamp
-
9291001232 HookHook
-
10291001386 Finition Plate, BlackFinition Plate, Black
-
11296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
12291001387 Retainer PlateRetainer Plate
-
13232581600 Hex Elastic Nut M8Hex Elastic Nut M8
-
14269000812 Grab HandleGrab Handle
-
15207084560 Hex Screw M8 X 45Hex Screw M8 X 45
-
16234081600 Flat Washer 8 mmFlat Washer 8 mm
-
17232581600 Hex Elastic Nut M8Hex Elastic Nut M8
-
18291001854 Upper BridgeUpper Bridge
-
19291001931 Link Bridge Ass'Y. Includes 19 to 21Link Bridge Ass'Y. Includes 19 to 21
-
20211100033 Square Nut M8Square Nut M8
-
21291001932 PadPad
-
22293250008 GasketGasket
-
23207384060 Hex Screw M8 X 40, Scotch GripHex Screw M8 X 40, Scotch Grip
-
24234082600 Flat Washer 8 mmFlat Washer 8 mm
-
25291001649 RH Grill Ass'Y. Includes 25 to 26RH Grill Ass'Y. Includes 25 to 26
-
25291001650 LH Grill Ass'Y. Includes 25 to 26LH Grill Ass'Y. Includes 25 to 26
-
26293730010 Dart, BlackDart, Black
-
27291001730 Spacer. STDSpacer. STD
-
28291001942 Bumper Nose, BlackBumper Nose, Black
-
29250000236 Torx Screw 10-14 X 1-1/8''Torx Screw 10-14 X 1-1/8''
-
30291001519 Bumper Plug, BlackBumper Plug, Black
-
31291001040 Bumper Plug, BlackBumper Plug, Black
-
32291001606 Side Bumper, BlackSide Bumper, Black
-
33293150005 Pop Rivet 3/16''Pop Rivet 3/16''
-
34291002001 Side Bumber Trim, YellowSide Bumber Trim, Yellow
-
35291001483 Rear Bumper, BlackRear Bumper, Black
-
36293150005 Pop Rivet 3/16''Pop Rivet 3/16''
-
37291001537 Rear Bumper Trim, YellowRear Bumper Trim, Yellow
-
38291001505 Bumper Corner, BlackBumper Corner, Black
-
39293150013 Pop Rivet 3/16''Pop Rivet 3/16''
-
40291000339 Bumper PlugBumper Plug
-
41293750025 Tie-Rap MountTie-Rap Mount
-
42414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
43293250068 GasketGasket
-
44293720042 Grommet. STDGrommet. STD
-
45414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
46269501129 Cover TrimCover Trim
-
47293200093 Neoprene SealNeoprene Seal
-
48291000279 Plug, BlackPlug, Black
-
50291001744 Front DoorFront Door
-
51293250087 GasketGasket
-
52291001631 Rear DoorRear Door
-
53293250087 GasketGasket
-
54293150089 Plastic RivetPlastic Rivet
-
55269500717 Glove BoxGlove Box
-
56269500928 Glove Box DoorGlove Box Door
-
57269500719 LatchLatch
-
58293250100 GasketGasket
-
59269500820 Retainer LatchRetainer Latch
-
60293830005 Rubber PlugRubber Plug
-
61293250099 GasketGasket
-
62269500990 Rear TrayRear Tray
-
63293250008 GasketGasket
-
64269500408 StrapStrap
-
65269500521 HookHook
-
66293150039 Pop Rivet 3/16''Pop Rivet 3/16''
-
67234052600 Flat Washer 5 mmFlat Washer 5 mm
-
68294000680 Owner Tool Kit Ass'Y. Includes 68 to 72Owner Tool Kit Ass'Y. Includes 68 to 72
-
70529017300 Fork WrenchFork Wrench
-
72529019200 Driver ScrewDriver Screw
