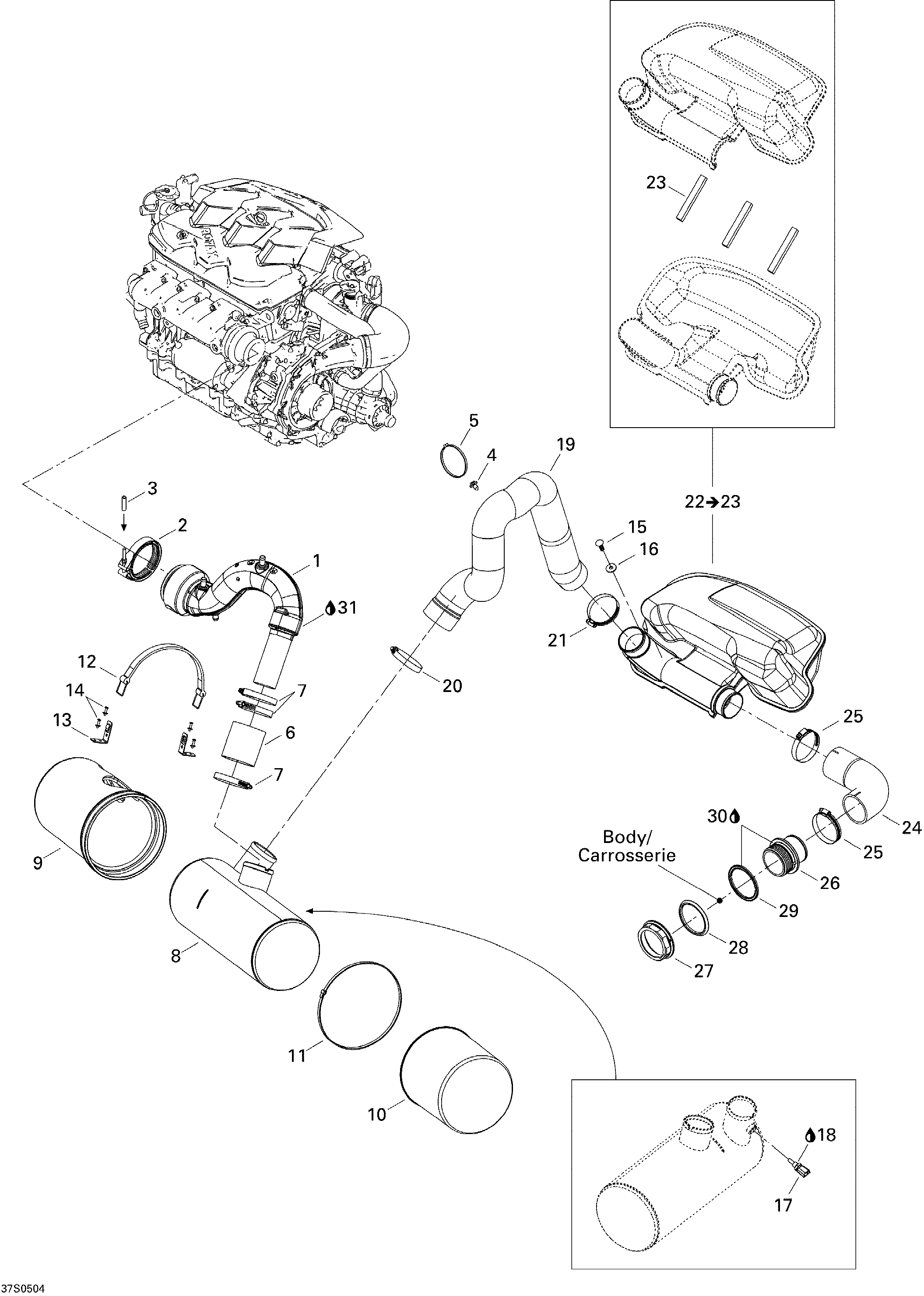

01- Exhaust System для BRP GTX 4-TEC, Supercharged - 2005
-
№АртикулНазвание
-
1274001089 Exhaust PipeExhaust Pipe
-
2274000959 Exhaust ClampExhaust Clamp
-
3415080200 Polyurethane Hose (meter)Polyurethane Hose (meter)
-
4293730018 Mount DartMount Dart
-
5293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
6274000961 Exhaust HoseExhaust Hose
-
7293650107 Tridon ClampTridon Clamp
-
8274001095 MufflerMuffler
-
9274001008 Front Muffler CoverFront Muffler Cover
-
10274000984 Rear Muffler CoverRear Muffler Cover
-
11293750020 Tie-Rap 838 mmTie-Rap 838 mm
-
12293850036 StrapStrap
-
13293850076 Strap Clip 90°Strap Clip 90°
-
14293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
15293730004 Dart, BlackDart, Black
-
16234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
17278001016 Temperature SensorTemperature Sensor
-
18293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
19274001163 Front Exhaust HoseFront Exhaust Hose
-
20293650107 Tridon ClampTridon Clamp
-
21293650064 Tridon ClampTridon Clamp
-
22274001127 RH Resonator. Includes 22 to 23RH Resonator. Includes 22 to 23
-
23293200003 GasketGasket
-
24274001102 Rear Exhaust HoseRear Exhaust Hose
-
25293650064 Tridon ClampTridon Clamp
-
26274000843 Exhaust OutletExhaust Outlet
-
27274000224 Nut 72 mmNut 72 mm
-
28274000225 Stabilizing WasherStabilizing Washer
-
29293250041 GasketGasket
-
30296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
31293800090 Sealant, Loctite, 80 mlSealant, Loctite, 80 ml
