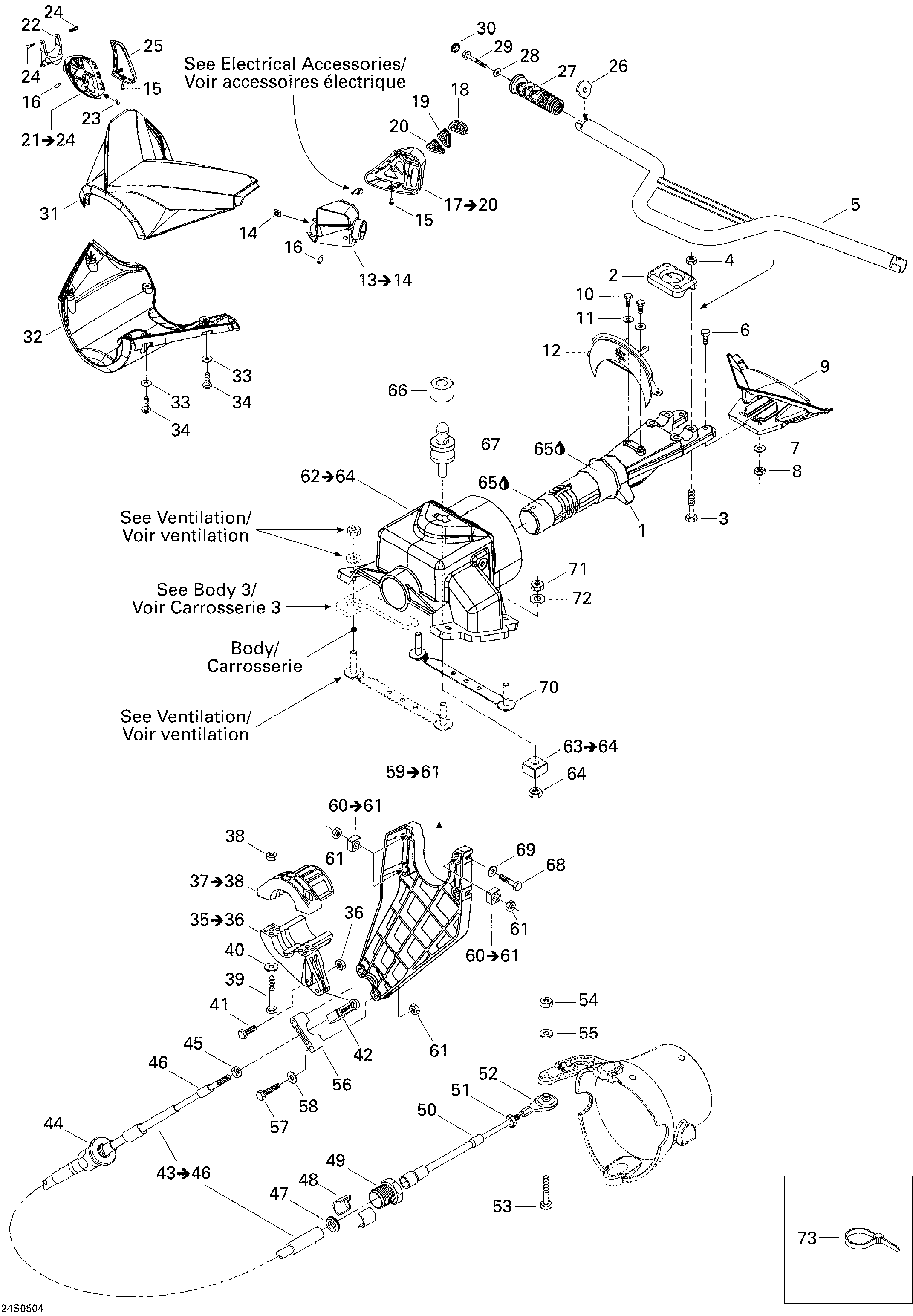

07- Steering System для BRP GTX 4-TEC, Supercharged - 2005
-
№АртикулНазвание
-
1277000562400 Steering StemSteering Stem
-
2277000142 Steering ClampSteering Clamp
-
3207085060 Hex Screw M8 X 50Hex Screw M8 X 50
-
4232581600 Elastic Stop Nut M8Elastic Stop Nut M8
-
5277001454 Handle BarHandle Bar
-
6207063060 Hex Screw M6 X 30Hex Screw M6 X 30
-
7234061600 Flat Washer 6 mm, StainlessFlat Washer 6 mm, Stainless
-
8232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
9277001241 Handle Pad, Pearl BlueHandle Pad, Pearl Blue
-
10211000036 Hex Flanged Screw 1/4''-20 X 1/2''Hex Flanged Screw 1/4''-20 X 1/2''
-
11234062600 Flat Washer 6 mm, StainlessFlat Washer 6 mm, Stainless
-
12277000549 PlatePlate
-
13277000954 Housing Ass'Y. Includes 13 to 14Housing Ass'Y. Includes 13 to 14
-
14232860600 Square Nut M6Square Nut M6
-
15209630960 Phillips Screw M3.9 X 9.5Phillips Screw M3.9 X 9.5
-
16250000036 Socket Head Screw M6Socket Head Screw M6
-
17277001061 LH Housing Cover Ass'y. Includes 17 to 20LH Housing Cover Ass'y. Includes 17 to 20
-
18278001713 Stop KnobStop Knob
-
19278001714 Mode KnobMode Knob
-
20278001715 Set KnobSet Knob
-
21277000995 Throttle Housing Ass'Y. Includes 21 to 24Throttle Housing Ass'Y. Includes 21 to 24
-
22277001107 Throttle HandleThrottle Handle
-
23232860600 Square Nut M6Square Nut M6
-
24277000381 PinPin
-
25277001023 Throttle Housing CoverThrottle Housing Cover
-
26277000554 Handle Grip InsertHandle Grip Insert
-
27277001243 Handle Grip, Pearl BlueHandle Grip, Pearl Blue
-
28234062600 Flat Washer 6 mm, StainlessFlat Washer 6 mm, Stainless
-
29250000002 Hex Screw M6 X 30, Scotch GripHex Screw M6 X 30, Scotch Grip
-
30277000203 Grip CapGrip Cap
-
31277000952 Upper Steering Cover, BlackUpper Steering Cover, Black
-
32277001145 Lower Steering Cover, BlackLower Steering Cover, Black
-
33234051600 Flat Washer 5 mm, StainlessFlat Washer 5 mm, Stainless
-
34241141660 Hex Flanged Screw K40 X 16Hex Flanged Screw K40 X 16
-
35277000518 Steering Stem Arm. Includes 35 to 36Steering Stem Arm. Includes 35 to 36
-
36232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
37277000519 Arm Thrust. Includes 37 to 38Arm Thrust. Includes 37 to 38
-
38232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
39207162560 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
40234062600 Flat Washer 6 mm, StainlessFlat Washer 6 mm, Stainless
-
41211000081 Hex Screw M6 X 30Hex Screw M6 X 30
-
42277001180 Ball JointBall Joint
-
43277001326 Steering Cable. Includes 43 to 46Steering Cable. Includes 43 to 46
-
44277000782 Ajustment KnobAjustment Knob
-
45211100056 Hex Nut 1/4''-28Hex Nut 1/4''-28
-
46277000441 Terminal WiperTerminal Wiper
-
47293830063 Rubber WasherRubber Washer
-
48277000783 Half-RingHalf-Ring
-
49277000784 Cable LockCable Lock
-
50277000441 Terminal WiperTerminal Wiper
-
51211100056 Hex Nut 1/4''-28Hex Nut 1/4''-28
-
52277000775 Ball JointBall Joint
-
53207063560 Hex Screw M6 X 35Hex Screw M6 X 35
-
54232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
55234061600 Flat Washer 6 mm, StainlessFlat Washer 6 mm, Stainless
-
56277000162 Support ThrustSupport Thrust
-
57207065060 Hex Screw M6 X 50Hex Screw M6 X 50
-
58234061600 Flat Washer 6 mm, StainlessFlat Washer 6 mm, Stainless
-
59277000516 Cable Support. Includes 59 to 61Cable Support. Includes 59 to 61
-
60269500252 Nut Housing Ass'y M6. Includes 60 to 61Nut Housing Ass'y M6. Includes 60 to 61
-
61232061600 Hex Nut M6Hex Nut M6
-
62277000515 Steering Support. Includes 62 to 64Steering Support. Includes 62 to 64
-
63271000598 Nut Housing Ass'y. Includes 63 to 64Nut Housing Ass'y. Includes 63 to 64
-
64232501600 Hex Elastic Nut M10Hex Elastic Nut M10
-
65293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
66293830078 Rubber PadRubber Pad
-
67291002147 Latch StudLatch Stud
-
68207162060 Hex Screw M6 X 20Hex Screw M6 X 20
-
69234061600 Flat Washer 6 mm, StainlessFlat Washer 6 mm, Stainless
-
70277001072 Steering SupportSteering Support
-
71232581600 Elastic Stop Nut M8Elastic Stop Nut M8
-
72234081600 Flat Washer 8 mmFlat Washer 8 mm
-
73293750008 Tie-Rap 350 mmTie-Rap 350 mm
