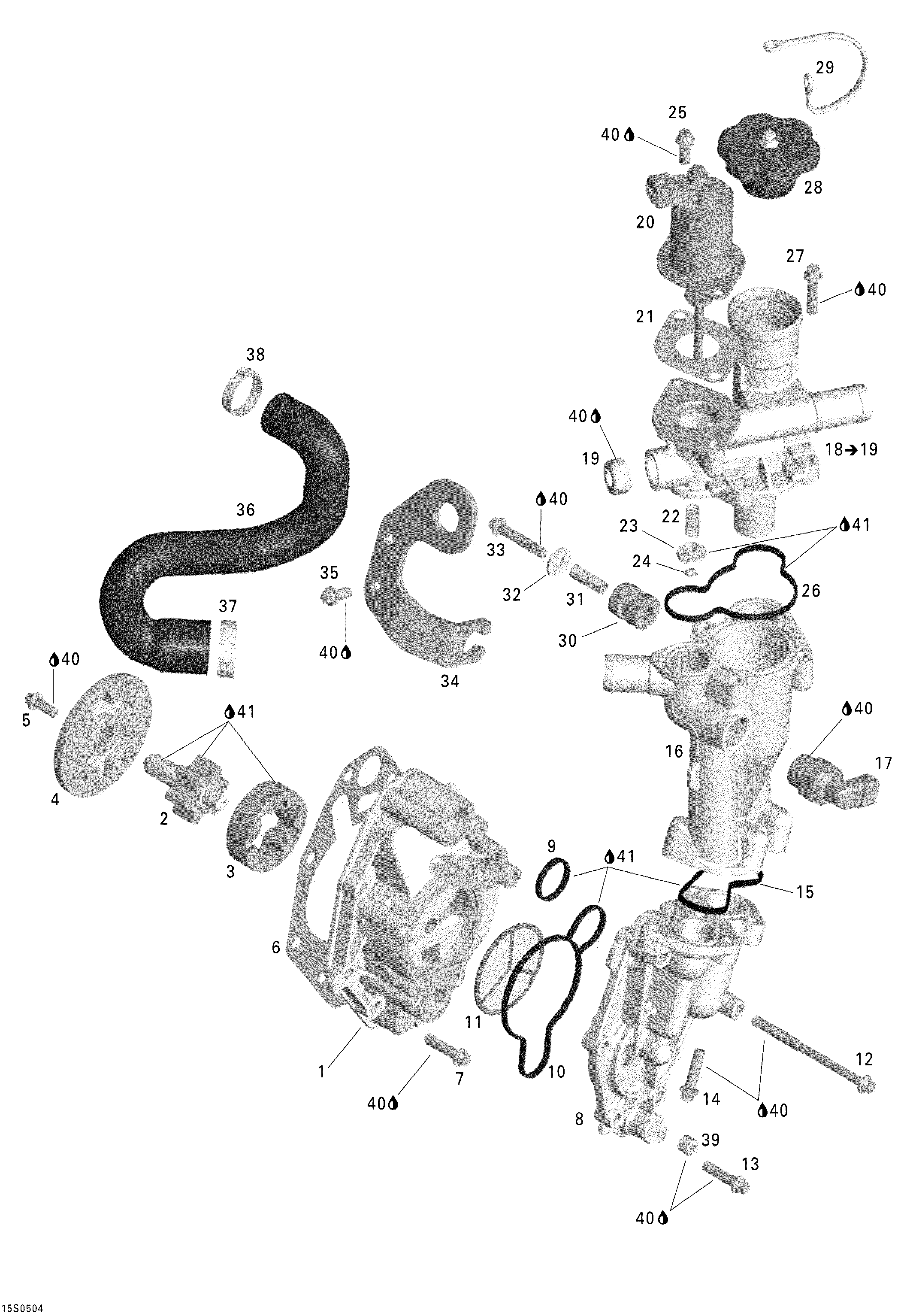

02- Oil Separator для BRP GTX 4-TEC, Supercharged - 2005
-
№АртикулНазвание
-
1420811840 Oil Pump HousingOil Pump Housing
-
2420837542 Pump Shaft Ass'yPump Shaft Ass'y
-
3420956675 Outer Rotor 16 mmOuter Rotor 16 mm
-
4420811850 Oil Pump CoverOil Pump Cover
-
5420641048 Torx Flanged Screw M6 X 16Torx Flanged Screw M6 X 16
-
6420950970 GasketGasket
-
7420641238 Torx Flanged Screw M6 X 25Torx Flanged Screw M6 X 25
-
8420811892 Oil Sieve CoverOil Sieve Cover
-
9420630240 Seal RingSeal Ring
-
10420950850 GasketGasket
-
11420256570 Oil SieveOil Sieve
-
12420641228 Torx Flanged Screw M6 X 85Torx Flanged Screw M6 X 85
-
13420641238 Torx Flanged Screw M6 X 25Torx Flanged Screw M6 X 25
-
14420641238 Torx Flanged Screw M6 X 25Torx Flanged Screw M6 X 25
-
15420630231 GasketGasket
-
16420956761 Oil Separator HousingOil Separator Housing
-
17420256885 Oil Pressure SwitchOil Pressure Switch
-
18420811962 Oil Separator Cover. Includes 18 to 19Oil Separator Cover. Includes 18 to 19
-
19420641313 Plug Screw M30Plug Screw M30
-
20420956661 Solenoid Shut-OffSolenoid Shut-Off
-
21420630540 GasketGasket
-
22420939250 Compression SpringCompression Spring
-
23420856055 Valve DiscValve Disc
-
24420845620 Retaining RingRetaining Ring
-
25420641048 Torx Flanged Screw M6 X 16Torx Flanged Screw M6 X 16
-
26420630220 GasketGasket
-
27420641238 Torx Flanged Screw M6 X 25Torx Flanged Screw M6 X 25
-
28420956923 Plug Cover, YellowPlug Cover, Yellow
-
29420660620 Retaining BandRetaining Band
-
30420660090 Rubber BracketRubber Bracket
-
31420847970 SpacerSpacer
-
32420827968 Flat Washer 6.4 mmFlat Washer 6.4 mm
-
33420641258 Torx Flanged Screw M6 X 35Torx Flanged Screw M6 X 35
-
34420851610 Front Transport BracketFront Transport Bracket
-
35420641048 Torx Flanged Screw M6 X 16Torx Flanged Screw M6 X 16
-
36420956970 Formed HoseFormed Hose
-
37420851673 Gear ClampGear Clamp
-
38420851663 Gear ClampGear Clamp
-
39420641323 Plug Screw M10Plug Screw M10
-
40293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
41219700346 Engine Oil 4 Strokes, 10w40, 12 X 1 LEngine Oil 4 Strokes, 10w40, 12 X 1 L
