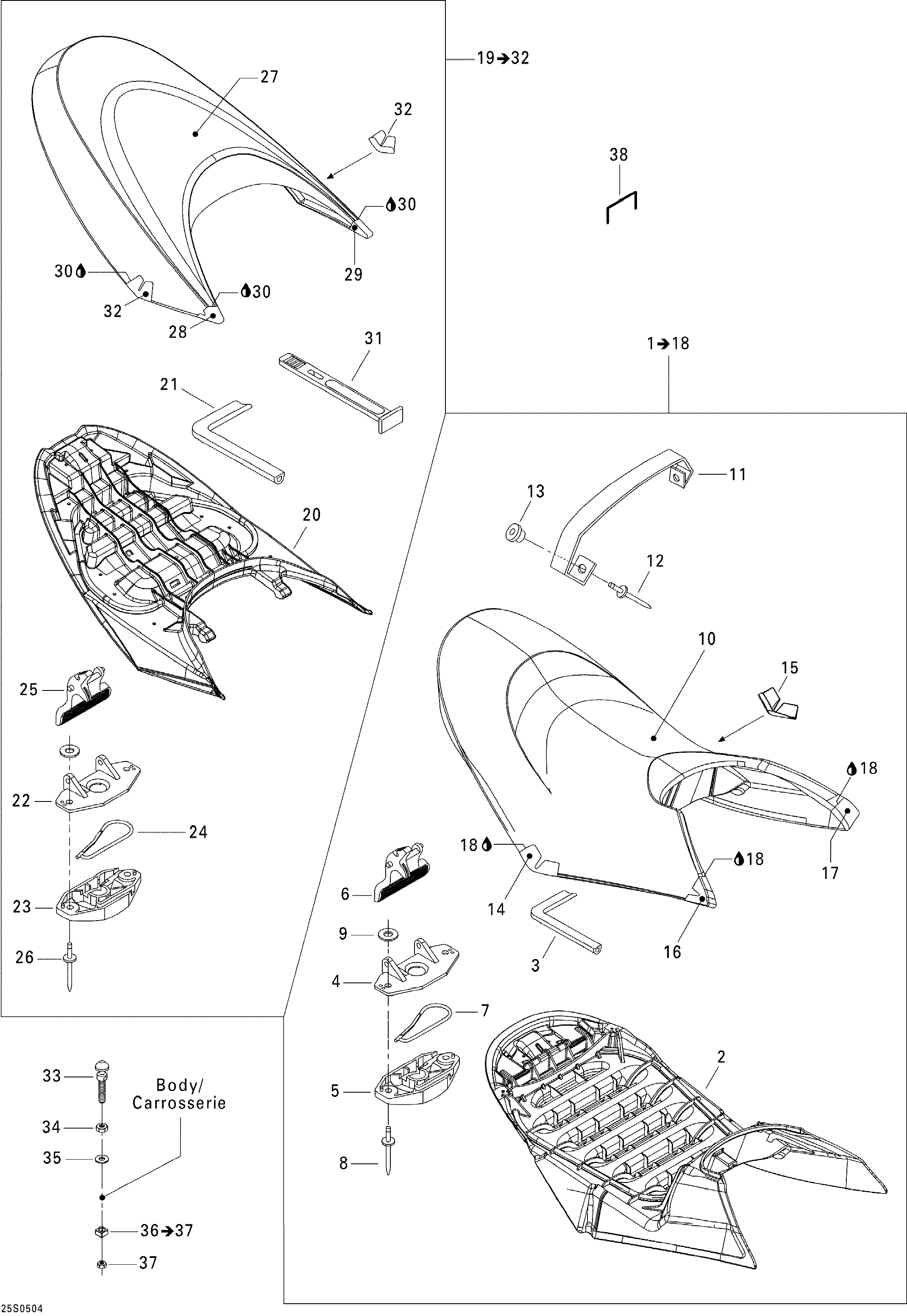

09- Seat для BRP GTX 4-TEC, Supercharged - 2005
-
№АртикулНазвание
-
1269001208 Front Seat Ass'y, Pearl Blue. Includes 1 to 18Front Seat Ass'y, Pearl Blue. Includes 1 to 18
-
3293200062 Seal (Meter)Seal (Meter)
-
4269700076 Latch CoverLatch Cover
-
5269000015 Latch BaseLatch Base
-
6269700077 Latch LeverLatch Lever
-
7269700017 Latch SpringLatch Spring
-
8293150074 Pop Rivet 1/4''Pop Rivet 1/4''
-
9234061600 Flat Washer 6 mm, StainlessFlat Washer 6 mm, Stainless
-
10269001053 Cover/foam, Front, Pearl BlueCover/foam, Front, Pearl Blue
-
11269001054 Seat Strap, Pearl BlueSeat Strap, Pearl Blue
-
12293150078 Pop RivetPop Rivet
-
13293720067 GrommetGrommet
-
14269001055 RH Seat Corner, Pearl BlueRH Seat Corner, Pearl Blue
-
15269001056 LH Seat Corner, Pearl BlueLH Seat Corner, Pearl Blue
-
16269001057 RH Front Seat Corner, Pearl BlueRH Front Seat Corner, Pearl Blue
-
17269001058 LH Front Seat Corner, Pearl BlueLH Front Seat Corner, Pearl Blue
-
18413705800 Loctite 414, 29.5 CcLoctite 414, 29.5 Cc
-
19269001244 Rear Seat Ass'y, Pearl Blue. Includes 19 to 32Rear Seat Ass'y, Pearl Blue. Includes 19 to 32
-
21293200062 Seal (Meter)Seal (Meter)
-
22269700076 Latch CoverLatch Cover
-
23269000015 Latch BaseLatch Base
-
24269700017 Latch SpringLatch Spring
-
25269700077 Latch LeverLatch Lever
-
26293150074 Pop Rivet 1/4''Pop Rivet 1/4''
-
27269001062 Cover/foam, Rear, Pearl BlueCover/foam, Rear, Pearl Blue
-
28269001063 RH Seat Corner, Pearl BlueRH Seat Corner, Pearl Blue
-
29269001064 LH Seat Corner, Pearl BlueLH Seat Corner, Pearl Blue
-
30413705800 Loctite 414, 29.5 CcLoctite 414, 29.5 Cc
-
31269500408 StrapStrap
-
32269001065 Seat Corner, Pearl BlueSeat Corner, Pearl Blue
-
33291000945 Seat StudSeat Stud
-
34232100600 Hex Jam Nut M10Hex Jam Nut M10
-
35234002600 Flat Washer 10 mmFlat Washer 10 mm
-
36271000598 Nut Housing Ass'y. Includes 36 to 37Nut Housing Ass'y. Includes 36 to 37
-
37232501600 Hex Elastic Nut M10Hex Elastic Nut M10
-
38293730005 StapleStaple
