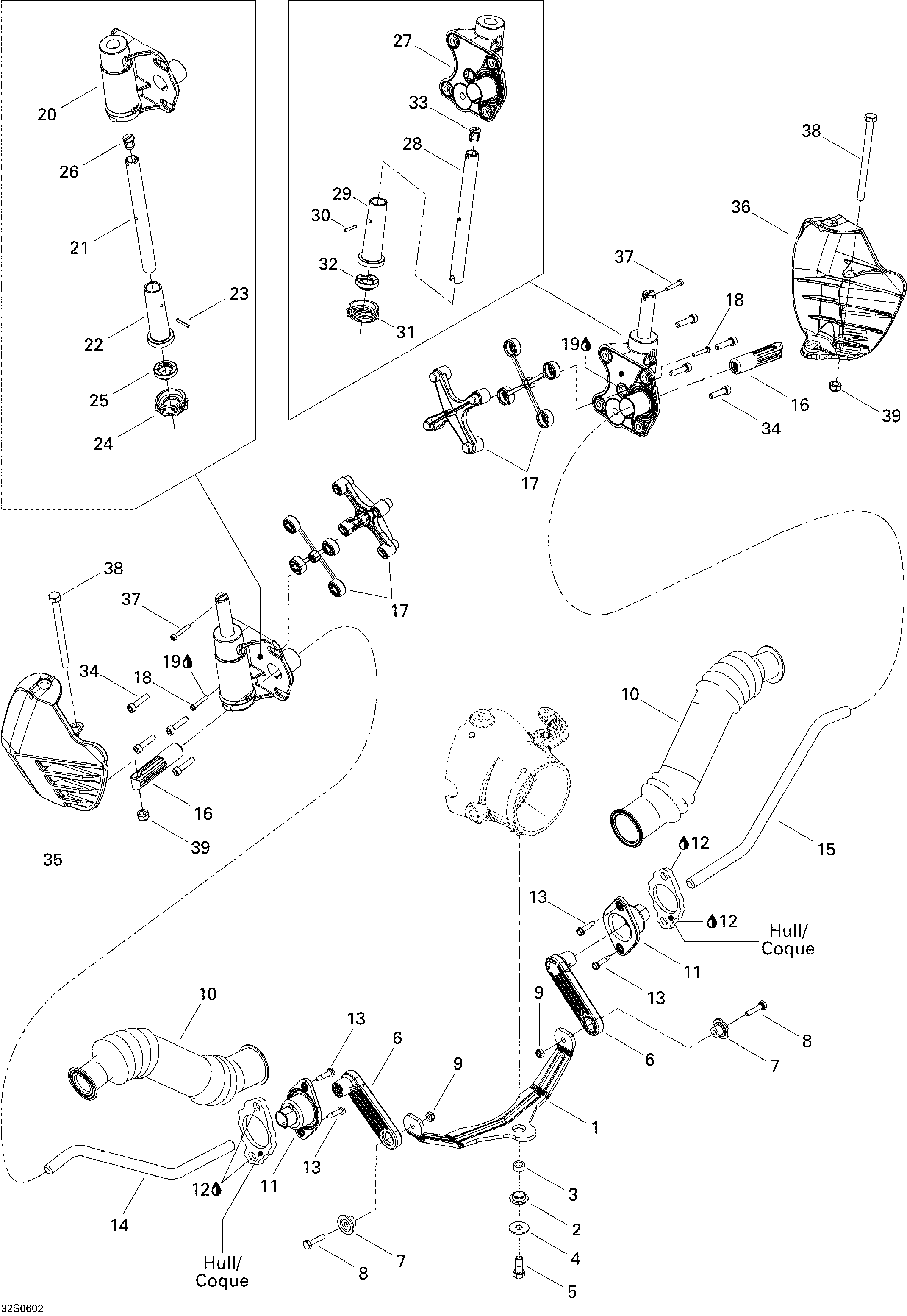

07- Off Power Assisted Steering для BRP GTI SE - 2006
-
№АртикулНазвание
-
1277000979 U LeverU Lever
-
2271000321 Venturi BushingVenturi Bushing
-
3277000980 BushingBushing
-
4234082600 Flat Washer 8 mmFlat Washer 8 mm
-
5207382060 Hex Screw M8 X 20, Scotch GripHex Screw M8 X 20, Scotch Grip
-
6265000013 LeverLever
-
7293900042 Flanged BushingFlanged Bushing
-
8207162560 Hex Screw M6 X 25Hex Screw M6 X 25
-
9232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
10277001123 Seal TubeSeal Tube
-
11277001164 Rod GrommetRod Grommet
-
12296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
13211000023 Hex Flanged Plastite Screw #10 X 7/8''Hex Flanged Plastite Screw #10 X 7/8''
-
14277001404 RH Tie RodRH Tie Rod
-
15277001459 LH Tie RodLH Tie Rod
-
16265000014 Fitting StabilisatorFitting Stabilisator
-
17277001177 Support Plate Ass'ySupport Plate Ass'y
-
18241142560 Hex Flanged Screw K40 X 25Hex Flanged Screw K40 X 25
-
19296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
20265000005 LH Cylinder SupportLH Cylinder Support
-
21277001091 Pivot RodPivot Rod
-
22265000002 SpacerSpacer
-
23250400014 Spring PinSpring Pin
-
24265000009 Threaded CoverThreaded Cover
-
25277000985 Wear RingWear Ring
-
26277001185 Locking InsertLocking Insert
-
27265000003 RH Cylinder SupportRH Cylinder Support
-
28277001091 Pivot RodPivot Rod
-
29265000002 SpacerSpacer
-
30250400014 Spring PinSpring Pin
-
31265000009 Threaded CoverThreaded Cover
-
32277000985 Wear RingWear Ring
-
33277001185 Locking InsertLocking Insert
-
34205562560 Socket Head Screw M6 x 25 (Scotch Grip)Socket Head Screw M6 x 25 (Scotch Grip)
-
35277001486 LH Side VaneLH Side Vane
-
36277001487 RH Side VaneRH Side Vane
-
37205042560 Socket Head Screw M4 X 25Socket Head Screw M4 X 25
-
38250000077 Hex Screw M8 X 110Hex Screw M8 X 110
-
39232581200 Brass Hex Elastic Nut, M8Brass Hex Elastic Nut, M8
