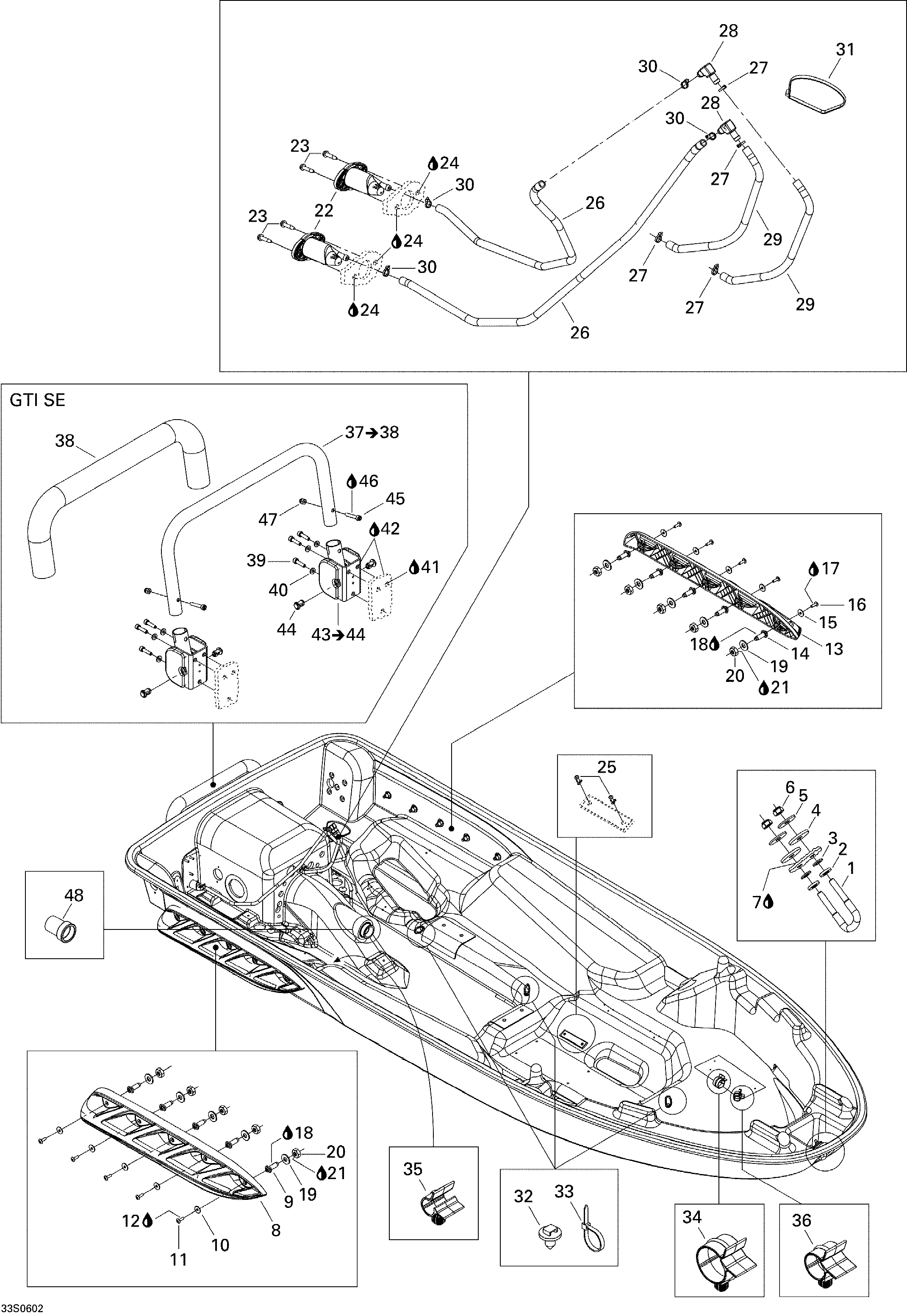

09- Hull GTI SE для BRP GTI SE - 2006
-
№АртикулНазвание
-
1292000933 U-ClampU-Clamp
-
2293050001 Flat WasherFlat Washer
-
3234081100 Flat Washer M8Flat Washer M8
-
4293830037 Rubber WasherRubber Washer
-
5250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
6232581200 Brass Hex Elastic Nut, M8Brass Hex Elastic Nut, M8
-
7296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
8292001036 RH SponsonRH Sponson
-
9292001046 Sponson AdapterSponson Adapter
-
10250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
11250000234 Torx Screw M6 X 20, StainlessTorx Screw M6 X 20, Stainless
-
12293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
13292001037 LH SponsonLH Sponson
-
14292001046 Sponson AdapterSponson Adapter
-
15250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
16250000234 Torx Screw M6 X 20, StainlessTorx Screw M6 X 20, Stainless
-
17293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
18296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
19250200053 Flat Washer M12Flat Washer M12
-
20250100078 Elastic Stop Nut M12Elastic Stop Nut M12
-
21293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
22292001075 Drain Plug Ass'yDrain Plug Ass'y
-
23211000023 Hex Flanged Plastite Screw #10 X 7/8''Hex Flanged Plastite Screw #10 X 7/8''
-
24296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
25293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
26275000007 Hose 8 mmHose 8 mm
-
27293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
28293710057 Elbow Fitting 90°Elbow Fitting 90°
-
29275000007 Hose 8 mmHose 8 mm
-
30293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
31293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
32293730018 Mount DartMount Dart
-
33414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
34275500590 RetainerRetainer
-
35275500528 Hose RetainerHose Retainer
-
36275500527 RetainerRetainer
-
37292001038 Ladder Tube Ass'y. GTI SE, Includes 37 to 38Ladder Tube Ass'y. GTI SE, Includes 37 to 38
-
38292001067 Protective Sleeve. GTI SEProtective Sleeve. GTI SE
-
39250000076 Socket Head Screw M6 X 25, Scotch Grip. GTI SESocket Head Screw M6 X 25, Scotch Grip. GTI SE
-
40234061600 Flat Washer 6 mm. GTI SEFlat Washer 6 mm. GTI SE
-
41296000309 Sealant Silicone, Clear. GTI SESealant Silicone, Clear. GTI SE
-
42293800066 Sealant, Loctite 5900, 300 ml. GTI SESealant, Loctite 5900, 300 ml. GTI SE
-
43292001115 Stair Support. GTI SE, Includes 43 to 44Stair Support. GTI SE, Includes 43 to 44
-
44293150089 Plastic Rivet. GTI SEPlastic Rivet. GTI SE
-
45205063560 Socket Head Screw M6 X 35. GTI SESocket Head Screw M6 X 35. GTI SE
-
46293800060 Loctite 243, 10 ml. GTI SELoctite 243, 10 ml. GTI SE
-
47232361600 Nut M6. GTI SENut M6. GTI SE
-
48292000975 Hull Insert, 41mmHull Insert, 41mm
