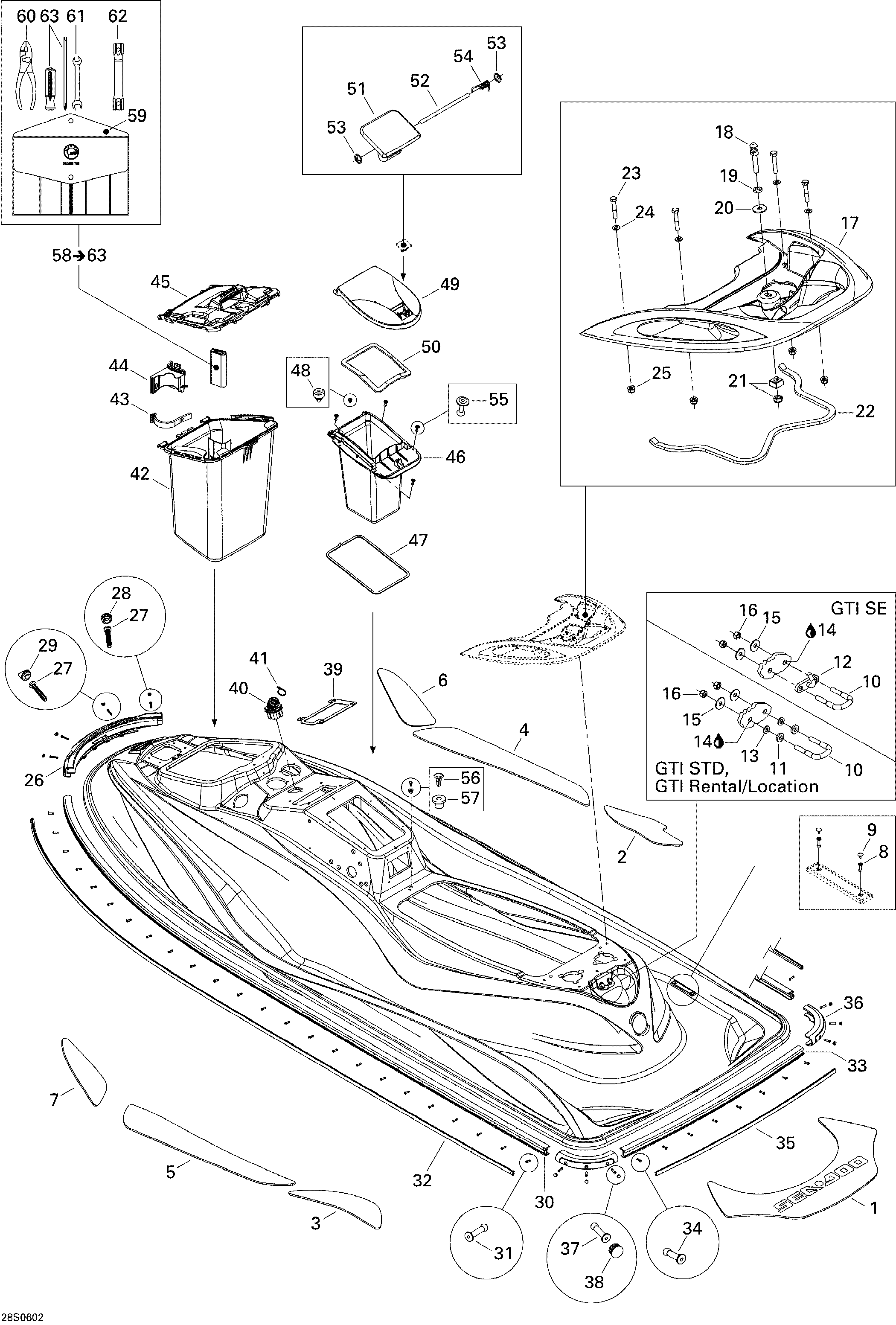

09- Body, Rear View GTI SE для BRP GTI SE - 2006
-
№АртикулНазвание
-
1291002047 Rear Carpet. GTI SERear Carpet. GTI SE
-
2291002379 RH Center Rear Carpet. GTI SERH Center Rear Carpet. GTI SE
-
3291002378 LH Center Rear Carpet. GTI SELH Center Rear Carpet. GTI SE
-
4291002228 RH Center Front Carpet. GTI SERH Center Front Carpet. GTI SE
-
5291002229 LH Center Front Carpet. GTI SELH Center Front Carpet. GTI SE
-
6291002230 RH Front Carpet. GTI SERH Front Carpet. GTI SE
-
7291002231 LH Front Carpet. GTI SELH Front Carpet. GTI SE
-
8293150016 Pop Rivet 1/8''Pop Rivet 1/8''
-
9293000014 Snap CapSnap Cap
-
10292000011 U-clampU-clamp
-
12291002351 Hook. GTI SEHook. GTI SE
-
14296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
15234082600 Flat Washer 8 mmFlat Washer 8 mm
-
16232581200 Brass Hex Elastic Nut, M8Brass Hex Elastic Nut, M8
-
17291002233 Grab HandleGrab Handle
-
18291000945 Seat StudSeat Stud
-
19232100600 Hex Jam Nut M10Hex Jam Nut M10
-
20234002600 Flat Washer 10 mmFlat Washer 10 mm
-
21271000598 Nut Housing Ass'yNut Housing Ass'y
-
22293200003 GasketGasket
-
23207184560 Hex Screw M8 X 45Hex Screw M8 X 45
-
24234081600 Flat Washer 8 mmFlat Washer 8 mm
-
25232581200 Brass Hex Elastic Nut, M8Brass Hex Elastic Nut, M8
-
26291001942 Bumper Nose, BlackBumper Nose, Black
-
27250000236 Torx Screw 10-14 X 1-1/8''Torx Screw 10-14 X 1-1/8''
-
28291001519 Bumper Plug, BlackBumper Plug, Black
-
29291001040 Bumper Plug, BlackBumper Plug, Black
-
30291002240 Side BumperSide Bumper
-
31293150005 Pop Rivet 3/16''Pop Rivet 3/16''
-
32291002241 Side Bumper TrimSide Bumper Trim
-
33291002242 Rear Bumper, BlackRear Bumper, Black
-
34293150005 Pop Rivet 3/16''Pop Rivet 3/16''
-
35291002243 Rear Bumper TrimRear Bumper Trim
-
36291002244 Bumper CornerBumper Corner
-
37293150013 Pop Rivet 3/16''Pop Rivet 3/16''
-
38291000339 Bumper PlugBumper Plug
-
39293250068 GasketGasket
-
40293720042 GrommetGrommet
-
41414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
42269501491 Storage Tray Ass'y. Includes 42 to 44Storage Tray Ass'y. Includes 42 to 44
-
43269501501 Extinguisher SupportExtinguisher Support
-
44269500408 StrapStrap
-
45269501489 Storage Tray CoverStorage Tray Cover
-
46291002248 Glove BoxGlove Box
-
47291002251 GasketGasket
-
48293830005 Rubber PlugRubber Plug
-
49291002249 Glove Box DoorGlove Box Door
-
50291002250 GasketGasket
-
51269500553 Latch, BlackLatch, Black
-
52211400008 PinPin
-
53211100002 Push NutPush Nut
-
54291000922 Spring LatchSpring Latch
-
55293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
56293730024 Dart, FastexDart, Fastex
-
57293720029 GrommetGrommet
-
58294000744 Tool Kit. Includes 58 to 63Tool Kit. Includes 58 to 63
-
61529017300 Fork WrenchFork Wrench
-
62529035731 Socket WrenchSocket Wrench
-
63529019200 Driver ScrewDriver Screw
