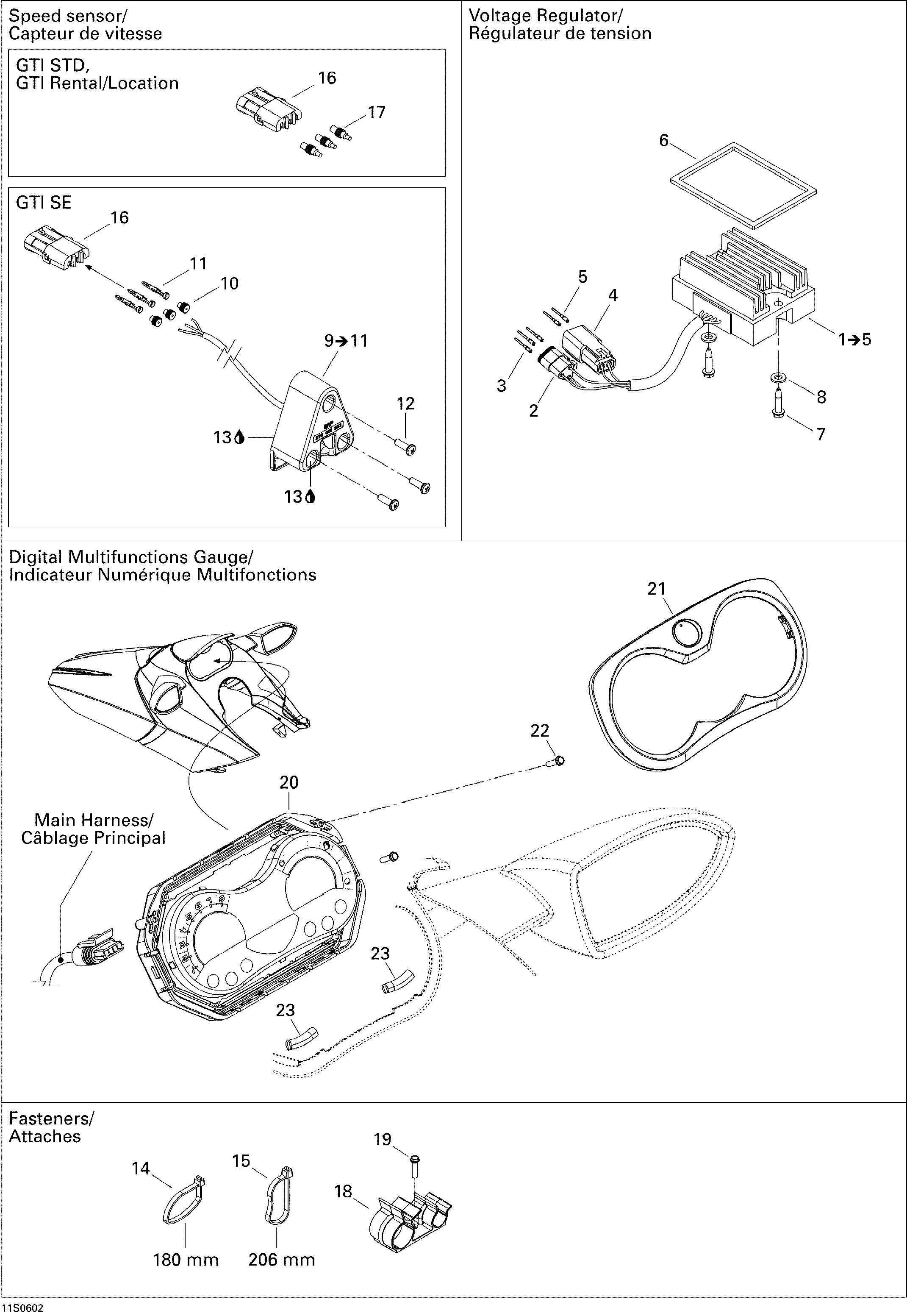

10- Electrical Accessories GTI SE для BRP GTI SE - 2006
-
№АртикулНазвание
-
1278001969 Regulator. Includes 1 to 5Regulator. Includes 1 to 5
-
2409207400 Male Connector, 3 CircuitsMale Connector, 3 Circuits
-
3278000632 Female TerminalFemale Terminal
-
4409206900 Logement Male, 2 CircuitsLogement Male, 2 Circuits
-
5515175567 Female TerminalFemale Terminal
-
6293250123 SealSeal
-
7211000023 Hex Flanged Plastite Screw #10 X 7/8''Hex Flanged Plastite Screw #10 X 7/8''
-
8234061600 Flat Washer 6 mmFlat Washer 6 mm
-
9278001993 Speed Sensor. Includes 9 to 11, GTI SESpeed Sensor. Includes 9 to 11, GTI SE
-
12211000021 Pan Head Phillips Screw 10 X 7/8''. GTI SEPan Head Phillips Screw 10 X 7/8''. GTI SE
-
13296000309 Sealant Silicone, Clear. GTI SESealant Silicone, Clear. GTI SE
-
14414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
15293750027 Tie-Rap 206 mmTie-Rap 206 mm
-
16278000281 Female Connector, 3 CircuitsFemale Connector, 3 Circuits
-
18275500553 RetainerRetainer
-
19241141660 Hex Flanged Screw K40 X 16Hex Flanged Screw K40 X 16
-
20278002070 Digital Mutifuntion GaugeDigital Mutifuntion Gauge
-
21278002135 Gauge BezelGauge Bezel
-
22241142560 Hex Flanged Screw K40 X 25Hex Flanged Screw K40 X 25
-
23293830113 TrimTrim
