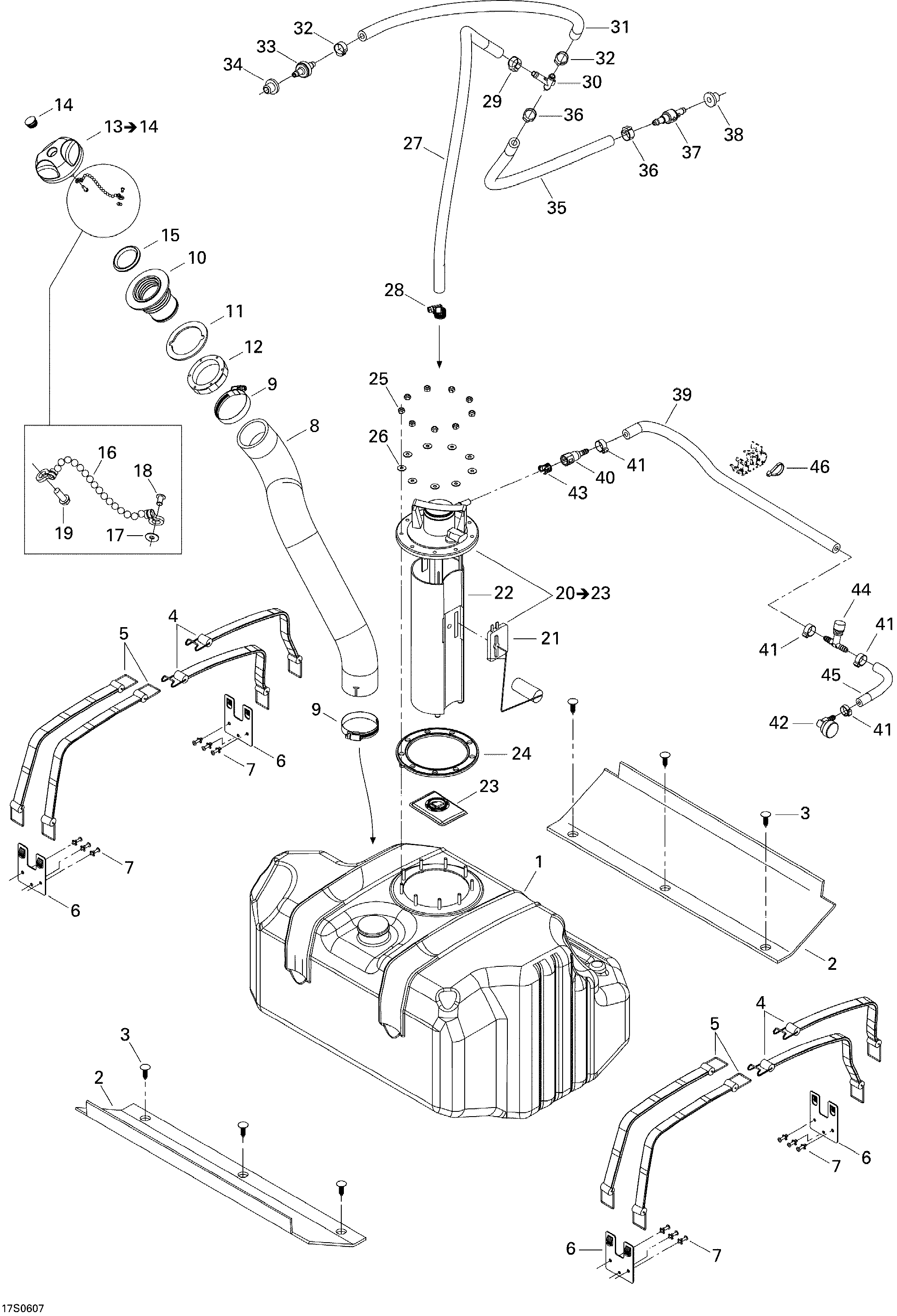

02- Fuel System для BRP GTX 4-TEC LTD - 2006
-
№АртикулНазвание
-
1275500675 Fuel TankFuel Tank
-
2293830094 Rubber PadRubber Pad
-
3293730011 Dart, BlackDart, Black
-
4293850067 Fuel Tank StrapFuel Tank Strap
-
5293850038 Fuel Tank StrapFuel Tank Strap
-
6293850066 Strap ClipStrap Clip
-
7293150043 Pop Rivet 3/16''Pop Rivet 3/16''
-
8275500648 Filler Neck HoseFiller Neck Hose
-
9293650023 Tridon ClampTridon Clamp
-
10275500231 Filler NeckFiller Neck
-
11293250029 GasketGasket
-
12211100012 Fuel Filler Neck NutFuel Filler Neck Nut
-
13275500430 Fuel Cap Ass'y, Black. Includes 13 to 14Fuel Cap Ass'y, Black. Includes 13 to 14
-
14293000034 Snap Cap, BlackSnap Cap, Black
-
15293250075 GasketGasket
-
16275500518 ChainChain
-
17234032600 Flat Washer 3 mmFlat Washer 3 mm
-
18390407900 Pop Rivet 1/8''Pop Rivet 1/8''
-
19241140060 Hex Flanged Screw K40 X 10Hex Flanged Screw K40 X 10
-
20270600056 Fuel Pump Module Ass'y. Includes 20 to 23Fuel Pump Module Ass'y. Includes 20 to 23
-
21270600051 Sensor LeverSensor Lever
-
23219700368 Fuel Filter, BoschFuel Filter, Bosch
-
24293250088 GasketGasket
-
25232551200 Elastic Stop Nut 5 mmElastic Stop Nut 5 mm
-
26234052600 Flat Washer 5 mmFlat Washer 5 mm
-
27275500549 Hose 1/4''Hose 1/4''
-
28293650170 Tridon ClampTridon Clamp
-
29293650025 Oetiker ClampOetiker Clamp
-
30293710059 Y-FittingY-Fitting
-
31275500549 Hose 1/4''Hose 1/4''
-
32293650025 Oetiker ClampOetiker Clamp
-
33275500398 Check ValveCheck Valve
-
34293720029 GrommetGrommet
-
35275500549 Hose 1/4''Hose 1/4''
-
36293650025 Oetiker ClampOetiker Clamp
-
37275500505 Check ValveCheck Valve
-
38293720029 GrommetGrommet
-
39275500626 Hose 5/16''Hose 5/16''
-
40275500428 Connector BoxConnector Box
-
41293650011 Oetiker ClampOetiker Clamp
-
42293710105 Elbow Fitting 90°Elbow Fitting 90°
-
43275500429 Stopper ConnectorStopper Connector
-
44293710112 Bleed ValveBleed Valve
-
45275500626 Hose 5/16''Hose 5/16''
-
46414115200 Tie-Rap 180 mmTie-Rap 180 mm
