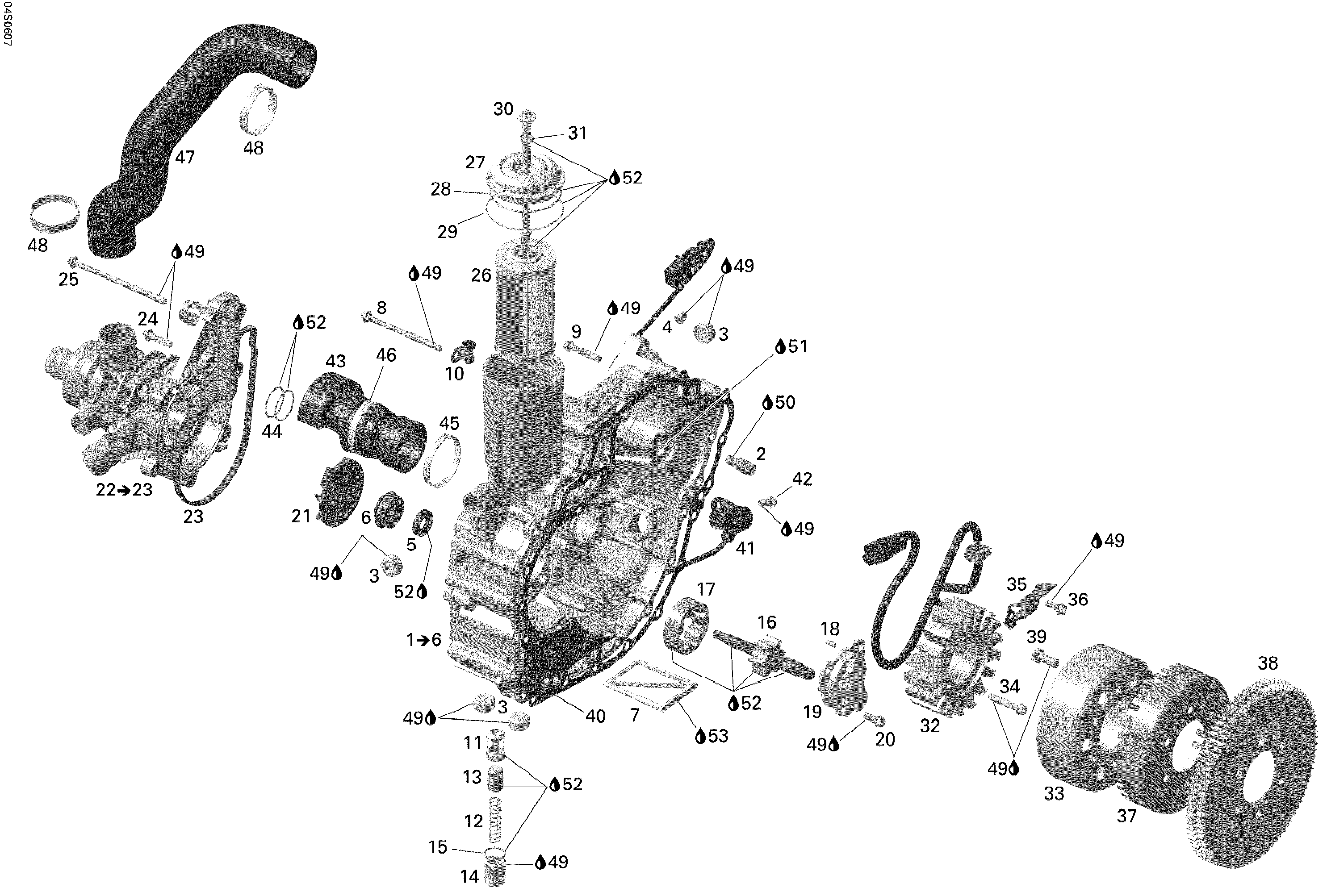

03- PTO Cover And Magneto для BRP GTX 4-TEC LTD - 2006
-
№АртикулНазвание
-
1420812622 Timing/drive Cover Ass'y. Includes 1 to 6Timing/drive Cover Ass'y. Includes 1 to 6
-
2420856012 Spray NozzleSpray Nozzle
-
3420641317 Plug Screw M20 X 1.5Plug Screw M20 X 1.5
-
4420641323 Plug Screw M10Plug Screw M10
-
5420650310 Oil SealOil Seal
-
6420650370 Rotary SealRotary Seal
-
7420956950 Oil SieveOil Sieve
-
8420440347 Torx Flanged Screw M6 X 85Torx Flanged Screw M6 X 85
-
9420440277 Torx Flanged Screw M6 X 35Torx Flanged Screw M6 X 35
-
10420853414 ClampClamp
-
11420256605 Valve Seat SleeveValve Seat Sleeve
-
12420939410 Compression SpringCompression Spring
-
13420256630 Piston ValvePiston Valve
-
14420641051 Plug Screw M20 X 1.5Plug Screw M20 X 1.5
-
15420230890 O-RingO-Ring
-
16420837472 Oil Pump Shaft Ass'yOil Pump Shaft Ass'y
-
17420956675 Outer Rotor 16 mmOuter Rotor 16 mm
-
18420929070 Needle PinNeedle Pin
-
19420811590 Oil Pump CoverOil Pump Cover
-
20420440167 Torx Flanged Screw M6 X 16Torx Flanged Screw M6 X 16
-
21420922801 ImpellerImpeller
-
22420922686 Water Pump Housing Ass'y. Includes 22 to 23Water Pump Housing Ass'y. Includes 22 to 23
-
23420950840 GasketGasket
-
24420641238 Torx Flanged Screw M6 X 25Torx Flanged Screw M6 X 25
-
25420641338 Torx Flanged Screw M6 X 105Torx Flanged Screw M6 X 105
-
26420956741 Oil FilterOil Filter
-
27420610328 Oil Filter CoverOil Filter Cover
-
28420850500 O-RingO-Ring
-
29420230920 O-RingO-Ring
-
30420641105 Hex Screw M8 X 140.5Hex Screw M8 X 140.5
-
31420950860 O-RingO-Ring
-
32420889721 Stator PlateStator Plate
-
33420889711 Magneto FlywheelMagneto Flywheel
-
34420440277 Torx Flanged Screw M6 X 35Torx Flanged Screw M6 X 35
-
35420926300 Retaining PlateRetaining Plate
-
36420440167 Torx Flanged Screw M6 X 16Torx Flanged Screw M6 X 16
-
37420664082 Trigger WheelTrigger Wheel
-
38420834872 Starter GearStarter Gear
-
39420641016 Hex Screw M8 X 20Hex Screw M8 X 20
-
40420931130 GasketGasket
-
41420966570 Crank Position TriggerCrank Position Trigger
-
42420440167 Torx Flanged Screw M6 X 16Torx Flanged Screw M6 X 16
-
43420832648 Ball Bearing With Bellows. Includes 43 to 44Ball Bearing With Bellows. Includes 43 to 44
-
44420631610 O-RingO-Ring
-
45420851653 Gear ClampGear Clamp
-
46420853023 Gear ClampGear Clamp
-
47420922821 Formed HoseFormed Hose
-
48420851683 Gear ClampGear Clamp
-
49293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
50413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
51413707000 Molykote 111, 150 GMolykote 111, 150 G
-
52219700346 Engine Oil 4 Strokes, 10W40, 12 X 1 LEngine Oil 4 Strokes, 10W40, 12 X 1 L
-
53293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
