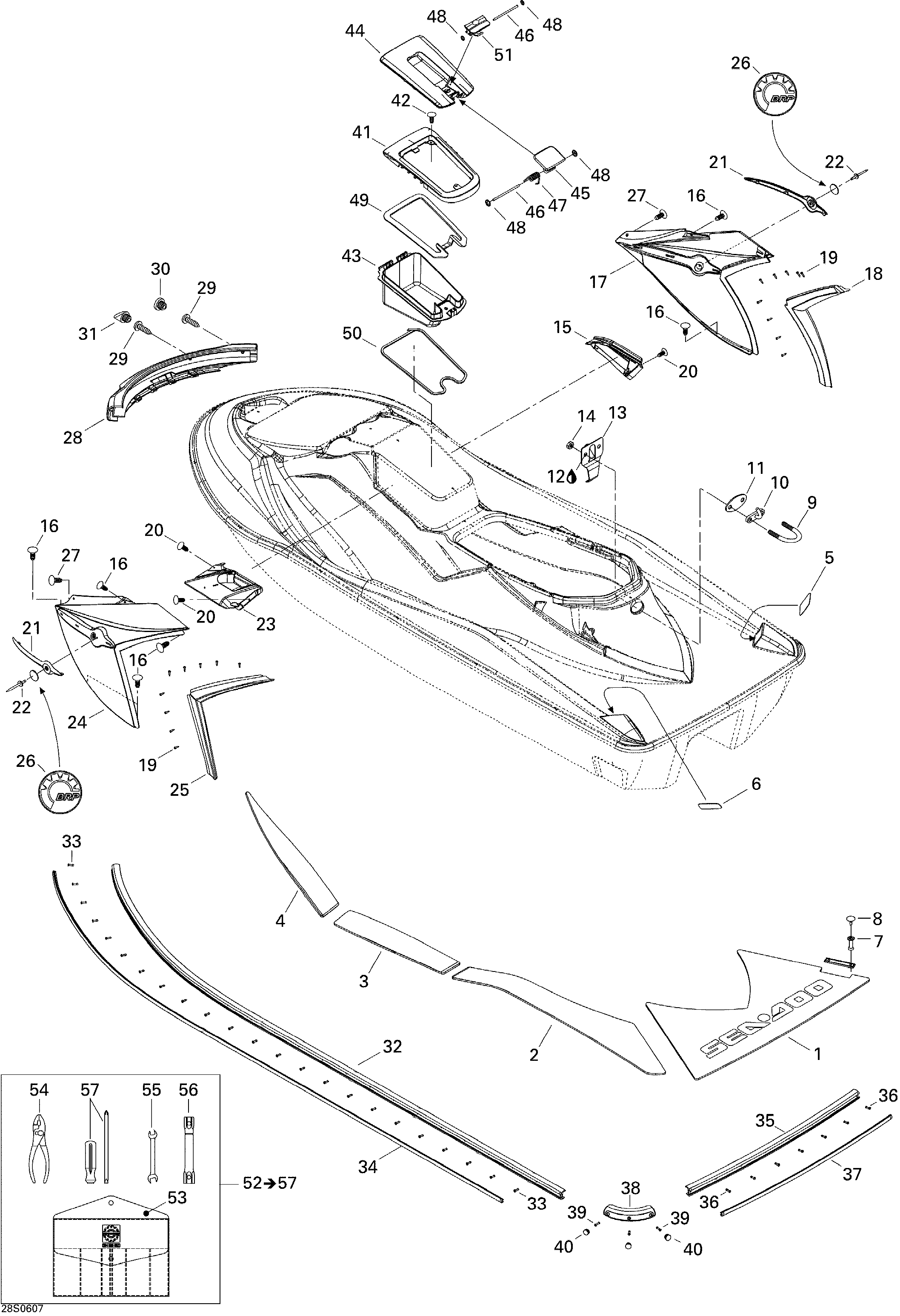

09- Body, Rear View для BRP GTX 4-TEC LTD - 2006
-
№АртикулНазвание
-
1291002316 Rear CarpetRear Carpet
-
2291002382 RH Center Rear CarpetRH Center Rear Carpet
-
2291002383 LH Center Rear CarpetLH Center Rear Carpet
-
3291002384 RH Center Front CarpetRH Center Front Carpet
-
3291002385 LH Center Front CarpetLH Center Front Carpet
-
4291002386 RH Front CarpetRH Front Carpet
-
4291002387 LH Front CarpetLH Front Carpet
-
5291001758 RH Anti-SkidRH Anti-Skid
-
6291001759 LH Anti-SkidLH Anti-Skid
-
7293150016 Pop Rivet 1/8''Pop Rivet 1/8''
-
8293000014 Snap CapSnap Cap
-
9292000011 U-clampU-clamp
-
10291002351 HookHook
-
11291001386 Finition Plate, BlackFinition Plate, Black
-
12296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
13291001747 Retainer PlateRetainer Plate
-
14232581200 Brass Hex Elastic Nut, M8Brass Hex Elastic Nut, M8
-
15269501309 RH Grill, Slate GrayRH Grill, Slate Gray
-
16293730004 Dart, BlackDart, Black
-
17291002321 RH Splash Guard. Starlight BlueRH Splash Guard. Starlight Blue
-
17291002081 RH Splash Guard, Pearl Black. Black PerleRH Splash Guard, Pearl Black. Black Perle
-
18291001784 RH MouldingRH Moulding
-
19209641960 Phillips Tapping Screw M4.2 X 19Phillips Tapping Screw M4.2 X 19
-
20293730006 Dart, BlackDart, Black
-
21269500716 Finition PlateFinition Plate
-
22293150011 Pop Rivet 3/16''Pop Rivet 3/16''
-
23269501310 LH Grill, Slate GrayLH Grill, Slate Gray
-
24291002323 LH Splash Guard. Starlight BlueLH Splash Guard. Starlight Blue
-
24291002080 LH Splash Guard, Pearl Black. Black PerleLH Splash Guard, Pearl Black. Black Perle
-
25291001785 LH MouldingLH Moulding
-
26219902468 BRP Logo, 48 mmBRP Logo, 48 mm
-
27293730010 Dart, BlackDart, Black
-
28291001942 Bumper Nose, BlackBumper Nose, Black
-
29250000236 Torx Screw 10-14 X 1-1/8''Torx Screw 10-14 X 1-1/8''
-
30291001519 Bumper Plug, BlackBumper Plug, Black
-
31291001040 Bumper Plug, BlackBumper Plug, Black
-
32291001609 Side Bumper, BlackSide Bumper, Black
-
33293150005 Pop Rivet 3/16''Pop Rivet 3/16''
-
34291002074 Lateral Bumper Trim. Black PerleLateral Bumper Trim. Black Perle
-
34291002324 Side Trim, Grey. Starlight BlueSide Trim, Grey. Starlight Blue
-
35291001483 Rear Bumper, BlackRear Bumper, Black
-
36293150005 Pop Rivet 3/16''Pop Rivet 3/16''
-
37291002077 Rear Bumper Trim, Metallic Silver. Black PerleRear Bumper Trim, Metallic Silver. Black Perle
-
37291002325 Rear Bumper Trim, Grey. Starlight BlueRear Bumper Trim, Grey. Starlight Blue
-
38291001505 Bumper Corner, BlackBumper Corner, Black
-
39293150013 Pop Rivet 3/16''Pop Rivet 3/16''
-
40291000339 Bumper PlugBumper Plug
-
41269501311 Glove Box TrimGlove Box Trim
-
42293730006 Dart, BlackDart, Black
-
43269501281 Glove BoxGlove Box
-
44269501321 Glove Box Door, Slate GreyGlove Box Door, Slate Grey
-
45269500553 Latch, BlackLatch, Black
-
46211400008 PinPin
-
47291000922 Latch SpringLatch Spring
-
48211100002 Push NutPush Nut
-
49293250146 GasketGasket
-
50293250127 GasketGasket
-
51269501289 Latch (Black)Latch (Black)
-
52294000744 Tool KitTool Kit
-
55529017300 Fork WrenchFork Wrench
-
56529035731 Socket WrenchSocket Wrench
-
57529000004 Driver ScrewDriver Screw
