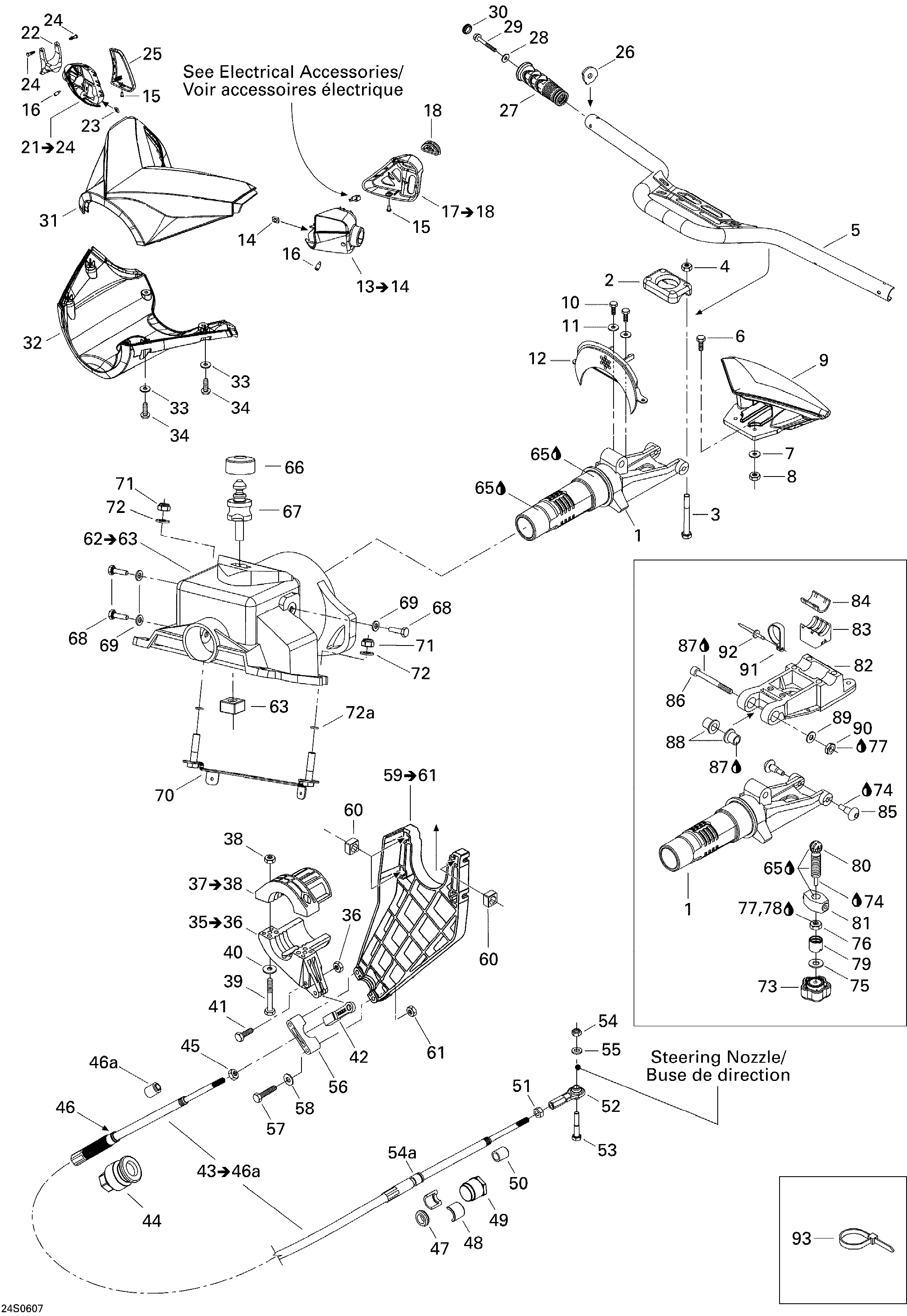

07- Steering System для BRP GTX 4-TEC LTD - 2006
-
№АртикулНазвание
-
1277000758400 Steering StemSteering Stem
-
2277000142 Steering ClampSteering Clamp
-
3207087060 Hex Screw M8 X 70Hex Screw M8 X 70
-
4232581200 Brass Hex Elastic Nut, M8Brass Hex Elastic Nut, M8
-
5277001460 Handle BarHandle Bar
-
6207063060 Hex Screw M6 X 30Hex Screw M6 X 30
-
7234061600 Flat Washer 6 mmFlat Washer 6 mm
-
8232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
9277001361 Handle Pad, Metallic Silver. Black PerleHandle Pad, Metallic Silver. Black Perle
-
9277001436 Handle Pad. Starlight BlueHandle Pad. Starlight Blue
-
10211000036 Hex Flanged Screw 1/4''-20 X 1/2''Hex Flanged Screw 1/4''-20 X 1/2''
-
11234062600 Flat Washer 6 mmFlat Washer 6 mm
-
12277000766 Plate, BlackPlate, Black
-
13277001481 Housing Ass'y. Includes 13 to 14Housing Ass'y. Includes 13 to 14
-
14232860600 Square Nut M6Square Nut M6
-
15209630960 Phillips Screw M3.9 X 9.5Phillips Screw M3.9 X 9.5
-
16250000036 Socket Head Screw M6Socket Head Screw M6
-
17277001447 Cover Housing Ass'y. Includes 17 to 18Cover Housing Ass'y. Includes 17 to 18
-
18278001713 Stop KnobStop Knob
-
21277001483 Throttle Housing Ass'y. Includes 21 to 24Throttle Housing Ass'y. Includes 21 to 24
-
22277001485 Throttle HandleThrottle Handle
-
23232860600 Square Nut M6Square Nut M6
-
24277000381 PinPin
-
25277001355 Housing CoverHousing Cover
-
26277000554 Handle Grip InsertHandle Grip Insert
-
27277001336 Handle Grip, Slate GreyHandle Grip, Slate Grey
-
28234062600 Flat Washer 6 mmFlat Washer 6 mm
-
29250000002 Hex Screw M6 X 30, Scotch GripHex Screw M6 X 30, Scotch Grip
-
30277000203 Grip CapGrip Cap
-
31277001337 Upper Steering Cover, Slate GreyUpper Steering Cover, Slate Grey
-
32277001338 Lower Steering Cover, Slate GreyLower Steering Cover, Slate Grey
-
33234051600 Flat Washer 5 mmFlat Washer 5 mm
-
34241141660 Hex Flanged Screw K40 X 16Hex Flanged Screw K40 X 16
-
35277001472 Steering Stem Arm. Includes 35 to 36Steering Stem Arm. Includes 35 to 36
-
36232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
37277001473 Arm Thrust. Includes 37 to 38Arm Thrust. Includes 37 to 38
-
38232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
39207162560 Hex Screw M6 X 25Hex Screw M6 X 25
-
40234062600 Flat Washer 6 mmFlat Washer 6 mm
-
41211000081 Hex Screw M6 X 30Hex Screw M6 X 30
-
42277001180 Ball JointBall Joint
-
43277001438 Steering Cable. Includes 43 to 46a, Order 1 more item 50 and 54aSteering Cable. Includes 43 to 46a, Order 1 more item 50 and 54a
-
44277000782 Ajustment KnobAjustment Knob
-
45211100056 Hex Nut 1/4''-28Hex Nut 1/4''-28
-
46277000849 WiperWiper
-
46a277000846 Large BootLarge Boot
-
47293830063 Rubber WasherRubber Washer
-
48277000783 Half-RingHalf-Ring
-
49277000784 Steering Cable LockSteering Cable Lock
-
50277000849 Small BootSmall Boot
-
51211100056 Hex Nut 1/4''-28Hex Nut 1/4''-28
-
52277000775 Ball JointBall Joint
-
53207063560 Hex Screw M6 X 35Hex Screw M6 X 35
-
54232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
54a277000846 Large BootLarge Boot
