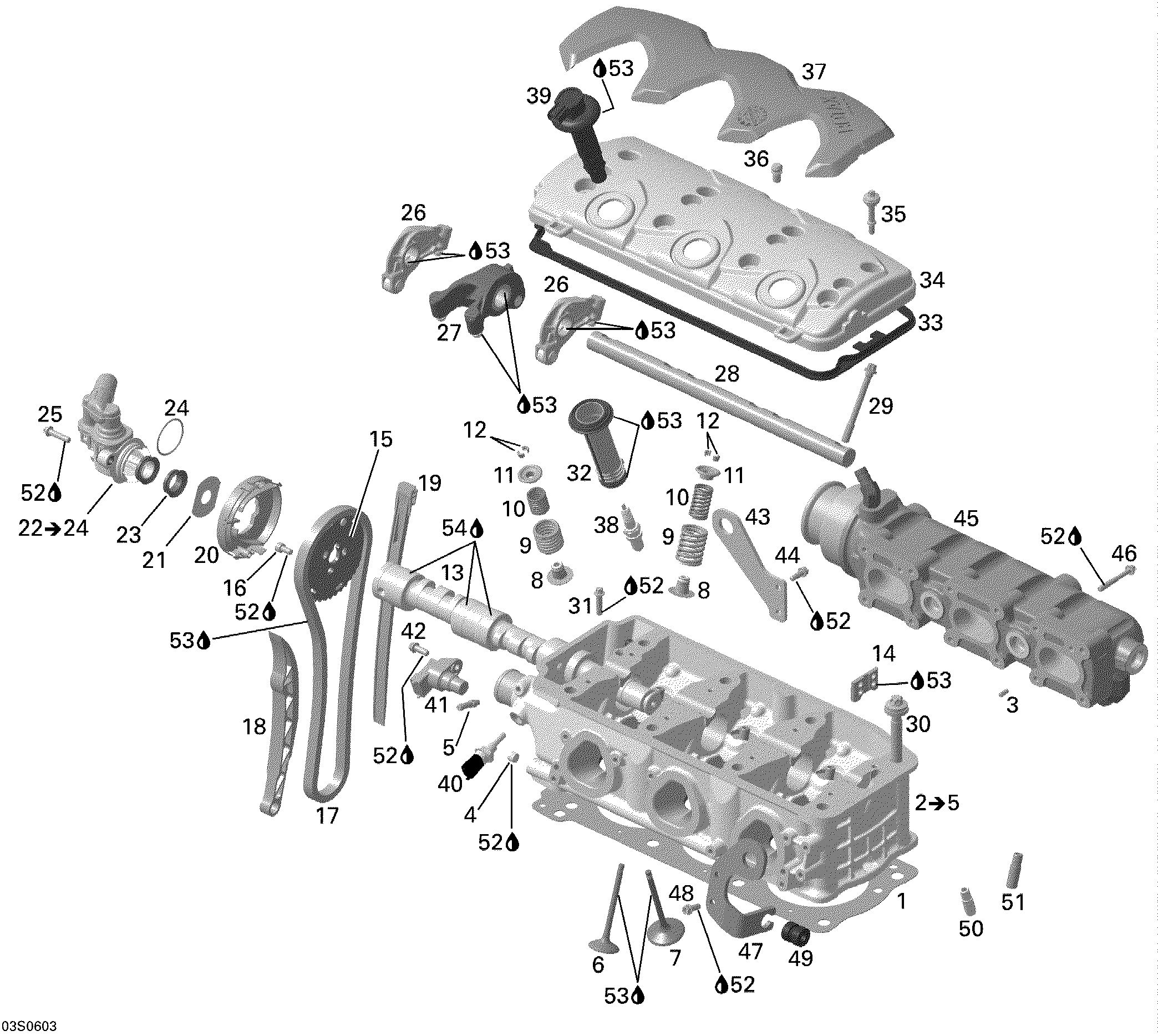

01- Cylinder Head для BRP GTX 4-TEC SC - 2006
-
№АртикулНазвание
-
1420950770 Cylinder Head GasketCylinder Head Gasket
-
2420613978 Cylinder Head Ass'y. Incldues 2 to 5Cylinder Head Ass'y. Incldues 2 to 5
-
3420929650 Drive Pin 5 X 10Drive Pin 5 X 10
-
4420641323 Plug Screw M10Plug Screw M10
-
5420924720 Hose NippleHose Nipple
-
6295501047 Exhaust Valve Kit. 6 Valves per package. Always replace complete valve set.Exhaust Valve Kit. 6 Valves per package. Always replace complete valve set.
-
7420254293 Intake Valve, 38 mmIntake Valve, 38 mm
-
8420630200 Valve StemValve Stem
-
9420238180 Valve SpringValve Spring
-
10420838280 Valve Inside SpringValve Inside Spring
-
11420254281 Valve Spring RetainerValve Spring Retainer
-
12420253645 Cotter ValveCotter Valve
-
13420837629 CamshaftCamshaft
-
14420851692 Camshaft GuideCamshaft Guide
-
15420254307 Timing Gear 38 TeethTiming Gear 38 Teeth
-
16420840031 Socket Head Screw M6 X 12Socket Head Screw M6 X 12
-
17420898040 Camshaft ChainCamshaft Chain
-
18420236541 Chain Tension GuideChain Tension Guide
-
19420236501 Chain GuideChain Guide
-
20420660037 CoverCover
-
21420627494 Thrust WasherThrust Washer
-
22420856500 Vent ValveVent Valve
-
23420630125 V-ringV-ring
-
24420950870 O-RingO-Ring
-
25420641238 Torx Flanged Screw M6 X 25Torx Flanged Screw M6 X 25
-
26420254329 Rocker Arm, ExhaustRocker Arm, Exhaust
-
27420254316 Rocker Arm, InnerRocker Arm, Inner
-
28420854594 Rocker Arm, ShaftRocker Arm, Shaft
-
29420641080 Torx Screw M8 X 72Torx Screw M8 X 72
-
30420641110 Torx Flanged Screw M11 X 147Torx Flanged Screw M11 X 147
-
31420440237 Torx Flanged Screw M6 X 25Torx Flanged Screw M6 X 25
-
32420851751 Spark Plug PipeSpark Plug Pipe
-
33420950820 Valve Cover GasketValve Cover Gasket
-
34420811585 Valve CoverValve Cover
-
35420440567 Torx Screw M6 X 30Torx Screw M6 X 30
-
36420641488 Torx Screw M6 X 10Torx Screw M6 X 10
-
37420660164 Valve CoverValve Cover
-
38707000246 Spark Plug NGK Dcp-r8eSpark Plug NGK Dcp-r8e
-
39420664020 Ignition CoilIgnition Coil
-
40420222425 Temperature SensorTemperature Sensor
-
41420664040 Camshaft SensorCamshaft Sensor
-
42420440167 Torx Flanged Screw M6 X 16Torx Flanged Screw M6 X 16
-
43420851616 Transport Bracket PTOTransport Bracket PTO
-
44420440167 Torx Flanged Screw M6 X 16Torx Flanged Screw M6 X 16
-
45420673290 Exhaust ManifoldExhaust Manifold
-
46420440327 Torx Flanged Screw M6 X 45Torx Flanged Screw M6 X 45
-
47420851614 Transport Bracket FrontTransport Bracket Front
-
48420440167 Torx Flanged Screw M6 X 16Torx Flanged Screw M6 X 16
-
49420660090 Rubber BracketRubber Bracket
-
50420253924 Valve GuideValve Guide
-
51420253924 Valve GuideValve Guide
-
52293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
53219700346 Engine Oil 4 Strokes, 10W40, 12 X 1 LEngine Oil 4 Strokes, 10W40, 12 X 1 L
-
54293550021 Isoflex Grease, 50 G, Topas Nb52Isoflex Grease, 50 G, Topas Nb52
