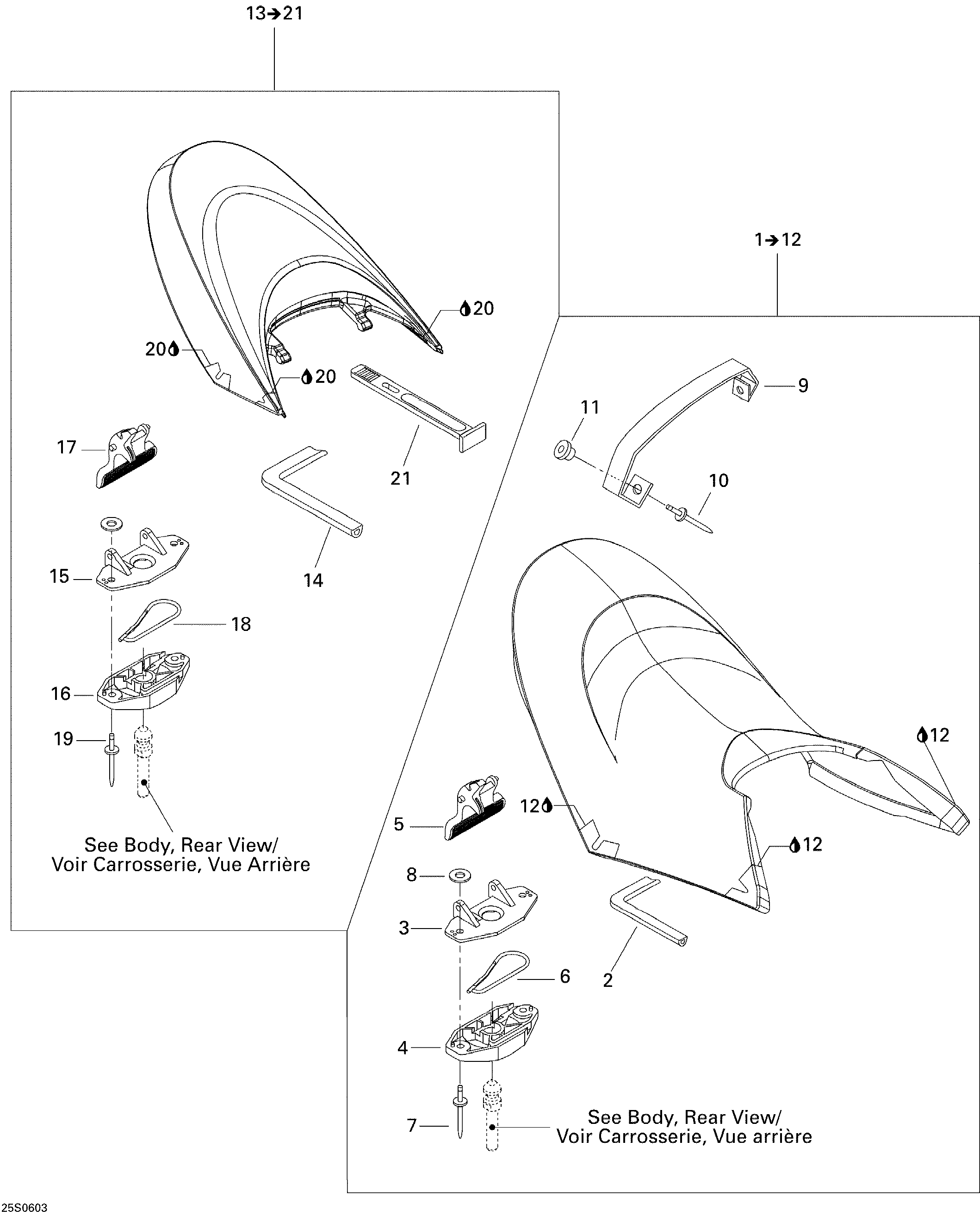

09- Seat для BRP GTX 4-TEC SC - 2006
-
№АртикулНазвание
-
1269001333 Seat Ass'y. Includes 1 to 12Seat Ass'y. Includes 1 to 12
-
2293200107 Seal (meter)Seal (meter)
-
3269700076 Latch CoverLatch Cover
-
4269000015 Latch BaseLatch Base
-
5269700077 Latch LeverLatch Lever
-
6269700017 Latch SpringLatch Spring
-
7293150074 Pop Rivet 1/4''Pop Rivet 1/4''
-
8234061600 Flat Washer 6 mmFlat Washer 6 mm
-
9269001335 Seat StrapSeat Strap
-
10293150067 RivetRivet
-
11293720067 GrommetGrommet
-
12413705800 Loctite 414, 29.5 CcLoctite 414, 29.5 Cc
-
13269001352 Seat Ass'y. Includes 13 to 21Seat Ass'y. Includes 13 to 21
-
14293200107 Seal (meter)Seal (meter)
-
15269700076 Latch CoverLatch Cover
-
16269000015 Latch BaseLatch Base
-
17269700077 Latch LeverLatch Lever
-
18269700017 Latch SpringLatch Spring
-
19293150074 Pop Rivet 1/4''Pop Rivet 1/4''
-
20413705800 Loctite 414, 29.5 CcLoctite 414, 29.5 Cc
-
21269500408 StrapStrap
