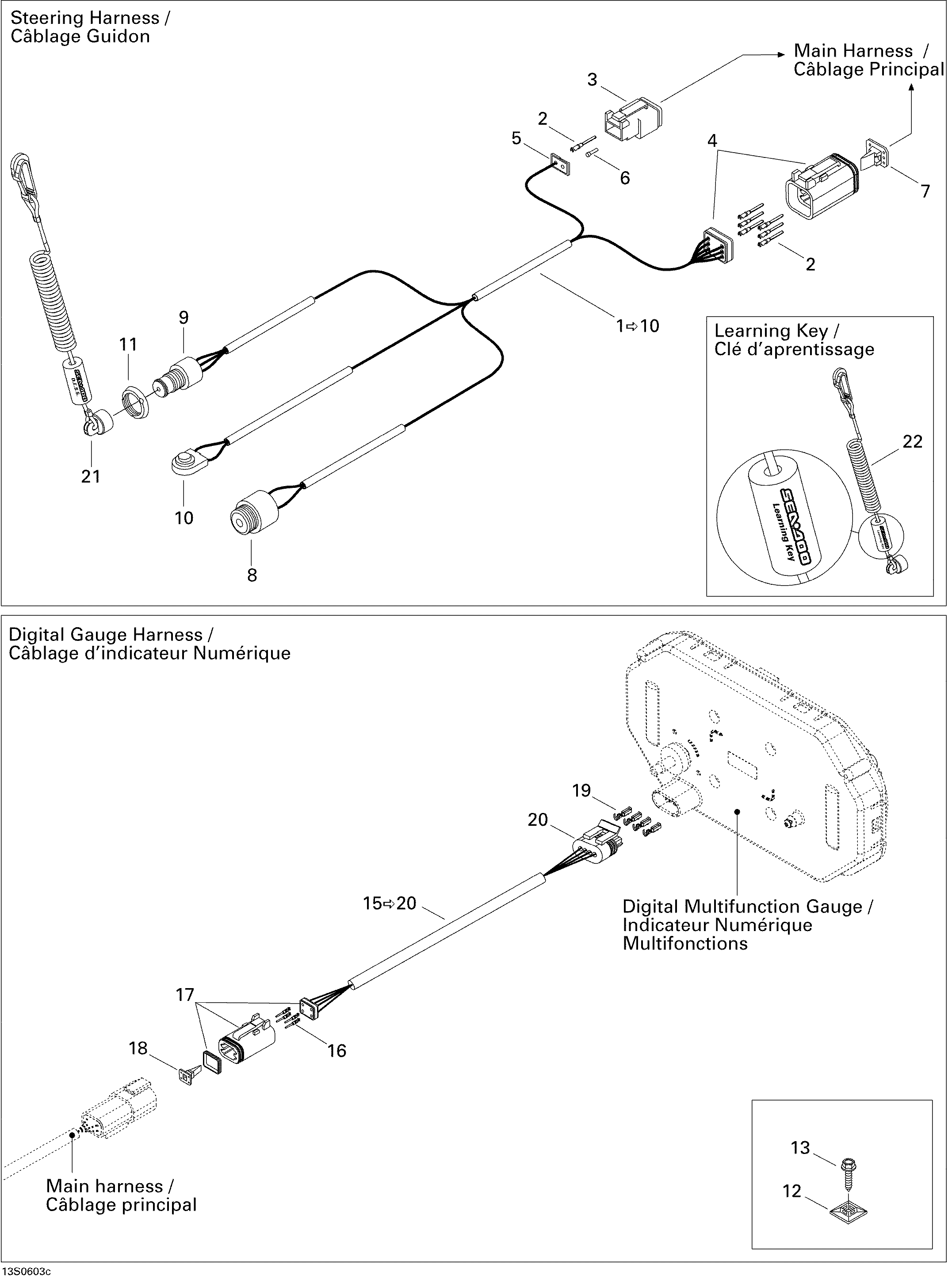

10- Electrical Harness для BRP GTX 4-TEC SC - 2006
-
№АртикулНазвание
-
1278002112 Steering Harness Ass'ySteering Harness Ass'y
-
2278000632 Female TerminalFemale Terminal
-
3409207300 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
4278000736 Male Connector, 6 CircuitsMale Connector, 6 Circuits
-
5409207100 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
6293000052 Seal PlugSeal Plug
-
7278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
8278001586 BuzzerBuzzer
-
9278001734 Emergency SwitchEmergency Switch
-
10278001733 Start/Stop SwitchStart/Stop Switch
-
11278000508 Safety Switch NutSafety Switch Nut
-
12293750026 Tie Rap MountTie Rap Mount
-
13241141360 Hex Flanged Screw K40 X 13Hex Flanged Screw K40 X 13
-
15278002111 Digital Multifunction Gauge HarnessDigital Multifunction Gauge Harness
-
16278000632 Female TerminalFemale Terminal
-
17278000739 Male Connector, 4 CircuitsMale Connector, 4 Circuits
-
18278000738 Secondary Lock, 4 CircuitsSecondary Lock, 4 Circuits
-
19278001114 Female TerminalFemale Terminal
-
20278001308 Male Connector, 4 CircuitsMale Connector, 4 Circuits
-
21278002150 Safety Lanyard, D.e.s.s.Safety Lanyard, D.e.s.s.
-
22278002152 Safety Lanyard, Learning KeySafety Lanyard, Learning Key
