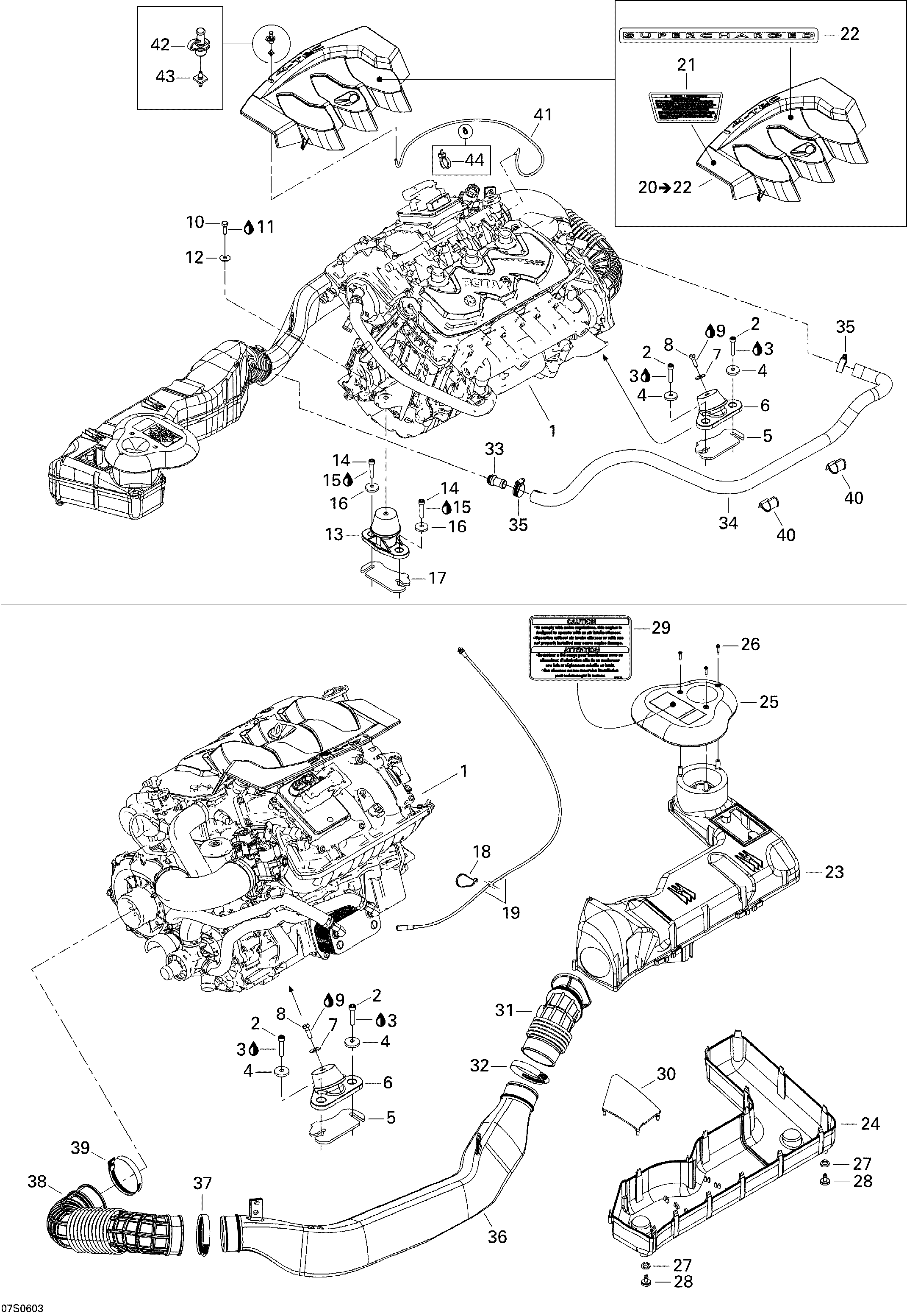

01- Engine And Air Intake Silencer для BRP GTX 4-TEC SC - 2006
-
№АртикулНазвание
-
1270000640 Rotax Engine 4 Stokes «1503 SC»Rotax Engine 4 Stokes «1503 SC»
-
2205084060 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
3293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
4250200018 Conical WasherConical Washer
-
5270000446 Shim 1.3 mmShim 1.3 mm
-
6270000688 Rubber MountRubber Mount
-
7234082600 Flat Washer 8 mmFlat Washer 8 mm
-
8207182560 Hex Screw M8 X 25Hex Screw M8 X 25
-
9293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
10207182560 Hex Screw M8 X 25Hex Screw M8 X 25
-
11293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
12234082600 Flat Washer 8 mmFlat Washer 8 mm
-
13270000690 Rubber MountRubber Mount
-
14205084060 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
15293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
16250200018 Conical WasherConical Washer
-
17270000446 Shim 1.3 mmShim 1.3 mm
-
18414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
19277001121 Throttle CableThrottle Cable
-
20270000678 Cover Ass'y. Includes 20 to 22Cover Ass'y. Includes 20 to 22
-
21219902674 Warning Decal, MotorWarning Decal, Motor
-
22219902675 Identification Decal, Motor BvIdentification Decal, Motor Bv
-
23273000222 Upper Air SilencerUpper Air Silencer
-
24273000190 Air Silencer LowerAir Silencer Lower
-
25273000192 Air Silencer CoverAir Silencer Cover
-
26241141660 Hex Flanged Screw K40 X 16Hex Flanged Screw K40 X 16
-
27293720064 GrommetGrommet
-
28275500454 Check ValveCheck Valve
-
29219902673 Instruction Label, Air SilencerInstruction Label, Air Silencer
-
30273000206 DeflectorDeflector
-
31273000186 Intake HoseIntake Hose
-
32293650064 Tridon ClampTridon Clamp
-
33273000195 BreatherBreather
-
34270000629 Formed HoseFormed Hose
-
35293650051 Tridon Gear ClampTridon Gear Clamp
-
36273000214 Intake HoseIntake Hose
-
37293650107 Tridon ClampTridon Clamp
-
38273000188 Intake HoseIntake Hose
-
39293650107 Tridon ClampTridon Clamp
-
40275500664 RetainerRetainer
-
41270000469 Hose 3 mmHose 3 mm
-
42293830115 Grommet CapGrommet Cap
-
43293710107 ConnectorConnector
-
44293750001 Tie-Rap 94 mmTie-Rap 94 mm
