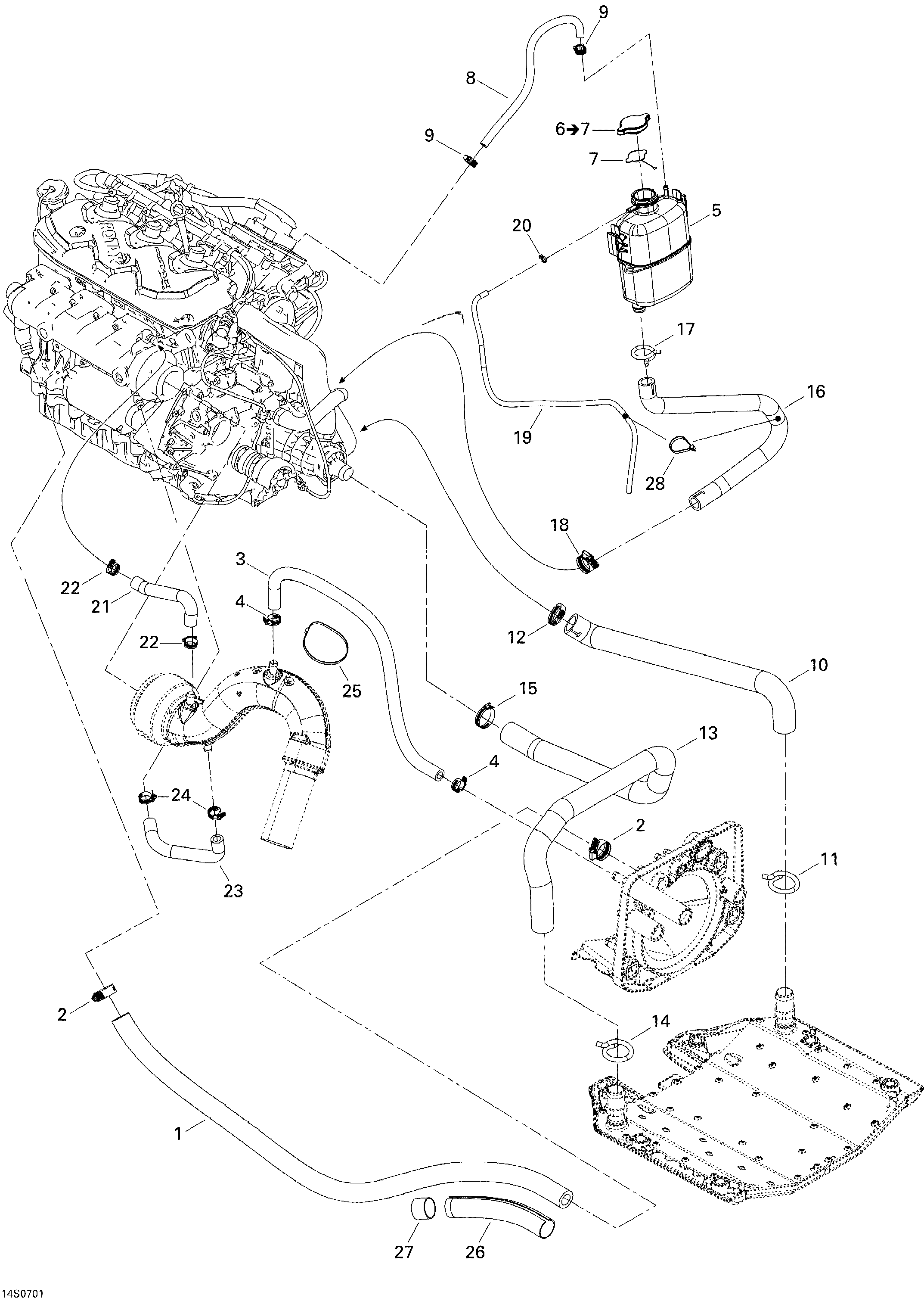

01- Cooling System для BRP GTX STD & Wake - 2007
-
№АртикулНазвание
-
1276000158 Hose 19 mmHose 19 mm
-
2293650051 Tridon Gear ClampTridon Gear Clamp
-
3276000151 Hose 12.5 mmHose 12.5 mm
-
4293650172 Tridon ClampTridon Clamp
-
5276000086 Coolant TankCoolant Tank
-
6276000100 Pressure Cap Ass'y. Includes 6 to 7Pressure Cap Ass'y. Includes 6 to 7
-
7276000127 LatchLatch
-
8275500549 Hose 1/4''Hose 1/4''
-
9293650170 Hose ClampHose Clamp
-
10276000153 RH Radiator HoseRH Radiator Hose
-
11293650114 Spring ClampSpring Clamp
-
12293650045 Tridon Gear ClampTridon Gear Clamp
-
13276000154 LH Radiator HoseLH Radiator Hose
-
14293650114 Spring ClampSpring Clamp
-
15293650045 Tridon Gear ClampTridon Gear Clamp
-
16276000143 Formed Return HoseFormed Return Hose
-
17293650115 Spring ClampSpring Clamp
-
18293650019 Tridon ClampTridon Clamp
-
19415080200 Polyurethane HosePolyurethane Hose
-
20293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
21276000155 Formed HoseFormed Hose
-
22293650172 Tridon ClampTridon Clamp
-
23276000156 Formed HoseFormed Hose
-
24293650172 Tridon ClampTridon Clamp
-
25293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
26409902200 Tubing 25 mmTubing 25 mm
-
27276000125 Shrink TubingShrink Tubing
-
28414115200 Tie-Rap 180 mmTie-Rap 180 mm
